AP10LED Manager Guide
Manager Guide
This User Guide tells you how to operate your intruder alarm system. To simplify this User Guide
we have assumed that the alarm system has been installed by a professional intruder alarm system
installer (the installer), and that the system is operated in a "typical" way. Aspects of your system
that are not "typical" will be described by your installer.
NOTE: If you have any questions about your intruder alarm system, then consult your installer,
see contact details at the front of this User Guide.

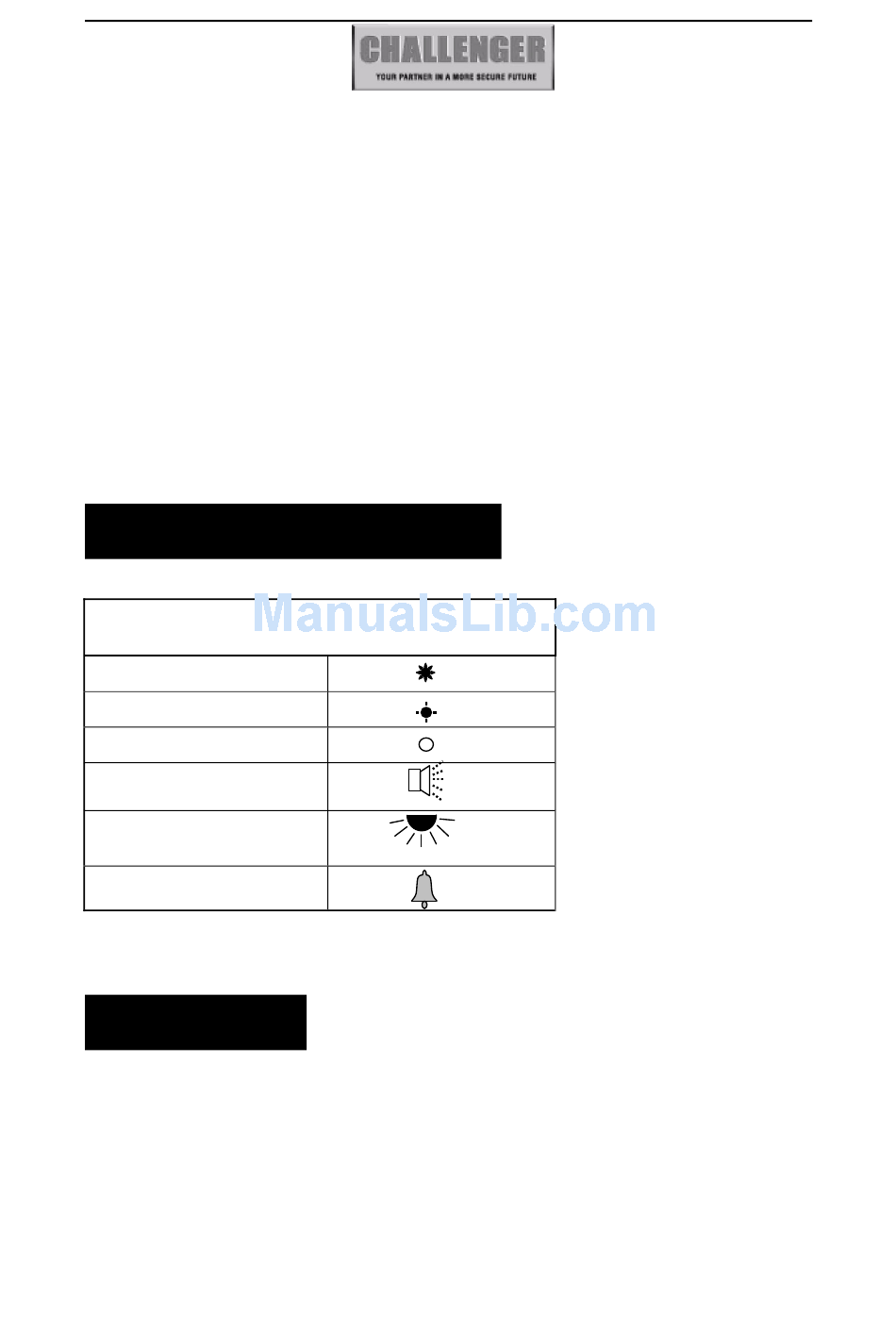

Indications on the system
Indications
LED steady on indication
LED flashing indication
LED off
Internal Sound
External Device: Strobe
External Siren: Bell
Using System
After you had finish system settings, you can use the system now. This section gives an operation
of how to set and unset the system as well as how to reset after an alarm.
1
Advertisement
Table of Contents
Related Manuals for Challenger AP10LED
Summary of Contents for Challenger AP10LED
-
Page 1: Manager Guide
AP10LED Manager Guide Manager Guide This User Guide tells you how to operate your intruder alarm system. To simplify this User Guide we have assumed that the alarm system has been installed by a professional intruder alarm system installer (the installer), and that the system is operated in a “typical” way. Aspects of your system that are not “typical”... -
Page 2: Table Of Contents
AP10LED Manager Guide Table of Contents MANAGER GUIDE......................1 INDICATIONS ON THE SYSTEM ..................1 USING SYSTEM........................1 TABLE OF CONTENTS ......................2 How to Set the System ........................3 How to OMIT a zone(s) ........................4 Unsetting the System........................4 How to UNSET from Alarm and RESET the system..............5 How to use Panic Alarm on keypad....................5... -
Page 3: How To Set The System
AP10LED Manager Guide How to Set the System Full Set When you leave your premises you will need to set (or turn on) the intruder alarm system. Before setting the system you should ensure that the premises have been completely vacated and that all doors and windows are closed. -
Page 4: How To Omit A Zone(S)
AP10LED Manager Guide How to OMIT a zone(s) If you cannot set the alarm system because a detector is faulty and in constant alarm you may need to omit zones from the alarm system. A zone which has been omitted cannot cause an alarm. -
Page 5: How To Unset From Alarm And Reset The System
AP10LED Manager Guide How to UNSET from Alarm and RESET the system You can unset the system in SET and reset it after an alarm, Tamper or PA. The system will be programmed to be reset by the user or engineer. This is dependent on System flags set up. -
Page 6: How To Go Into Manager Program Mode
AP10LED Manager Guide How to go into Manager Program Mode · S ystem work in Day mode 1 2 3 4 5 6 7 8 9 10 TAMP · G o into Manager Menu. 1 2 3 4 5 6 7 8 9 10... - Page 7 AP10LED Manager Guide How to change Manager’s Code This option allows each of the users to be given a code. 1 2 3 4 5 6 7 8 9 10 Under Manager Menu. · P ress to select Setup User codes.
- Page 8 AP10LED Manager Guide How to delete User Code Under Manager Menu. 1 2 3 4 5 6 7 8 9 10 · P ress to select Setup User codes. TAMP 1 2 3 4 5 6 7 8 9 10 ·...
-
Page 9: View Event Log
AP10LED Manager Guide 2 = View Event Log The event log gives a display of all the events that have taken place. The events are arranged by date and time. Up to 16 events can be stored in the memory. When the log reaches 16 events and another event takes place, the first event drops out. -
Page 10: How To Authorize Engineer Access
AP10LED Manager Guide 3 = How to Authorize engineer access For the engineer to have access to the system the Manager will need to authorize Engineer access to the control panel. · E nter Manager program mode. 1 2 3 4 5 6 7 8 9 10 ·... -
Page 11: Test System
AP10LED Manager Guide 9 = Test System This function has three parts in Test System: Test output, Walk Test, View Walk Test. How to Test Outputs The test outputs are: 0 = BELL, 1 = Strobe, 2 = Speaker, Under Manager Menu. -
Page 12: How To Exit Manager Program Menu
AP10LED Manager Guide How to enter Walk Test The walk test function allows check each Zone trigger, Zone tamper, Detector Tamper, Control panel tamper, Bell Box tamper, Remote Keypad tamper. if order to verify that they are functioning correctly. A tone is generated as each zone or tamper is activated (opened). - Page 13 AP10LED Manager Guide Appendix 2 – Zone - Location & Programming Table Zone Type i.e. Full Part Part Location E/E/Alarm/PA Set 1 Set 2 Exit Time Entry Time Timed, Final Door, Silent Exit, Terminated, Exit Mode Disabled Time Flag 2...
- Page 14 Due to our policy of continuous improvement we reserve the right to change specification without prior notice. Errors and omissions excepted. These instructions have been carefully checked prior to publication. However, no responsibility can be accepted by Challenger Security Products for any misinterpretation of these instructions. CHALLENGER SECURITY PRODUCTS 10 Sandersons Way...
