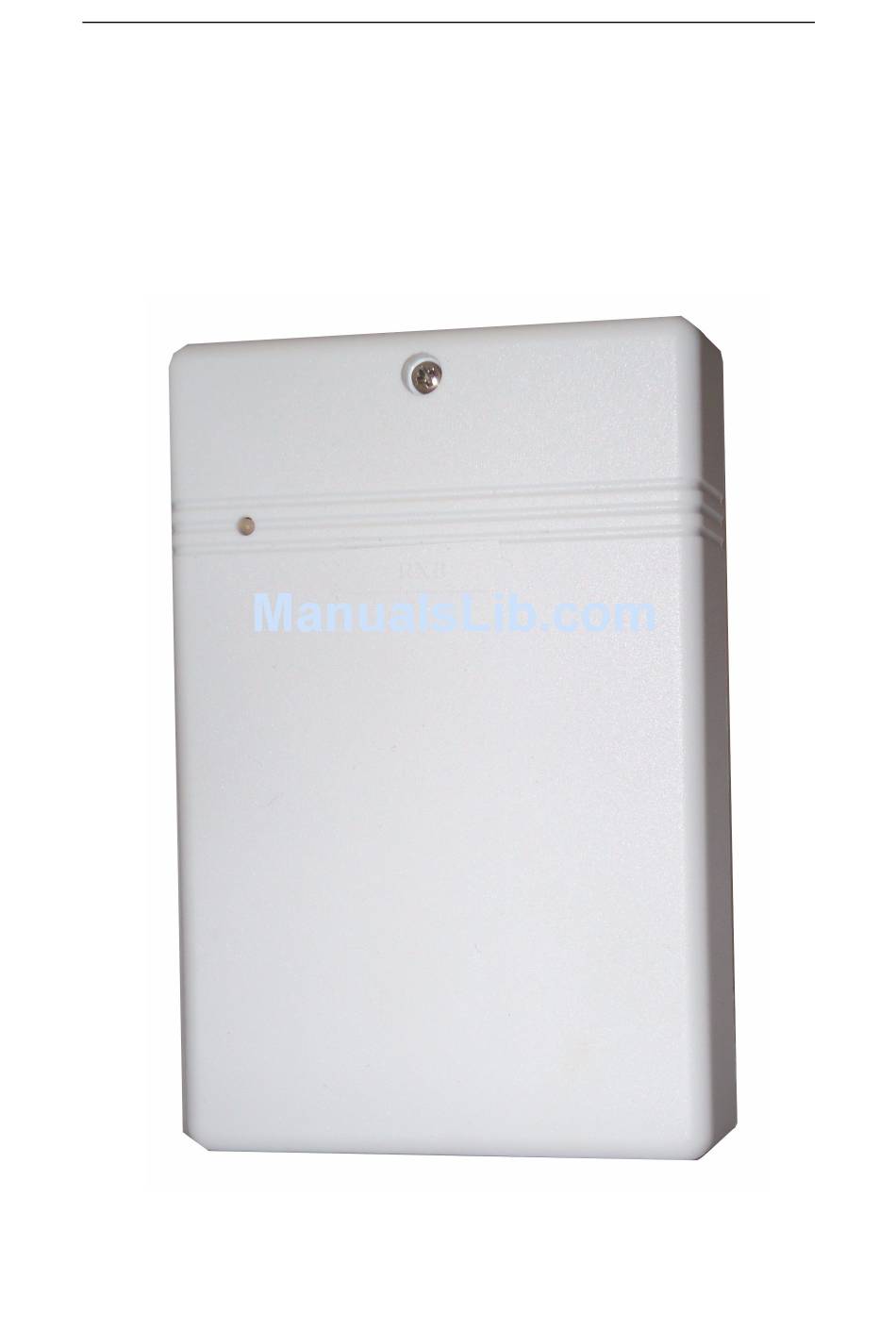

- Page 1 APFW10 wireless module operating manual Operating Manual Easy Set Module APFW10...
-
Page 2: Table Of Contents
APFW10 wireless module operating manual Table of Contents 1. Features ........................3 2. Overview ........................3 3. Wiring diagram .....................4 4. Extending the System ...............5 5. Installing the unit ..................6 6. Wireless Detectors Learning ..........7 7. Using the system ..................8 8. Summary of LED Response ............9... -
Page 3: Features
APFW10 wireless module operating manual 1. Features Allow the AP11 alarm control panel become wireless alarm system Link to 20 wireless PIR(ADFW1)/wireless Magnetic Contact(ACFW1) and 4 Wireless remote keys (AUWFOB) in maximum Arm and disarm alarm by remote key Power up by Alarm Control Unit, no extra power source is needed... -
Page 4: Wiring Diagram
APFW10 wireless module operating manual 3. Wiring diagram Easy Set module APFW10 connect with Force-10 AP11 alarm control panel White/Brown Brown White/Blue Green Green White/Orange Blue Blue White/Green Orange Orange Brown White/Green White/Orange White/Blue White/Brown... -
Page 5: Extending The System
APFW10 wireless module operating manual 4. Extending the System A number of accessories are available to extend your system to suit your exact requirements. When extending the system, please note the system can take up to 20 wireless PIR(ADFW1)/wireless Magnetic Contact(ACFW1) -
Page 6: Installing The Unit
APFW10 wireless module operating manual 5. Installing the unit... -
Page 7: Wireless Detectors Learning
How to learn a valid pin of control panel from wiring remote keypad. The APFW10 acts as if the user has entered a valid PIN code. To achieve this, the system needs to learn the PIN code. Under learn mode, Input 4 - digital key, Red LED on APFW10 board will flash fast twice and give two beeps to indicate How to register wireless detector into RXC module. -
Page 8: Using The System
When the original user PIN code in the control panel is changed, you must relearn the PIN code. (See section 6) We suggest programming a different user code for the APFW10 than the standard user code. (2 user codes plus a manager code can be programmed in panel) -
Page 9: Summary Of Led Response
Learn mode(key) mode(PIR&MC) When APFW10 working in learn mode, Z1 LED – Z10 LED indicate status: LED flash slowly hint ready to learn the first detector to zone, LED flash fast hint to learn the second detector, while LED light on indicate the zone be learned. - Page 10 APFW10 wireless module operating manual Distributed by; Challenger Security Products 4 Arkwright Court, Fylde Industrial Estate Blackpool FY4 5DR Tel: 01253 792898 Fax: 01253 791887 Email: Enquiries.challenger@adivision.co.uk Web: www.challenger.co.uk...
