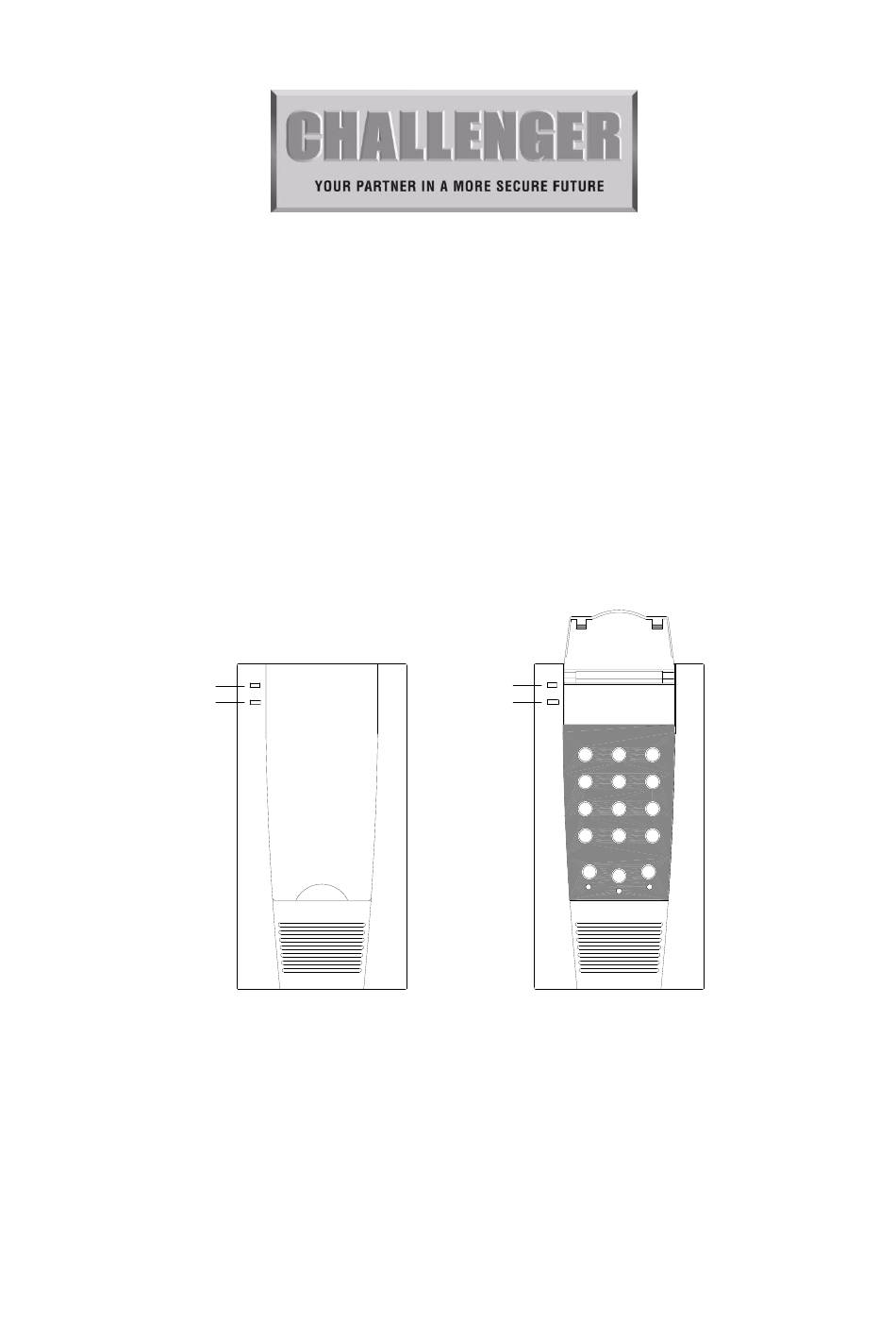

- Page 1 AT60 AUTO DIALLER User Guide Power on LED Power on LED REC/PLAY STORE...
-
Page 2: Table Of Contents
Using the Dialer Maintenance Specifications VII. Customer Information Annex 1 – AT60 Auto Voice Dialer Wire Connection Diagram Annex 2 – AT60 Auto Voice Dialer Operation Summary Annex 3 – AT60 Wiring Connection between AT60 and Alarm Panel Page 2 CHALLENGER_AT60_Instructions_Rev02... -
Page 3: Overview
AT60 User Guide Overview AT60 Auto Voice Dialer is a microprocessor based security monitoring device which can notify you of an alarm event through public telephone system. The device normally works with a control panel of any standard alarm system. -
Page 4: Installation
AT60 User Guide Three Pre-stored Phone Numbers - You may store up to 3 phone numbers in the dialer. It is more likely that your message will get through to someone who can take necessary action. When an alarm event happens, the stored phone numbers will be dialed out in sequence up to five times each or until any call receiver acknowledges and stops it through the line. -
Page 5: Initialize The Dialer
(SET + & - can also be Figure 3 triggered by volt free contacts) III. Apply Power to the AT60 Dialer To prepare the dialer, perform the following procedures: III.1 Store Phone numbers Press REC/PLAY key twice. -
Page 6: Using The Dialer
AT60 User Guide III.3 Record the voice message Press the REC/PLAY key for 2 seconds (until M1 LED will be on). Speak the message clearly to the microphone while the REC/PLAY key is still being pressed. Release the REC/PLAY key when your voice message recording is completed (M1 LED will turn off). -
Page 7: Maintenance
AT60 User Guide V. Maintenance Once every year, ★ Replace the alkaline battery in the Dialer. ★ Test Monthly for correct operation Additionally, ★ In case of main power lost over 24 hours, replace the alkaline battery in the Dialer (as that the telephone numbers will be erased). - Page 8 AT60 User Guide AT60 Auto Voice Dialer Wire Connection Diagram 9V alkaline battery (Back view of dialer, with the back cover taken out) Connect the telephone line/cord (NOTE 1) Connect to the AC/DC Adaptor line/cord Connect to your alarm panel (Accept...
- Page 9 AT60 User Guide ANNEX 2 AT60 Auto Voice Dialer Operation Summary Green LED Microphone Dialer keypad REC/PLAY STORE A) Record message ‘M1’ LED lights up ‘M1’ LED lights off after pressing for 2 sec. REC/PLAY STORE Press REC/PLAY ( Keep on pressing ) (Speak your message clearly to the microphone and release the key when your voice message is completed).
- Page 10 AT60 User Guide ANNEX 2 (Instead of pressing M1 in the repeated Procedures C1 and C2, Press M2 for 2 and M3 for 3 priority phone number) D) Alarm trigger When the dialer is triggered, the first priority phone number M1 will be dialed out.
- Page 11 ANNEX 3 AT60 User Guide The AT60 comes with the tamper output terminals which is a dry contact output. Terminals Connector AT60 and the Tamper Output Terminals Plug in the connector and fit the terminals inside the AT60 ...
- Page 12 Due to our policy of continuous improvement we reserve the right to change specification without prior notice. Errors and omissions accepted. These instructions have been carefully checked prior to publication. However, no responsibility can be accepted by Challenger Security Products for any misinterpretation of these instructions.
