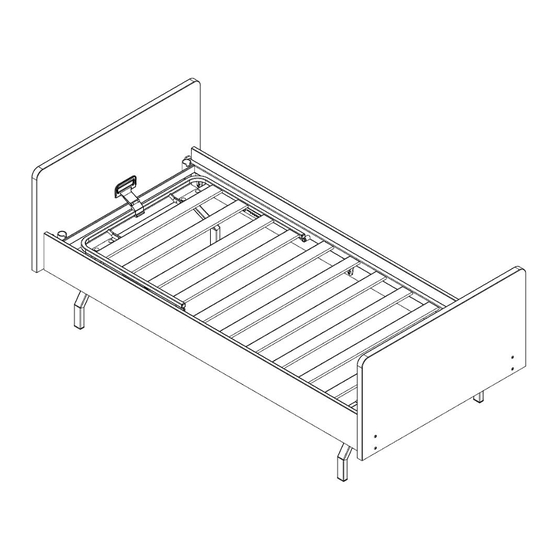

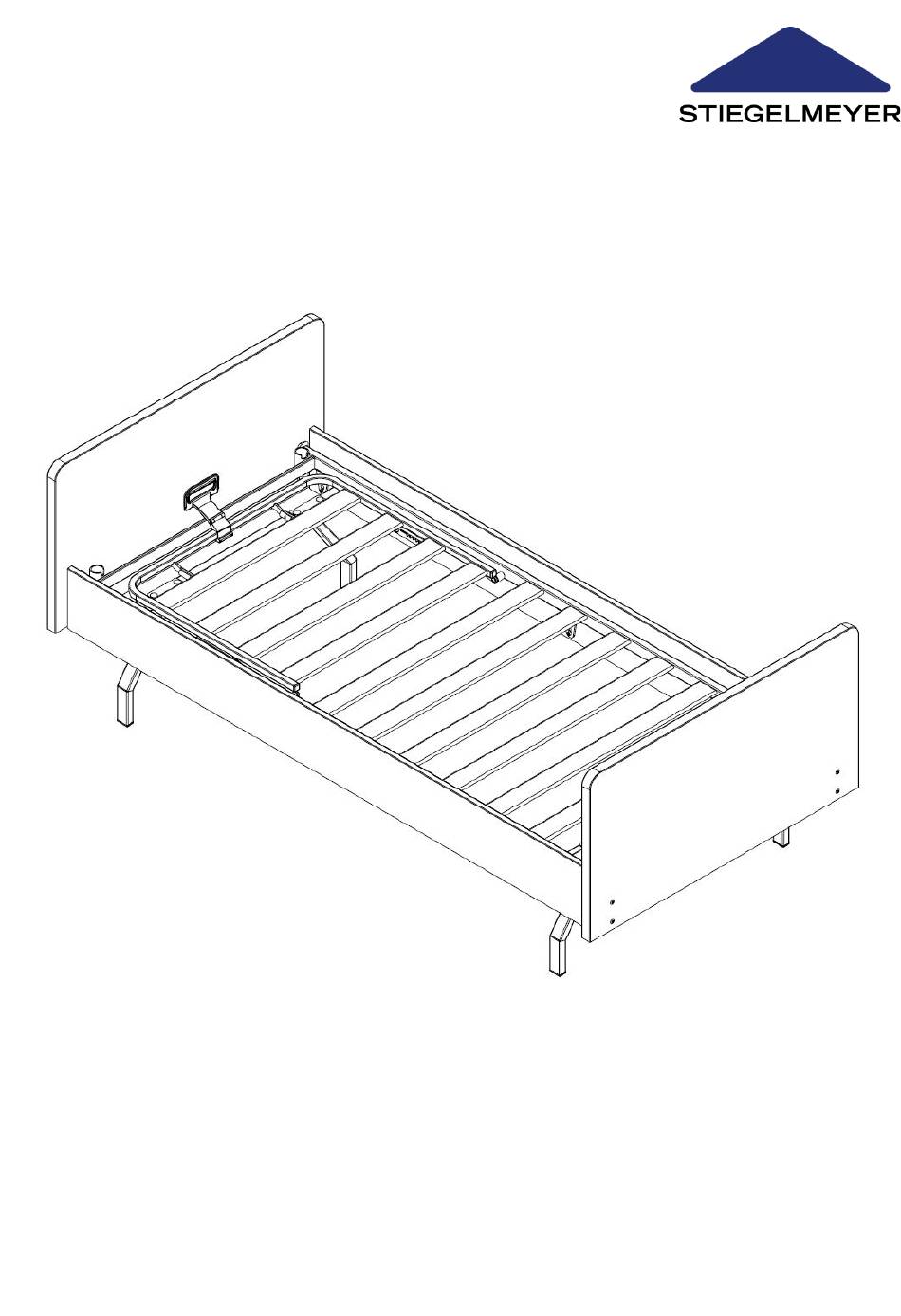

- Page 1 Carino | Care | Clinic Homecare Assist Residential home bed Instruction manual for assembly and use 21/04/2016 | Version 1 | 254057...
-
Page 3: Table Of Contents
5.6 Further Options ______________________________________________________ 17 Operation - Backrest ......................18 Cleaning ..........................19 Servicing ..........................20 Disposal ..........................20 9.1 Disposal of the Bed ___________________________________________________ 20 9.2 Disposal of Packaging ________________________________________________ 20 10 Available Accessories......................21 Residential home bed - Carino... -
Page 4: Manufacturer's Address, Change History, Market Information
Manufacturer’s Address, Change History, Market Information 1 Manufacturer’s Address, Change History, Market Infor- mation Joh. Stiegelmeyer GmbH & Co. KG Ackerstrasse 42, 32051 Herford Postfach 28 54, 32018 Herford, Germany Phone: +49 (0) 5221 / 1850 Fax, service, general: +49 (0) 5221 / 185219... -
Page 5: Foreword
2 Foreword Dear Customer, STIEGELMEYER would like to thank you for the confidence you have placed in us in de- ciding to purchase this bed. Each Stiegelmeyer bed has been tested by the manufacturer for safety and functionality and has left our factory in fault-free condition. -
Page 6: Safety Instructions
Safety Instructions 3 Safety Instructions Backrest • Before adjusting the backrest, make sure that there are no limbs at risk under the backrest. Risk of crushing! DANGER /Trapping hazard! • When the backrest is raised, the area behind the backrest must be kept free. -
Page 7: Product Description
30° with the aid of a handle. The bed has four fixed feet which are attached to the corners of the bed frame. An approximately 20 cm bed extension can be supplied at the customer’s request. Residential home bed - Carino... -
Page 8: Technical Data
Product Description 4.3 Technical Data 4.3.1 Type plate The type plate is at the head end of the mattress base (inner side). It contains the following information: Fig. 19: Type plate Symbol Meaning Model Name of product Item number Order number Date of manufacture (week/year) Pay attention to the instruction manual! -
Page 9: Dimensions - Bed
(*): Depending on the materials and accessories used, the overall weight may vary from the figure shown. 4.3.5 Adjustment - backrest Description 90 x 200 cm 90 x 220 cm 100 x 200 cm Backrest angle 30° Residential home bed - Carino... -
Page 10: Assembly
Assembly 5 Assembly part Quantity ID number Use in Optional Dimensions feature M8 x 45 mm 10001 Feet 10002 Feet Side panel / 6 screws are required for 12 x M6 x 12 mm 10003 attaching the fixed board along the side of the bed (optional) M8 x 20 mm 10004... -
Page 11: Fitting The Feet
Assembly 5.1 Fitting the Feet 10001 13 mm 10002 Residential home bed - Carino... -
Page 12: Attaching The Bed Extension (Optional)
Assembly 5.2 Attaching the Bed Extension (Optional) The T-pieces are attached to the mattress base frame in the factory. To assemble the bed extension, the T-pieces at the foot end must first of all be removed. The bed extension is attached at the foot end only. Proceed as follows: 1. - Page 13 3. Attach the bed extension with two screws. 4. Insert the T-pieces into the bed extension and affix them with two screws. 5. Check that all screws have been tightened properly. 10009 10009 Residential home bed - Carino...
-
Page 14: Fitting The Side Panels
Assembly 5.3 Fitting the Side Panels Right-hand Assembly of right and mattress base left-hand side panels is identical Left-hand mattress base A quantity of 6 screws with the ID number 10003 is required per side panel Proceed as follows: − Insert the screws into the threaded holes in the side panels ... -
Page 15: Fitting The Head And Footboards (Optional)
5.4 Fitting the Head and Footboards (Optional) Headboard The method for assembling the head and footboards is identical. A quantity of 4 screws with the ID number 10004 is required per head or footboard Footboard 10004 Residential home bed - Carino... -
Page 16: Attaching The Fixed Board (Optional)
Assembly 5.5 Attaching the Fixed Board (Optional) • The fixed board along the side of the bed can be attached to the left or right-hand side of the bed. • A side panel is not attached to the side of the bed that is fitted with the fixed board. •... -
Page 17: Further Options
The bed can optionally be complemented with useful accessories. • Patient lifting pole with grab handle (insertable). Maximum loading capacity: 75 • Side tray (insertable). Maximum loading capacity: 5 kg. • Underbed drawer Softcovers • • Reading lamp Residential home bed - Carino... -
Page 18: Operation - Backrest
Operation - Backrest 6 Operation - Backrest Caution! It is important to read the safety instruction in Chapter 3 before operating the bed. Caution - Risk of injury! Do not grip the backrest by the frame. Adjust the backrest using the handle ... -
Page 19: Cleaning
Please consult the appropriate manufacturer before using any other agents than those in- cluded in this list. Only alternative agents with an equivalent composition may be used, to prevent any damage to the bed as a result. Residential home bed - Carino... -
Page 20: Servicing
Servicing 8 Servicing The Carino bed is maintenance-free; however, we would recommend performing an annu- al inspection of the following points: • Condition and good working order of the rastomat mechanism and the backrest. • Ensure that all connection elements are firmly tightened. -
Page 21: Available Accessories
5 mm. This allows the Softcovers to be easily fitted without damage.) The screws must then be fully tightened again. The accessories can be obtained from Joh. Stiegelmeyer GmbH & Co. KG. Please indi- cate the model of bed you have. - Page 22 Notes Version 1...
- Page 23 Notes Residential home bed - Carino...
- Page 24 Joh. Stiegelmeyer GmbH & Co. KG Ackerstrasse 42 / 32051 Herford, Germany Phone: +49 (0) 5221 185 - 0 / Fax: +49 (0) 5221 185 - 252 E-mail: info@stiegelmeyer.com www.stiegelmeyer.com...
