Kogan KAM45BWCDZA User Manual

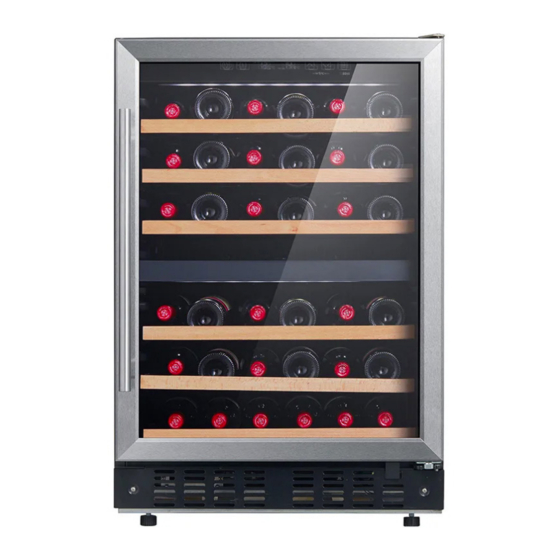

45 bottle dual zone wine fridge
Hide thumbs

Advertisement

Quick Links

USER GUIDE
45 BOTTLE DUAL ZONE
WINE FRIDGE
(KAM45BWCDZA)

Advertisement

loading
Need help?

Need help?

Do you have a question about the KAM45BWCDZA and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Kogan KAM45BWCDZA

Summary of Contents for Kogan KAM45BWCDZA

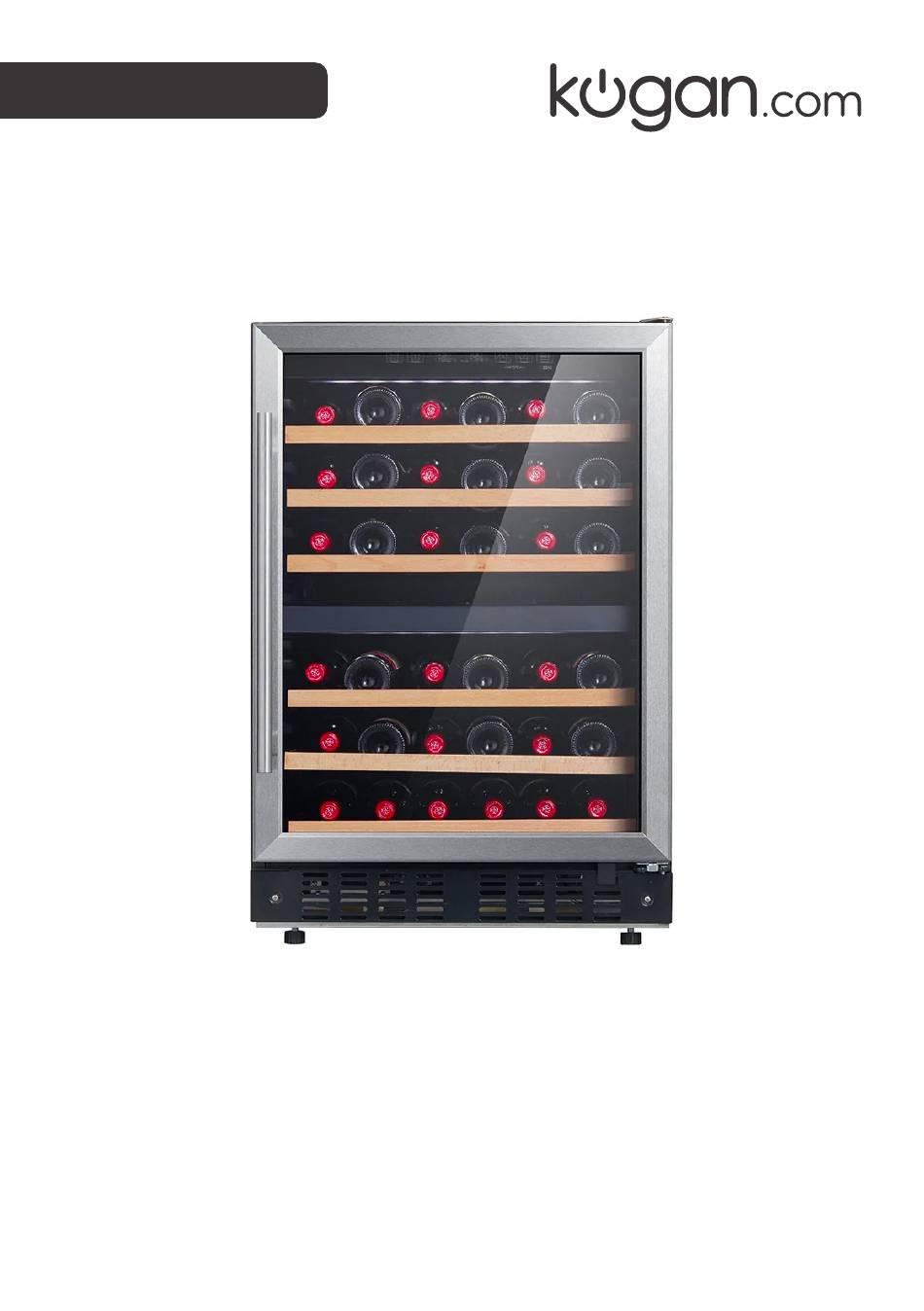

  • Page 1 USER GUIDE 45 BOTTLE DUAL ZONE WINE FRIDGE (KAM45BWCDZA)

  • Page 2: Table Of Contents

    Operation ..........08 - 11 Adjusting ........... 12 - 14 Cleaning & maintenance ....15 - 16 Troubleshooting ........17 Specifications .......... 18 THIS USER GUIDE COVERS THE FOLLOWING MODELS Kogan 45 Bottle Dual Zone Wine Fridge - Stainless Steel ( KAM45BWCDZA...

  • Page 3: Safety And Warnings

    RISK OF FIRE / FLAMMABLE MATERIALS • This appliance is only intended for use within a domestic environment only. • If the supply cord is damaged, it must be replaced by Kogan.com or an authorised service agent on Kogan.com’s behalf.
  • Page 4 SAFETY AND WARNINGS (cont’d) Disposing: • Old appliances should not simply be disposed of with normal household waste, but should be delivered to a collection and recycling centre for electric and electronic equipment. A symbol shown on the product, the instruction manual or the packaging shows that it is suitable for recycling.

  • Page 5: Product Overview

    PRODUCT OVERVIEW Temperature control panel 2 Shelves 3 Glass door...

  • Page 6: Installation

    INSTALLATION SELECTING A SUITABLE LOCATION Before using the unit, remove all packaging materials including bottom cushions, foam pads, and tapes inside the cooler. Remove the protective film on the door and the cooler body. When selecting a position for your unit, ensure the floor is flat and firm, and the room is well ventilated.
  • Page 7 The power outlet must be grounded. Important! If the supply cord is damaged, it must be replaced by Kogan.com or an authorised service agent on Kogan.com’s behalf. Cease use and ensure the appliance is completely disconnected from the power supply.

  • Page 8: Operation

    OPERATION Standby button Light button Upper zone temperature Lower zone temperature Temperature increase button Temperature decrease button Upper/lower zone function conversion button Display control In the case of initial power-up, the whole screen will display relevant information for 3s, and the start-up tone will sound, followed by enabling of normal operation display.
  • Page 9 Standby function Long-press the standby button for 5s to enter/exit the standby mode. Light The internal lamp will be on when open the cooler door, and will be off when close the cooler door. Users also can turn on/off the internal lamp by pressing the light button.
  • Page 10 OPERATION (cont’d) Bottle arrangement • In order to maintain good air circulation in the cooler, do not let bottles touch the back side of wine cooler. • The capacity for bottle storage in the wine cabinet is based on the following marked bottle size.
  • Page 11 Recommended serving temperature The wine’s taste depends on right pouring temperature, making considerable difference to its flavour. See below for a general guide to recommended serving temperatures. Wine Serving temperature Bordeaux red 18°C Louis Family dry red wine/Barcia 17°C Burgundy red 16°C Port 15°C...

  • Page 12: Adjusting

    ADJUSTING TOOLS REQUIRED Phillips head screwdriver, flat-blade screwdriver, and hexagonal spanner. NOTE Ensure unit is unplugged and empty. 2. Reversing the door swing a. Dismantle the shaft hole cap (1) and the upper sleeve (2) of the upper part of the glass door assembly, and dismantle screws (3), the door light switch block (4), the door stopper (5) and screws, and the lower sleeve (6)
  • Page 13 c. Exchange the position of the upper sleeve (2) and the shaft plug (1), and move the door stopper (5) and the lower sleeve (6) from the lower right to the lower left. Figure 2c d. Assemble the sleeves, the shaft hole cap, the stopper and the switch block.
  • Page 14 ADJUSTING (cont’d) 3. Door handle install TOOLS REQUIRED Allen key a. Place the handle on the glass door via the two bolts. Ensure the holes in the door handle are facing downwards. b. Using an Allen key, tighten the door in place. c.

  • Page 15: Cleaning & Maintenance

    CLEANING AND MAINTENANCE WARNING! To avoid an electric shock, always unplug your fridge before cleaning. Cleaning the inner cabinet • Caution: Before using any cleaning products, please read and follow the manufacturer’s instructions and warnings to avoid any damage to your fridge or personal injury.
  • Page 16 CLEANING AND MAINTENANCE (cont’d) • Wipe the outer surface of the wine cooler with a soft cloth dampened with soap water, detergent, etc., and then wipe dry. Do not rub or scratch the surface of the glass door to prevent the door from being broken or scratched.

  • Page 17: Troubleshooting

    • Do not overstock the cooler with too being circulated. many wine bottles. • Check that the cooler is correctly • Try to minimise the frequency of the levelled. door opening. For our full FAQ and troubleshooting guide, head online to help.kogan.com...

  • Page 18: Specifications

    SPECIFICATIONS Capacity Volume 137L Dimensions Dimensions (W x D x H): 595 x 606.5 x 870mm Weight 51kg Hardware Compressor Type PZ65H1A Power Current 0.6A Energy Consumption 197kWh per year Voltage 220-240V/50Hz Note: • Design and specifications are subject to change without notice. •...
  • Page 19 NOTES...
  • Page 20 Need more information? We hope that this user guide has given you the assistance needed for a simple set-up. For the most up-to-date guide for your product, as well as any additional assistance you may require, head online at help.kogan.com...
