ASROCK IMB-130 Jumpers And Headers Setting Manual

*15G06X522001AK*
P/ N: 15G06X522001AK V1.0b
IMB-130
The terms HDMI™ and HDMI High-Definition
Multimedia Interface, and the HDMI logo are
trademarks or registered trademarks of HDMI
Licensing LLC in the United States and other
countries.
1 : Reserve for Antenna or DC-In Cable
2 : Higher (Green) – PS/2 Mouse
Lower (Purple) – PS/2 KeyBoard
3 : Higher: COM Port A (COM1) – RS232/422/485*
Lower: COM Port B (COM2) – RS232 Only
* This motherboard supports RS232/422/485 on COM1 port. Please refer to below table for
the pin definition. In addition, COM1 port (RS232/422/485) can be adjusted in BIOS setup
utility > Advanced Screen > Super IO Configuration. You may refer to page 29 of our user
manual for details.
COM1 Port Pin Definition
PIN RS232
1 DCD/+5V/+12V TX-/+5V/+12V
2 RXD
3 TXD
4 DTR
5 GND
6 DSR
7 RTS
8 CTS
9 +5V/+12V/RI
4 : VGA/D-Sub
5 : HDMI Port
6 : RJ45 LAN Port + USB2.0
7 : USB2.0
8 : Audio Out Put
Lime – Line Out
Pink – Mic In
9 : Front Panel Audio Header (White)
GND
PRESENCE#
MIC_RET
OUT_RET
1
OUT2_L
J_SENSE
OUT2_R
MIC2_R
MIC2_L
10 : PCI Slot
11 : System Panel Control Header (White)
PLED+
PLED-
PWRBTN#
GND
1
GND
RESET#
GND
HDLED-
HDLED+

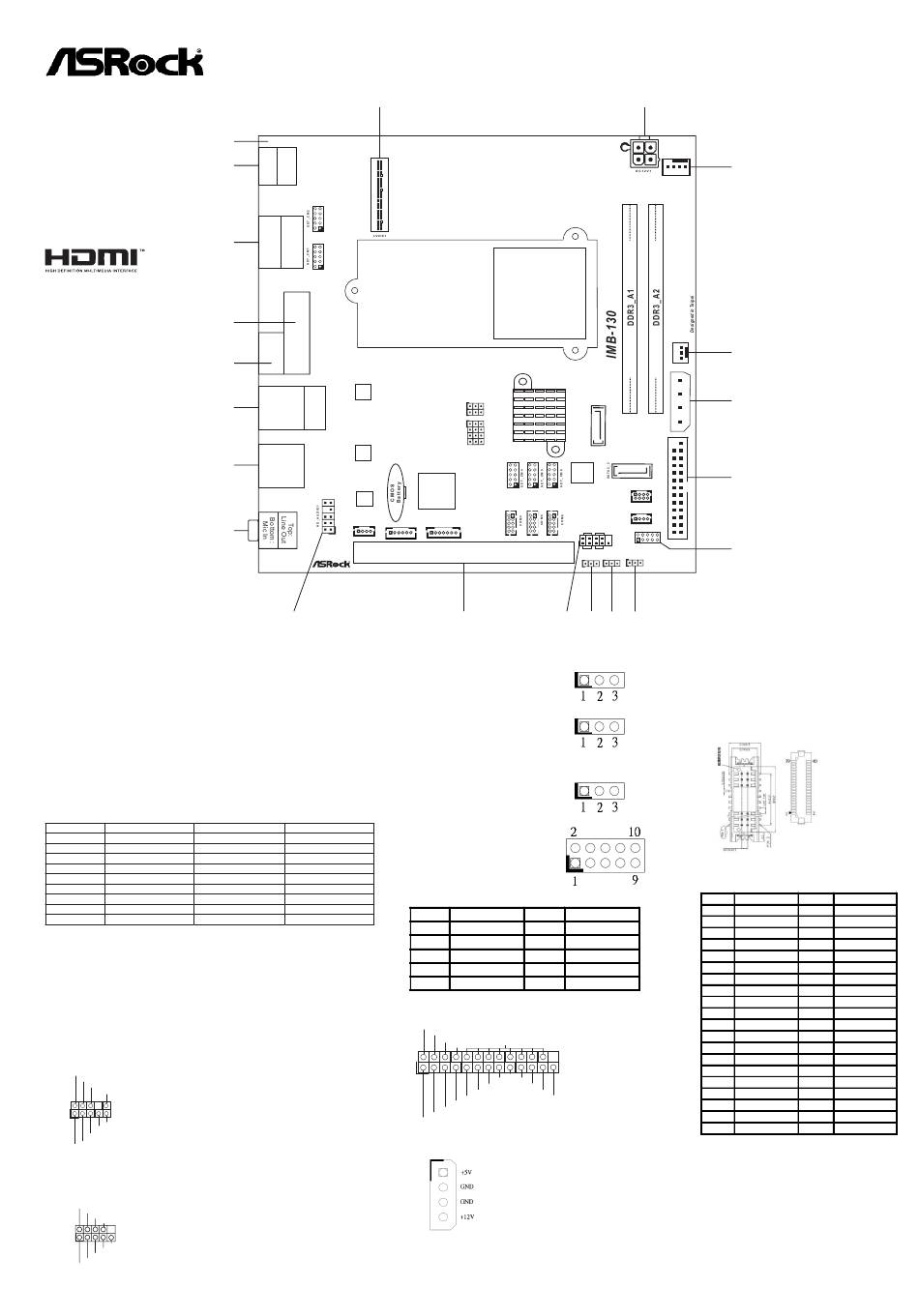

Jumpers and headers setting guide
21
1
2
Ps2 Ps2
Keyboard
Mouse
1
COM COM
3
Port B Port A
1
4
VGA1
HDMI1
5
LAN
PHY
USB 2.0
Top:
6
T: USB0
RJ-45
B: USB1
LAN
USB 2.0 PHY
7
T: USB2
B: USB3
AUDIO
CODEC
SPEAKER1
BLT_PWR2
8
1
1
1
9
RS422 RS485
RTX-/+5V/+12V
RX+ N/A
TX+ RTX+
RX- N/A
GND GND
N/A N/A
N/A N/A
N/A N/A
N/A N/A
RoHS
PNL_PWR1
BKT_PWR1
JLVD_GPIO1
16Mb
BIOS
Super
1 1 1
IO
1 1 1
BLT_VOL1
1
PCI1
10 11 12 13 14
12 : PWR-On mode setting
1-2: AT Mode
2-3: ATX Mode
13 : Clear CMOS Header
1-2: Normal
2-3: Clear CMOS
14 : Digital I/O Header PWR setting
1-2: +12V
2-3: +5V
15 : Digital I/O Header
GPIO from Super I/O
Pin # Signal Name Pin # Signal Name
1 GP24 2 GP20
3 GP25 4 GP21
5 GP26 6 GP22
7 GP27 8 GP23
9 PWR 10 GND
16 : Printer Port Header
AFD#
ERROR#
PINIT#
GND
SLIN#
1
SPD7
SPD6
ACK#
SPD5
BUSY
SPD4 PE
SPD3 SLCT
SPD2
SPD1
SPD0
STB#
17 : Output Power
20
19
CPU_FAN1
CHA_FAN1
18
SATA_PWR1
17
SATA2_1
16
USB4, 5
1
USB6
1
PLED PWRBTN
1
LPT1
1
JGP IO1 15
HDLED RESET
PANEL 1
JGPIO_PWR1
CLRCMOS1
PWR_JP1
1 1
1
18 : 3-Pin FAN con (+12V)
19 : 4-Pin FAN con (+12V)
20 : 4-Pin ATX PWR In (+12V)
21 : LVDS Con
LVDS Con Pin Definition
Pin # Signal Name
1 VDD PWR
3 EDID PWR (3V)
5 EDID_DAT
7 RXINO0+
9 RXINO1-
11 GND
13 RXINO2+
15 RXINO3-
17 GND
19 RXOCLKIN+
21 RXINE0-
23 GND
25 RXINE1+
27 RXINE2-
29 GND
31 RXINE3+
33 RXECLKIN-
35 GND
37 BackLight PWM
39 BackLight PWR
Pin # Signal Name
2 VDD PWR
4 EDID_CLK
6 RXINO0-
8 GND
10 RXINO1+
12 RXINO2-
14 GND
16 RXINO3+
18 RXOCLKIN-
20 GND
22 RXINE0+
24 RXINE1-
26 GND
28 RXINE2+
30 RXINE3-
32 GND
34 RXECLKIN+
36 BackLight EN
38 BackLight PWR
40 BackLight PWR
