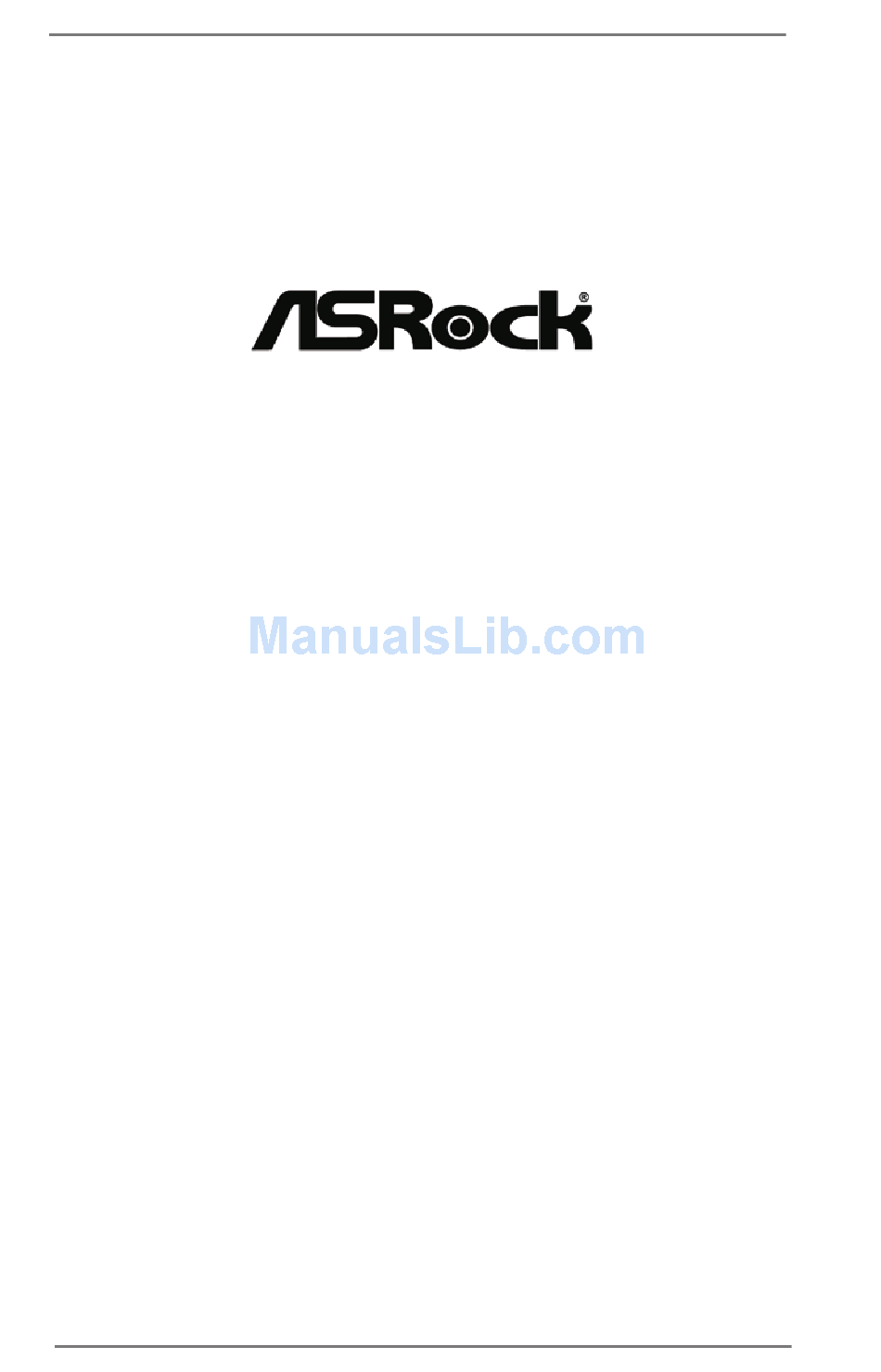

IMB-152

User Manual

Version 1.0
Published June 2014
Copyright©2014 ASRock INC. All rights reserved.
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IMB-152 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ASROCK IMB-152

Summary of Contents for ASROCK IMB-152

  • Page 1: User Manual

    IMB-152 User Manual Version 1.0 Published June 2014 Copyright©2014 ASRock INC. All rights reserved.

  • Page 2: Copyright Notice

    (including damages for loss of profits, loss of business, loss of data, interruption of business and the like), even if ASRock has been advised of the possibility of such damages arising from any defect or error in the documentation or product.

  • Page 3: Table Of Contents

    Contents 1 Introduction ............5 1.1 Package Contents ............5 1.2 Specifications ..............6 1.3 Motherboard Layout ............8 1.4 I/O Panel ................ 10 2 Installation ............11 2.1 Screw Holes ..............11 2.2 Pre-installation Precautions ........... 11 2.3 Installation of Memory Module (SO-DIMM) ....12 2.4 Expansion Slot ...............
  • Page 4 4 Software Support ..........37 4.1 Install Operating System ..........37 4.2 Support CD Information ..........37 4.2.1 Running Support CD ..........37 4.2.2 Drivers Menu ............37 4.2.3 Utilities Menu............37 4.2.4 Contact Information ..........37...

  • Page 5: Introduction

    In case any modifications of this manual occur, the updated version will be available on ASRock website without further notice. You may find the latest VGA cards and CPU support lists on ASRock website as well. ASRock website http://www.asrock.com If you require technical support related to this motherboard, please visit our website for specific information about the model you are using.

  • Page 6: Specifications

    1.2 Specifications Form Dimensions Mini-ITX (6.7-in x 6.7-in) Factor ® Intel new Atom Baytrail-M/D Supports Hyper-Threading Technology Default J1900 Quad core processor Core Processor (By CPU, Max 4) Number System Max Speed (By CPU) L2 Cache (By CPU) Chipset (By CPU) BIOS UEFI Mini-PCIe...
  • Page 7 DisplayPort 0 Ethernet 1 Optional 2 4 x USB 3.0 Audio 2 (Mic-in, Line-out) Serial 3 x RS-232 PS/2 2 (1 x keyboard and 1 x mouse) 6 (3 x 2.54 pitch header USB 2.0 compliant) LVDS/ Inverter Serial 3 (RS-232) SATA 2 x SATA2 (3.0Gb/s) mPCIe...

  • Page 8: Motherboard Layout

    PWR_COM3 Port 1 Port 2 SATA_PWR1 HDMI1 VGA1 Port 3 BUZZ1 USB 3.0 Top: T: USB3 RJ-45 B: USB2 LPT1 Industrial IMB-152 CLRCMOS1 USB 3.0 PANEL1 COM4 T: USB1 USB2_0_1 B: USB0 USB2_2_3 COM5 HD_AUDIO1 FAN1 USB2_4_5 JGPIO_SET1 COM6 PWR_JP1...
  • Page 9 1 : Backlight Power Connector (BLT_PWR1) 2 : Backlight Volume Control (BLT_VOL1) 3 : Panel Power Selection (LCD_VCC) (PNL_PWR1) 4 : LVDS Panel Connector 5 : Backlight Power Selection (LCD_BLT_VCC) (BKT_PWR1) 6 : BLT_PWM1 7 : ATX Power Connector (Input 12V) 8 : +12V_OUT1 Connector 9 : SATA Power Output Connector 10 : SATA2 Connectors (SATA2_1, SATA2_2)

  • Page 10: I/O Panel

    1.4 I/O Panel PS/2 Mouse Port USB 3.0 Ports (USB3_0_1) COM Port 2 (COM2) USB 3.0 Ports (USB3_2_3) COM Port 3 (COM3) VGA Port (VGA1) LAN RJ-45 Port* COM Port 1 (COM1) Line out (Green) PS/2 Keyboard Port Microphone (Pink) * There are two LED next to the LAN port.

  • Page 11: Installation

    Chapter 2: Installation This is a Mini-ITX form factor (6.7" x 6.7", 17.0 x 17.0 cm) motherboard. Before you install the motherboard, study the configuration of your chassis to ensure that the motherboard fits into it. Make sure to unplug the power cord before installing or removing the motherboard.

  • Page 12: Installation Of Memory Module (So-Dimm)

    2.3 Installation of Memory Module (SO-DIMM) IMB-152 motherboard provides one 204-pin DDR3 (Double Data Rate 3) SO-DIMM slot, which supports Dual Channel DDR3L (low voltage). 1. It is not allowed to install a DDR or DDR2 memory module into a DDR3 slot;...

  • Page 13: Expansion Slot

    2.4 Expansion Slots (mini-PCIe and PCI Express Slot) There is 1 mini-PCIe slot and 1 PCI Express slot on this motherboard. mini-PCIe slot: MINI_PCIE1 (mini-PCIe slot; half size) is used for PCI Express mini cards. PCIE slot: PCIE1 (PCIE x1 slot) is used for PCI Express x1 lane width cards. Installing an expansion card Step 1.

  • Page 14: Jumpers Setup

    2.5 Jumpers Setup The illustration shows how jumpers are setup. When the jumper cap is placed on pins, the jumper is “Short”. If no jumper cap is placed on pins, the jumper is “Open”. The illustration shows a 3-pin jumper whose pin1 and pin2 are “Short”...
  • Page 15 Backlight Power Selection Use this to set up the backlight (LCD_BLT_VCC) power of the LVDS connector and the panel backlight power (5-pin BKT_PWR1) of BLT_PWM1. (see p.8 No. 5) 1-2: LCD_BLT_VCC: +5V 2-3: LCD_BLT_VCC: +12V Backlight Control Level (CON_LBKLT_CTL) 1-2: +3V Level 2-3: +5V Level (3-pin BLT_PWM1) (see p.8, No.

  • Page 16: Onboard Headers And Connectors

    2.6 Onboard Headers and Connectors Onboard headers and connectors are NOT jumpers. Do NOT place jumper caps over these headers and connectors. Placing jumper caps over the headers and connectors will cause permanent damage of the motherboard! SATA2 Connectors These two Serial ATA2 (SATA2) connectors support SATA2_2 (SATA2_1, SATA2_2: see p.8, No.
  • Page 17 PLED (System Power LED): Connect to the power status indicator on the chassis front panel. The LED is on when the system is operating. The LED keeps blinking when the sys- tem is in S1 sleep state. The LED is off when the system is in S3/S4 sleep state or powered off (S5).

  • Page 18: Fan Connector

    Fan Connector Please connect the fan cable to the fan connector and (4-pin FAN1) +12V match the black wire to the (see p.8 No. 14) FAN_SPEED FAN_SPEED_CONTROL ground pin. ATX Power Connector Please connect a DC (Input 12V) 12V power supply to this connector.
  • Page 19 Digital Input / Output Pin Header Signal Name Signal Name SIO_GP24/RXD SIO_GP20/CTS (10-pin JGPIO1) SIO_GP25/TXD SIO_GP21/DSR (see p.8 No. 19) SIO_GP26/DCD SIO_GP22/RTS SIO_GP27/RI SIO_GP23/DTR JGPO_PWR Backlight Volume Control Signal Name (7-pin BLT_VOL1) GPIO_VOL_UP (see p.8 No. 2) GPIO_VOL_DW PWRDN LVDS1 BLUP LVDS1 BLDW Backlight Power Connector Signal Name...
  • Page 20 COM4, 5, 6 Headers (RS232) RRXD (9-pin COM4/COM5/COM6: see p.8, No. 21) DDTR# DDSR#1 CCTS#1 NC/+5V/+12V RRTS#1 TTXD1 DDCD#1 LPC Header This connector supports a Trusted Platform Module (TPM) (19-pin LPC1) system, which can see p.8, No. 24) securely store keys, digital certificates, passwords, and data.

  • Page 21: Uefi Setup Utility

    Chapter 3: UEFI SETUP UTILITY 3.1 Introduction This section explains how to use the UEFI SETUP UTILITY to configure your system. The UEFI chip on the motherboard stores the UEFI SETUP UTILITY. You may run the UEFI SETUP UTILITY when you start up the computer. Please press <F2>...

  • Page 22: Navigation Keys

    3.1.2 Navigation Keys Please check the following table for the function description of each navigation key. Navigation Key(s) Function Description Moves cursor left or right to select Screens Moves cursor up or down to select items + / - To change option for the selected items <Enter>...

  • Page 23: Advanced Screen

    3.3 Advanced Screen In this section, you may set the configurations for the following items: CPU Configu- ration, Chipset Configuration, Storage Configuration, Intel(R) Smart Connect Tech- nology, Super IO Configuration, ACPI Configuration and USB Configuration. Setting wrong values in this section may cause the system to malfunction.

  • Page 24: Cpu Configuration

    3.3.1 CPU Configuration Intel SpeedStep Technology Intel SpeedStep technology is Intel’s new power saving technology. Pro- cessors can switch between multiple frequencies and voltage points to en- able power saving. The default value is [Enabled]. Configuration options: ® [Enabled] and [Disabled]. If you install Windows 8 / 8.1 and want to en- able this function, please set this item to [Enabled].

  • Page 25: Chipset Configuration

    3.3.2 Chipset Configuration DRAM Voltage Use this to configure DRAM Voltage. Primary Graphics Adapter This allows you to select [Onboard] or [PCI Express] as the boot graphic adapter priority. The default value is [PCI Express]. Share Memory Configure the size of memory that is allocated to the integrated graphics processor when the system boots up.
  • Page 26 Deep S5 Mobile platforms support Deep S5 in DC only and desktop platforms sup- port Deep S5 in AC only. The default value is [Disabled]. Restore on AC/Power Loss This allows you to set the power state after an unexpected AC/power loss. If [Power Off] is selected, the AC/power remains off when the power recovers.

  • Page 27: Storage Configuration

    3.3.3 Storage Configuration SATA Controller(s) Use this item to enable or disable the SATA Controller feature. SATA Mode Selection Use this to select SATA mode. Configuration options: [IDE Mode], [AHCI Mode] and [Disabled]. The default value is [AHCI Mode]. AHCI (Advanced Host Controller Interface) supports NCQ and other new features that will improve SATA disk perfor- mance but IDE mode does not have these advantages.

  • Page 28: Intel(R) Smart Connect Technology

    3.3.4 Intel(R) Smart Connect Technology Intel(R) Smart Connect Technology Use this item to enable or disable Intel(R) Smart Connect Technology. Intel(R) Smart Connect Technology keeps your e-mail and social networks, such as Twitter, Facebook, etc. updated automatically while the computer is in sleep mode.

  • Page 29: Super Io Configuration

    3.3.5 Super IO Configuration COM1 Configuration Use this to set parameters of COM1. COM2 Configuration Use this to set parameters of COM2. COM3 Configuration Use this to set parameters of COM3. COM4 Configuration Use this to set parameters of COM4. COM6 Configuration Use this to set parameters of COM6.

  • Page 30: Acpi Configuration

    3.3.6 ACPI Configuration Suspend to RAM Use this item to select whether to auto-detect or disable the Suspend-to- RAM feature. Select [Auto] will enable this feature if the OS supports it. ACPI HPET Table Use this item to enable or disable ACPI HPET Table. The default value is [Enabled].

  • Page 31: Usb Configuration

    3.3.7 USB Configuration USB Controller Use this item to enable or disable the use of USB controller. Intel USB 3.0 Mode ® Select Intel USB 3.0 controller mode. Set [Smart Auto] to keep the USB 3.0 driver enabled after rebooting (USB 3.0 is enabled in BIOS). Set [Auto] to automatically enable the USB 3.0 driver after entering the OS (USB 3.0 is disabled in BIOS).

  • Page 32: Hardware Health Event Monitoring Screen

    3.4 Hardware Health Event Monitoring Screen In this section, it allows you to monitor the status of the hardware on your system, including the parameters of the CPU temperature, motherboard temperature, CPU fan speed, chassis fan speed, and the critical voltage. FAN1 Setting This allows you to set FAN1’s speed.

  • Page 33: Security Screen

    3.5 Security Screen In this section, you may set, change or clear the supervisor/user password for the system. Supervisor Password Set or change the password for the administrator account. Only the ad- ministrator has authority to change the settings in the UEFI Setup Utility. Leave it blank and press enter to remove the password.

  • Page 34: Boot Screen

    3.6 Boot Screen In this section, it will display the available devices on your system for you to config- ure the boot settings and the boot priority. Fast Boot Fast Boot minimizes your computer’s boot time. There are three con- figuration options: [Disabled], [Fast] and [Ultra Fast].
  • Page 35 Full Screen Logo Use this item to enable or disable OEM Logo. The default value is [Enabled]. CSM (Compatibility Support Module) Enable to launch the Compatibility Support Module. Please do not disable ® unless you’re running a WHCK test. If you are using Windows 8 64-bit and all of your devices support UEFI, you may also disable CSM for faster boot speed.

  • Page 36: Exit Screen

    3.7 Exit Screen Save Changes and Exit When you select this option, it will pop-out the following message, “Save configuration changes and exit setup?” Select [OK] to save the changes and exit the UEFI SETUP UTILITY. Discard Changes and Exit When you select this option, it will pop-out the following message, “Discard changes and exit setup?”...

  • Page 37: Software Support

    Click on a specific item then follow the installation wizard to install it. 4.2.4 Contact Information If you need to contact ASRock or want to know more about ASRock, you’re welcome to visit ASRock’s website at http://www.asrock.com; or you may con-...
