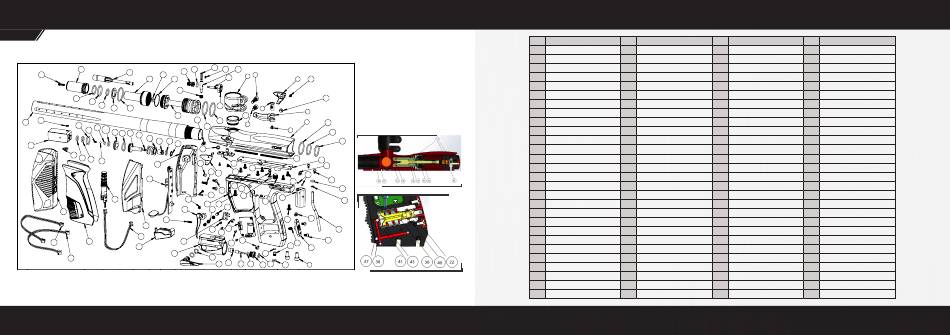

CODE SCHEMATICS
15 28
26
25
20 22
21 23
27
16
17
18
19 12
24
81
50
49
41
37 100
92
42
43 44
45
46
47 22
48
36
38
38
40
93
70
95
94 66
64
78
65
69
77
53 75
98
73
35
99
TOL
ANG. TOL RANGE
機種
1 CODE
0 ~30 0~6
2
30 ~60 6~30
CODE-爆炸圖
品名
60 ~90 30~80
3
TOLERANCES 80~180
4 UNLESS OTHERWISE SPECFIED
X.XX .10 /X.X .15
180~315 料號
發行版本 第一版本 日期 X .30
ALL DIMENSION MILLMETERS
315~800
29
31 30
6
2
32
8 11
10
33
4
3
71
12
1
34
7
12
5
13
14
10
51
52
90 96
67
61
79 9 89
74
91
57
76
62 28
57
72
63
55
50
60
59 88
67
68
57
88
97
39 54
67
57 57
89 56
86
58
87
38
82
80 83 84 85 38
28 7
材質 詠燦實業有限公司
WORLITE INDUSTRY CO., LTD
比例:
表面處理
設 計 繪 圖 審 核
核 准
單位:
熱處理 mm
valken.com
CODE SCHEMATICS
Item Description Item Description
1 Main Body 29 Back Cap lock spring
2 Feedneck Body 30 Back Cap Lock pin
3 Feedneck lever 31 Set Screw M2 0.5 X 0.45
4 Feedneck nut 32 Back Cap Button shaft
5 BHCS 6-32 X .125 33 Back Cap Button
6 SHCS 10-32 X .625 34 19mm*1mm 70 BUNA
7 SHCS 10-32 x .375 35 ASA Adapter
8 Ball Detent Cover-Right 36 REG Body
9 Ball Detent Cover- Left 37 Oring 004/70 Buna
10 Ball Detent 38 O Ring-010/90 Urethane
11 BHCS 3-48 X .125 39 BH Screw M2 0.4 X 12 Philips
12 O Ring-020/70 Buna 40 O Ring-011/ 90 Urethane
13 O Ring-017/70 Buna 41 O Ring-014/70 Buna
14 O Ring-017/90 Urethane 42 Regulator Piston Guide
15 Bolt-Front 43 O Ring-014/90 Urethane
16 O Ring-015/90 Urethane 44 Regulator Piston
17 O Ring 16mm x 2mm ID 70 Urethane 45 Seal
18 O Ring-012/90 Urethane 46 Regulator Spring
19 Ram Bumper 47 Regulator Vent Adjuster Piston
20 BH Screw M3 0.5 X 10 48 Retaining Ring INT 9mm
21 Valve 49 Barrel
22 O Ring-009/90 Urethane 50 O Ring -4mm x 1mm ID 70 BUNA
23 O Ring- 21mm x 1mm ID 70 BUNA 51 Rubber Seal
24 Back Cap 52 Air Transfer Plate
25 Valve Shaft 53 Grip
26 Back Cap Screw 54 Macro Hose
27 Back Cap lock nut 55 Solenoid Body
28 O Ring-008/90 Urethane 56 Set Screw 10-32X5/16
valken.com
Item Description Item Description
57 BHCS 6-32 X .250 85 ASA Plug
58 Regulator Cover 86 Fliter Cap
59 Frame 87 Air Fliter
60 Cover Plate Regulator 88 BHCS 8-32 X .3125
61 Seal Rubber Regulator 89 BH M2 0.4 X 4
62 Spring OPP Regulator 90 Light Pipe
63 Seal Regulator 91 Solenoid Screw
64 Trigger 92 Regulator Release spring
65 Set Screw 4-40 X .3125 93 1/8" ball bearing
66 Set screw 8-32 x .1875 94 Solenoid
67 6-32x 16.5mm set screw 95 Circuit Board A
68 #N/A 96 Circuit Board B
69 Foregrip Left 97 Circuit Board C
70 Foregrip Right 98 Wire Harnesses-A
71 Feedneck tube 99 Wire Harnesses-B
72 SH M2 0.4 X 18 100 O Ring-011/ 70 Buna
73 Foregrip End Cap
74 O Ring-2mm x 1mm ID 70 BUNA
75 Micro Switch
76 5mm x 1.5mm Magnet
77 Wire Harness assembly
78 Foregrip sleeve
79 FH Screw 6-32 x 3/8
80 ASA On/Off Lever
81 BHCS 6-32 X .3125
82 ASA Guide
83 ASA Pin
84 O Ring 006/90 Urethane
