Hitachi C 9SA3 Handling Instructions Manual page 11

WARNING
To prevent dust inhalation or eye irritation, wear
protective safety goggles and a dust mask when
using an air gun or other tool to clean the lower
guard, ventilation holes or other parts of the
product.

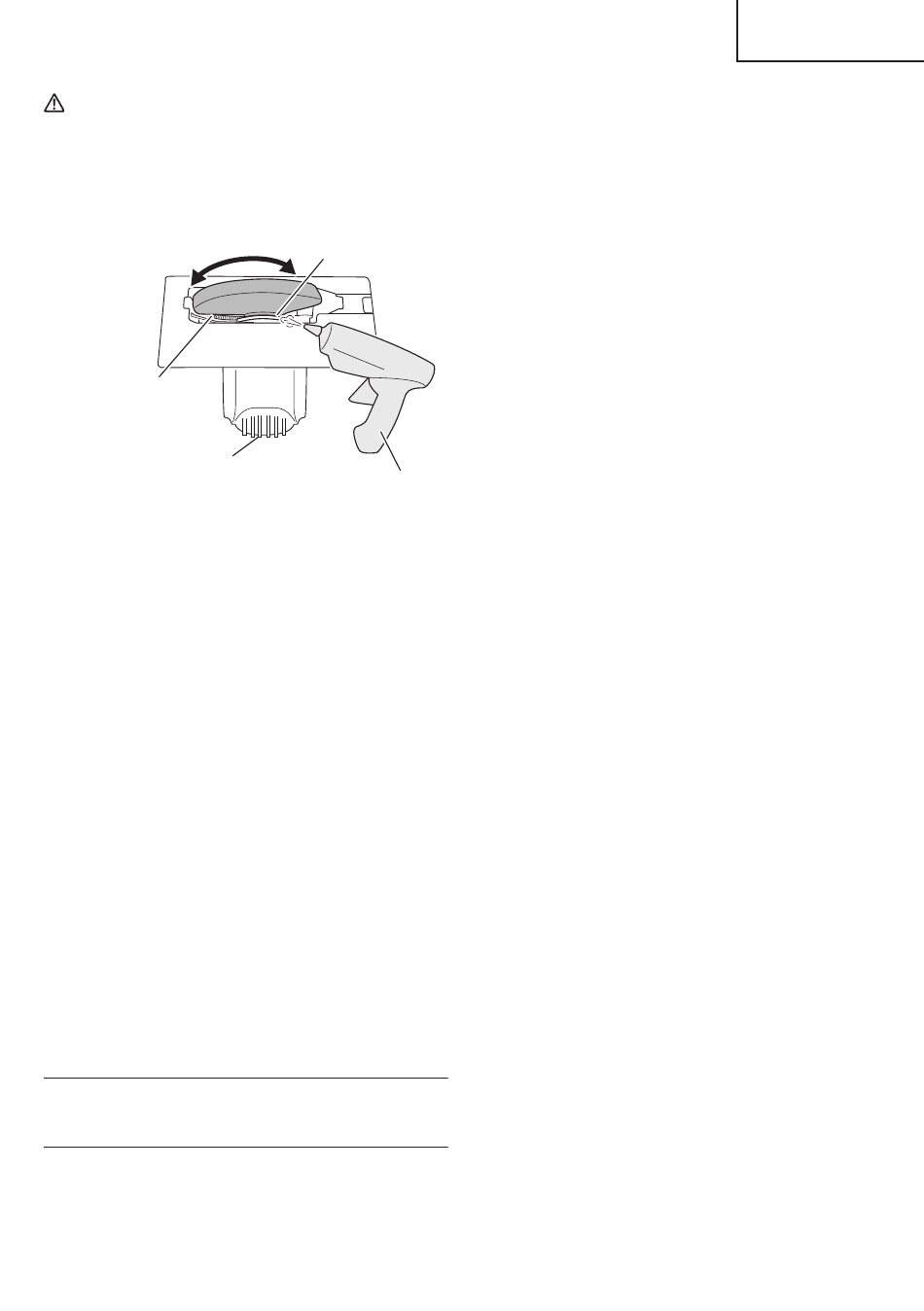

Ensure smooth
movement of lower guard
Space between lower
guard and gear cover
Housing vent
7. Adjusting the base and saw blade to maintain
perpendicularity
The angle between the base and the saw blade has been
adjusted to 90°, however should this perpendicularity be
lost for some reason, adjust in the following manner:
(1) Turn the base face up (Fig. 15) and loosen the wing-nut
and wing-bolt (Fig. 7 (A), Fig. 7 (B)).
(2) Apply a square to the base and the saw blade and turning
the slotted set screw with a slotted-head screwdriver,
shift the position of the base to produce the desired right
angle.
8. Service parts list
A: Item No.
B: Code No.
C: No. Used
D: Remarks
CAUTION
Repair, modifi cation and inspection of Hitachi Power
Tools must be carried out by a Hitachi Authorized Service
Center.
This Parts List will be helpful if presented with the tool to
the Hitachi Authorized Service Center when requesting
repair or other maintenance.
In the operation and maintenance of power tools, the
safety regulations and standards prescribed in each
country must be observed.
MODIFICATION
Hitachi Power Tools are constantly being improved
and modifi ed to incorporate the latest technological
advancements.
Accordingly, some parts (i.e. code numbers and/or
design) may be changed without prior notice.
NOTE
Due to HITACHI's continuing program of research and
development, the specifi cations herein are subject to
change without prior notice.
Rotation part of the
lower guard
Air gun
Fig. 16
