Summary of Contents for Chauvet Ovation F-55WW
- Page 1 User Manual...
- Page 2 Chauvet reserves the right to revise the content of this document without any obligation to notify any person or company of such revision, however, Chauvet has no obligation to make, and does not commit to make, any such revisions. Download the latest version from www.chauvetprofessional.com.
-
Page 3: Table Of Contents
Dimmer Profiles......................10 LED Frequency ......................10 Back Light ........................10 System Information ......................10 Factory Reset......................... 10 5. Technical Information ..............Product Maintenance ..................6. Technical Specifications ............Photometrics Charts..................Returns.................... Contact Us ..................Ovation F-55WW User Manual Rev. 2... -
Page 4: Before You Begin
If the box or the contents (the product and included accessories) appear damaged from shipping, or show signs of mishandling, notify the carrier immediately, not Chauvet. Failure to report damage to the carrier immediately may invalidate your claim. In addition, keep the box and contents for inspection. -
Page 5: Safety Notes
• In the event of a serious operation problem, stop using this product immediately! If your Chauvet product requires service, contact Chauvet Technical Support. Expected LED Lifespan LEDs gradually decline in brightness over time, primarily because of heat. LEDs that are arranged in clusters experience higher operating temperatures than single LEDs. -
Page 6: Introduction

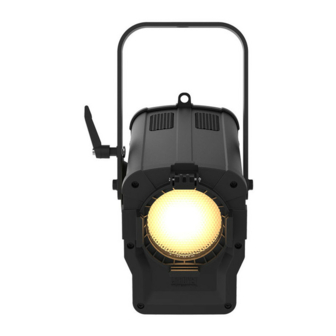

2. Introduction Description The Ovation F-55WW is a warm white LED (3- inch) inkie Fresnel-style fixture ideal for short throw applications in television studios and theatres. It projects a bright, soft field of light within a 30°- 69° field angle controlled by a manual zoom. -
Page 7: Product Dimensions
Introduction Product Dimensions 6.81 in 173 mm 4.64 in 118.4 mm 6.53 in 166.3 mm 10.87 in 276.3 mm 3.3 in 84 mm Ovation F-55WW User Manual Rev. 2 Page 4 of 15... -
Page 8: Setup
Green/Yellow Green/Yellow Green DMX Linking The Ovation F-55WW will work with a DMX controller using a 5-pin DMX serial connection. A DMX Primer is available from www.chauvetprofessional.com. DMX Personalities The Ovation F-55FC uses a 5-pin DMX for its DMX personalities: 1, 2, or 5. Refer to the Introduction chapter for a brief description of each DMX personality. -
Page 9: Mounting
Procedure The Ovation F-55WW comes with a bracket to which you can attach a mounting clamp directly. You must supply the mounting clamps. Make sure the clamps are capable of supporting the weight of this product. Use at least one mounting point per product. For the CHAUVET Professional line of mounting clamps, go to http://www.trusst.com/products. -
Page 10: Operation
Knob 1 Push then turn to increase or decrease the dimmer Knob 2 Push then turn to increase or decrease the zoom Control Options Set the Ovation F-55WW starting address in the 001–512 DMX range. This enables control of up to 102 products in the 5-channel personality. Programming Refer to the Menu Map to understand the menu options. -
Page 11: Configuration (Dmx)
Go to the DMX Address main level. Select the starting address (001–512). The highest recommended starting address for each DMX mode is as follows: Personality Address 5 Ch 2 Ch 1 Ch Ovation F-55WW User Manual Rev. 2 Page 8 of 15... -
Page 12: Dmx Values
The auto programs cannot be edited. Master/Slave The Master/Slave mode allows a group of Ovation F-55WW products (the slaves) to simultaneously duplicate the output of another Ovation F-55WW (the master) without a DMX controller. To set each of the slaves: Go to the Master/Slave main level Select Slave. -
Page 13: Dimmer Profiles
Select the desired option (Linear, Square, I Square, or SCurve). Dimmer Profiles This setting determines how fast the output of the Ovation F-55WW changes when you modify the output value. This setting provides four different options to simulate the dimming curve of an incandescent lighting product. -
Page 14: Technical Information
Technical Information 5. Technical Information Product Maintenance To maintain optimum performance and minimize wear, clean this product frequently. Usage and environment are contributing factors in determining the cleaning frequency. Clean this product at least twice a month. Dust build-up reduces light output performance and can cause overheating. -
Page 15: Technical Specifications
Maximum External Temperature 113 °F (45 °C) I/O Connector Channel Range 5-pin XLR 1, 2, or 3 Ordering Product Name Item Name Item Code UPC Number Ovation F-55WW OVATIONF55WW 03031385 781462217334 Ovation F-55WW User Manual Rev. 2 Page 12 of 15... -
Page 16: Photometrics Charts
6.34 m 10.72 m 21.27 m 27.49 m 25 m 7.92 m 13.40 m 26.59 m 34.36 m 30 m 9.50 m 16.08 m 31.90 m 41.24 m Field Beam Field Page 13 of 15 Ovation F-55WW User Manual Rev. 2... -
Page 17: Returns
Returns Returns Send the product prepaid, in the original box, and with the original packing and accessories. Chauvet will not issue call tags. Call Chauvet and request a Return Merchandise Authorization (RMA) number before shipping the product. Be prepared to provide the model number, serial number, and a brief description of the cause(s) for the return. -
Page 18: Contact Us
Visit the applicable website above to verify our contact information and instructions to request support. Outside the US, UK, Ireland, France, Germany, Benelux, or Mexico, contact the dealer of record. Page 15 of 15 Ovation F-55WW User Manual Rev. 2...
