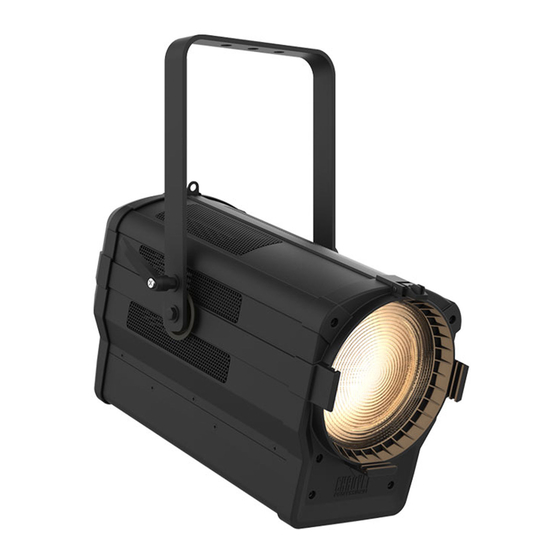

Germany: www.chauvetlighting.eu/warranty-registration/. Chauvet warrants that this product shall be free from defects in material and workmanship under normal use, for the period specified in and subject to the exclusions and limitations set forth in, the full limited warranty on our website. This warranty extends only to the original purchaser of the product and is not transferable.
This product has an auto-ranging power supply that can work with an input voltage range of 100–240 VAC, 50/60 Hz. Power Linking It is possible to link up to 7 Ovation F-915VW products at 120 VAC, 13 products at 208 V, or 14 products at 230 VAC. Never exceed this number. Power-linking cords can be purchased separately.
5000–5100K 245 255 8000K The color temperatures above are simulated renditions of the color output produced compared with a tungsten lamp at the specified color temperature. Chauvet makes no guarantee of the color output accuracy. Control Panel Description Button Function <MENU>...
Page 5
Slave Receives DMX signal from the master unit Linear Square Dimmer Sets the dimmer curve Curve I Square SCurve Linear dimmer Dimmer Dimming curves, from fast (Dimmer 1) to slow Mode Dimmer 1–3 (Dimmer 3) Ovation F-915VW QRG Rev. 6...
Page 6
Use proper protective equipment to prevent burns. Keep a safe distance from flammable objects. NOTICE: When operating in Fan Mode: Off, output of the fixture will be reduced and will not reach the same levels as when using other fan modes. Ovation F-915VW QRG Rev. 6...
000 255 0–100% 000 010 No function Strobe 011 255 Strobe, slow to fast Zoom 000 255 Narrow to wide 000 010 No function Red shift 011 127 128 255 Ovation F-915VW QRG Rev. 6...
Page 8
000 255 -25–25 Zoom 000 255 Narrow to wide 000 010 No function Strobe 011 255 Strobe, slow to fast 000 010 No function Red shift 011 127 128 255 Ovation F-915VW QRG Rev. 6...
Page 9
No function Red shift 011 127 128 255 Channel Function Value Percent/Setting Dimmer 000 255 0–100% (color set through menu) 000 010 No function Red shift 011 127 128 255 Ovation F-915VW QRG Rev. 6...
Para clientes en Reino Unido, República de Irlanda, Bélgica, Países Bajos, Luxemburgo, Francia y Alemania: www.chauvetlighting.eu/warranty-registration/. Chauvet garantiza que este producto estará libre de defectos de material y mano de obra en condiciones de uso normales, durante el periodo especificado, sujeto siempre a las exclusiones y limitaciones establecidas en la garantía limitada completa de nuestro sitio web.
240 VCA, 50/60 Hz. Alimentación en Cadena Puede enlazar hasta 7 productos Ovation F-915VW a 120 V, 13 productos a 208 V o 14 productos a 230 V. Nunca sobrepase este número. Los cables de alimentación en cadena se pueden adquirir por separado.
Las temperaturas de color que aparecen arriba son interpretaciones simuladas de la emisión de color producida cuando se compara con una lámpara de tungsteno a la temperatura de color especificada. Chauvet no garantiza la exactitud del color emitido. Descripción del Panel de Control Botón...
Page 13
Master/ Slave Slave Recibe señales del maestro Linear Square Dimmer Configura la curva del atenuador Curve I Square SCurve Atenuador lineal Dimmer Curvas de atenuador, rápido (Dimmer 1) a lento Mode Dimmer 1–3 (Dimmer 3) Ovation F-915VW QRG Rev. 6...
Page 14
Utilice un equipo de protección adecuado para evitar quemaduras. Mantenga una distancia de seguridad con objectos inflamable. AVISO: Cuando funcione en modo ventilador: apagado, bajará el rendimiento del aparato y no alcanzará los mismos niveles que cuando use otros modos de ventilador. Ovation F-915VW QRG Rev. 6...
Page 15
000 010 Sin función Estroboscopio 011 255 Estroboscopio, lento a rápido Zoom 000 255 Estrecho a ancho 000 010 Sin función Cambio de rojo 011 127 Encendido 128 255 Apagado Ovation F-915VW QRG Rev. 6...
Page 16
000 255 Estrecho a ancho 000 010 Sin función Estroboscopio 011 255 Estroboscopio, lento a rápido 000 010 Sin función Cambio de rojo 011 127 Encendido 128 255 Apagado Ovation F-915VW QRG Rev. 6...
Page 17
128 255 Apagado Canal Función Valor Porcentaje/Configuración Atenuador 000 255 0–100% (configura el color desde la pantilla de menú) 000 010 Sin función Cambio de rojo 011 127 Encendido 128 255 Apagado Ovation F-915VW QRG Rev. 6...
MANUEL DE RÉFÉRENCE À Propos de ce Manuel Le Manuel de Référence du Ovation F-915VW (MR) reprend des informations de base sur cet appareil notamment en matière de connexions, montage, options de menu et valeurs DMX. Télécharger le Manuel d'Utilisation sur www.chauvetprofessional.com...
VCA, 50/60 Hz. Connexion Électrique Vous pouvez connecter jusqu’à 7 Ovation F-915VW à 120 V, 13 unités à 208 V ou 14 unités à 230 V. Ne dépassez jamais cette limite. Vous pouvez vous procurer séparément des cordons d'alimentation. Prise CA Connexion Câble (États-Unis)
Page 20
Les températures de couleur ci-dessus sont des rendus simulés de la sortie de couleur effectivement générée par comparaison avec une lampe tungstène à la température de couleur spécifiée. Chauvet ne donne aucune garantie sur la précision de la sortie de couleur. Description du Tableau de Commandes...
Page 21
Recevoir le signal de l'unité maître (esclave) Linear Square Dimmer Définir la courbe de gradation Curve I Square SCurve Gradateur linéaire Dimmer Courbes de gradation rapide (Dimmer 1) à lent Mode Dimmer 1–3 (Dimmer 3) Ovation F-915VW QRG Rev. 6...
Page 22
REMARQUE: Lors du functionnement en mode ventilateur: Lorsque le ventilateur est à l’arret, le rendement de l’appareil est réduit et ne peut pas atteindre lesmêmes niveaux que lors de l’utilisation des autres modes de ventilateur. Ovation F-915VW QRG Rev. 6...
Page 23
000 010 Pas de fonction Stroboscope 011 255 Stroboscope, lent à rapide Zoom 000 255 Étroit à large 000 010 Pas de fonction Décalage rouge 011 127 Activé 128 255 Desactivé Ovation F-915VW QRG Rev. 6...
Page 24
000 255 Étroit à large 000 010 Pas de fonction Stroboscope 011 255 Stroboscope, lent à rapide 000 010 Pas de fonction Décalage rouge 011 127 Activé 128 255 Desactivé Ovation F-915VW QRG Rev. 6...
Page 25
Activé 128 255 Desactivé Canal Fonction Valeur Pourcentage/Configuration Gradateur 000 255 0–100% (couleur définie par le menu) 000 010 Pas de fonction Décalage rouge 011 127 Activé 128 255 Desactivé Ovation F-915VW QRG Rev. 6...
SCHNELLANLEITUNG Über diese Schnellanleitung In der Schnellanleitung des Ovation F-915VW finden Sie die wesentlichen Produktinformationen, wie etwa über den Anschluss, die Montage, Menüoptionen und DMX-Werte des Geräts. Laden Sie für weiterführende Informationen unter www.chauvetprofessional.com das Benutzerhandbuch herunter. Haftungsausschluss Die in dieser Anleitung aufgeführten Informationen und Spezifikationen können ohne vorherige Ankündigung geändert werden.
Page 27
Serienschaltung der Geräte Sie können bis zu 7 Ovation F-915VW Geräte bei 120 V AC, 13 Geräte bei 208 V und 14 Geräte bei 230 V AC in Serie schalten. Diese Anzahl niemals überschreiten! Stromkabel für die Serienschaltung können separat erworben werden.
Lesen Sie vor der Montage dieses Geräts die Sicherheitshinweise. Mindestens einen Befestigungspunkt pro Gerät verwenden. Stellen Sie sicher, dass die Befestigungsklemmen dafür ausgelegt sind, das Produktgewicht tragen zu können. Informationen zu unserer CHAUVET-Produktlinie für Befestigungsklemmen finden Sie unter http://trusst.com/productcategory/truss-clamps/. Ansicht Gerätemontage...
Page 29
161 167 5000–5100K 245 255 8000K Die oben genannten Farbtemperaturen sind simulierte Ähnlichkeiten der Farbausgabe im Vergleich zu einer Wolframlampe mit spezifizierter Farbtemperatur. Chauvet gibt keine Gewährleistung bezüglich der Genauigkeit der Farbausgabe. Descripción del Panel de Control Taste Funktion <MENU>...
Page 30
Empfängt DMX-Signal vom DMX-Controller (Master) Master/ Slave Slave Empfängt das DMX-Signal vom Master-Gerät Linear Square Dimmer Stellt die Dimmungskurve ein Curve I Square SCurve Linearer Dimmer Dimmer Dimmkurven von schnell (Dimmer 1) bis langsam Mode Dimmer 1–3 (Dimmer 3) Ovation F-915VW SAL Rev. 6...
Page 31
Verwendung anderer Lüftermodi. Verwenden Sie geeignete Schutzausrüstung, um Verbrennungen zu vermeiden. Halten Sie einen Sicherheitsabstand zu brennbaren Gegeständen ein. HINWEIS: Im Lüftermodus: Aus wird der Ausgang des Geräts reduziert und erreicht nicht die gleichen Pegel wie bei Verwendung anderer Lüftermodi. Ovation F-915VW SAL Rev. 6...
Page 32
000 255 0–100% 000 010 Keine Funktion Stroboskop 011 255 Stroboskopeffekt, langsam bis schnell Zoom 000 255 Eng bis weit 000 010 Keine Funktion Rotverschiebung 011 127 128 255 Ovation F-915VW SAL Rev. 6...
Page 33
000 255 -25–25 Zoom 000 255 Eng bis weit 000 010 Keine Funktion Stroboskop 011 255 Stroboskopeffekt, langsam bis schnell 000 010 Keine Funktion Rotverschiebung 011 127 128 255 Ovation F-915VW SAL Rev. 6...
Page 34
000 010 Keine Funktion Rotverschiebung 011 127 128 255 Kanal Funktion Wert Prozent/Einstellung Dimmer 000 255 0–100% (Farbeinstellung über Menü) 000 010 Keine Funktion Rotverschiebung 011 127 128 255 Ovation F-915VW SAL Rev. 6...
Voor klanten in het Verenigd Koninkrijk, Ierland, België, Nederland, Luxemburg, Frankrijk en Duitsland: www.chauvetlighting.eu/warranty-registration/. Chauvet garandeert dat dit product bij normaal gebruik vrij zal blijven van defecten in materiaal en vakmanschap, voor de opgegeven periode en onder voorbehoud van de uitzonderingen en beperkingen die zijn uiteengezet in de volledige beperkte garantie op onze website.
Page 36
Dit product heeft een voeding met automatisch bereik die werkt met een ingangsspanning van 100–240 VAC, 50/60 Hz. Power Linking U kunt tot 7 Ovation F-915VW-producten koppelen bij 120 V, 13 producten bij 230 V, 14 producten bij 230 V. Dit aantal niet overschrijden. Power Linking-snoeren kunnen apart aangeschaft worden.
Page 37
BEKNOPTE HANDLEIDING Montage Lees alvorens dit product te monteren alle Veiligheidsinstructies. Controleer of de montageklem het gewicht van het product kan dragen. Ga voor onze Chauvet-serie montageklemmen naar http://trusst.com/productcategory/truss-clamps/. Montagediagram van het product Montageklem Montagebeugel Veiligheidskabel Montage boven het hoofd...
Page 39
Master/ Slave Slave Ontvangt DMX-signalen van de master Linear Square Dimmer Stelt de dimcurve in Curve I Square SCurve Lineaire dimmer Dimmer Selecteert dimprofielen van snel (Dimmer 1) tot Mode Dimmer 1–3 langzaam (Dimmer 3) Ovation F-915VW QRG Rev. 6...
Page 40
Gebruik de juiste beschermende uitrusting om brandwonden te voorkomen. Houd een veilige afstand van brandbare voorwerpen. LET OP: Bij werking in de ventilatormodus: Uit, uitvoer van de armatuur wordt verminderd en zal niet dezelfde niveaus bereiken als bij andere ventilatormodi. Ovation F-915VW QRG Rev. 6...
Page 41
000 255 0–100% 000 010 Geen functie Stroboscoop 011 255 Stroboscoop, langzaam tot snel Zoom 000 255 Smal tot breed 000 010 Geen functie Rode shift 011 127 128 255 Ovation F-915VW QRG Rev. 6...
Page 42
000 255 -25–25 Zoom 000 255 Smal tot breed 000 010 Geen functie Stroboscoop 011 255 Stroboscoop, langzaam tot snel 000 010 Geen functie Rode shift 011 127 128 255 Ovation F-915VW QRG Rev. 6...
Visit the applicable website above to verify our contact information and instructions to request support. Outside the U.S., U.K., Ireland, Benelux, France, Germany, or Mexico, contact the dealer of record. UL 1573 CSA C22.2 No. 166 E113093 Ovation F-915VW QRG Rev. 6...
