3.5

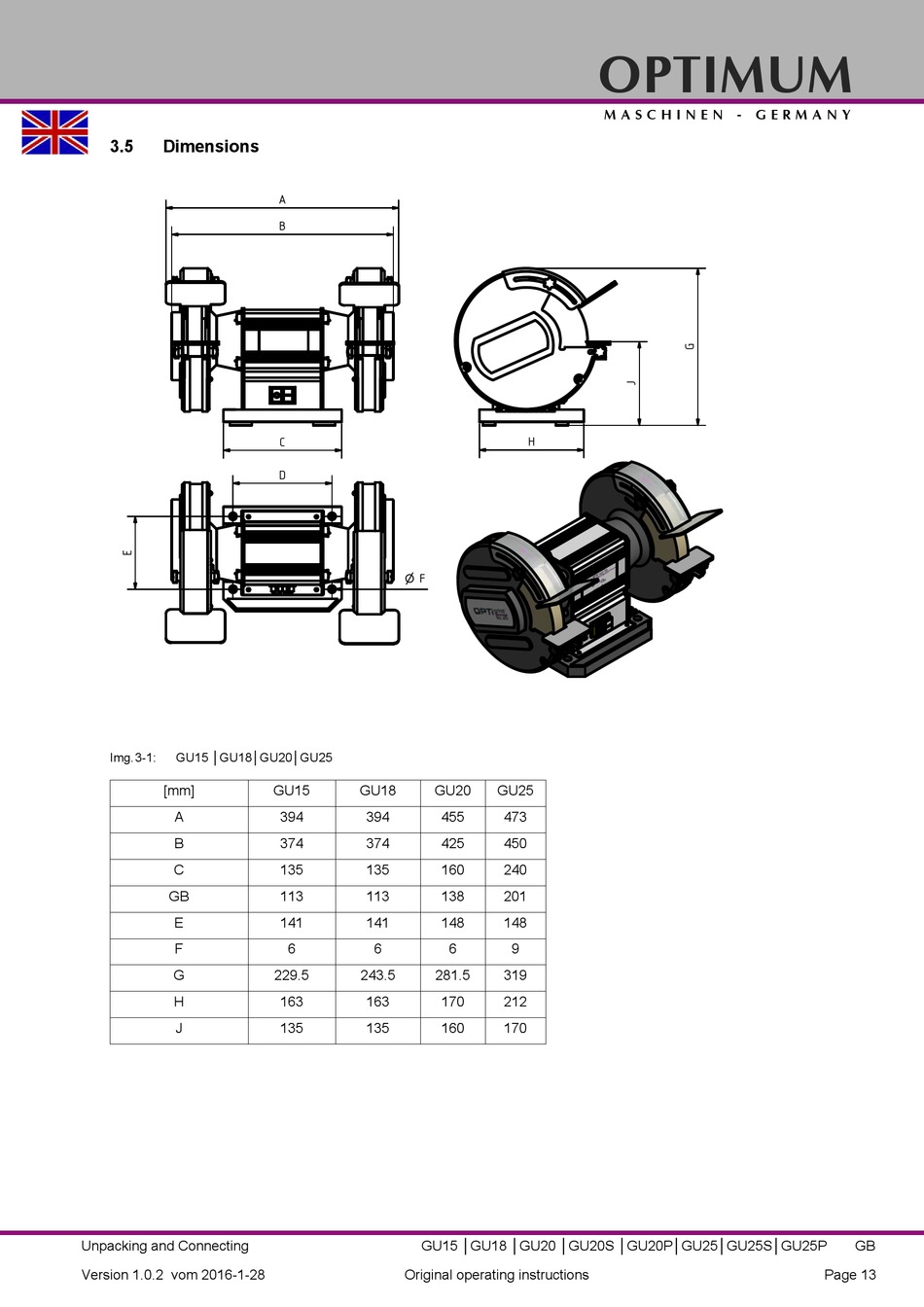

Dimensions

Img.3-1: GU15 │GU18│GU20│GU25
[mm]
A
B
C
GB
E
F
G
H
J
Unpacking and Connecting
Version 1.0.2 vom 2016-1-28
A
B
C
D
F
P
GU15 GU18 GU20
394 394 455
374 374 425
135 135 160
113 113 138
141 141 148
6 6
229.5 243.5 281.5
163 163 170
135 135 160
GU15 │GU18 │GU20 │GU20S │GU20P│GU25│GU25S│GU25P
Original operating instructions
OPTIMUM
M A S C H I N E N - G E R M A N Y
H
GU25
473
450
240
201
148
6 9
319
212
170
