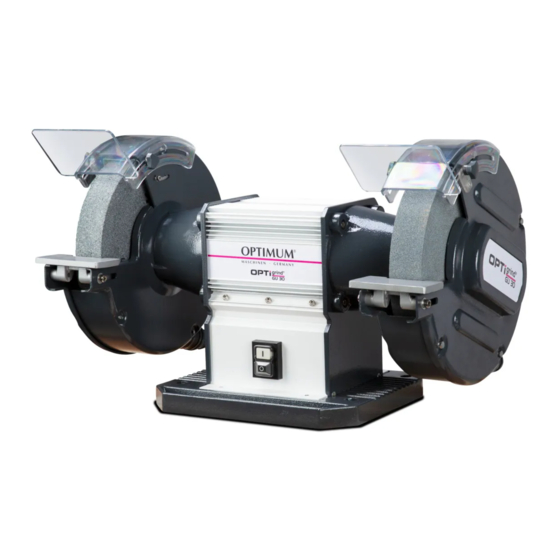

- Page 1 Safety Operating manual - EN Technical specification Version 1.0.1 Delivery, interdepartmental transport and unpacking Grinding machine Operation Maintenance Appendix GU 30 Ersatzteile - Spare parts Item no. 3101530...
- Page 2 Dear customer, Thank you very much for purchasing a product made by OPTIMUM. OPTIMUM metal working machines offer a maximum of quality, technically optimum solutions and convince by an outstanding price performance ratio. Continuous enhancements and prod- uct innovations guarantee state-of-the-art products and safety at any time.
- Page 3 explains the meaning and use of the warning notes included in these operating instructions, defines the intended use of the grinding machine, points out the dangers that might arise for you or others if these instructions are not observed, ...
-
Page 4: Other Pictograms
We expressly point out that the guarantee will expire, if any constructive, technical or proce- dural changes are not performed by the company Optimum Maschinen Germany GmbH. It is also part of the intended use that you ... -
Page 5: Reasonably Foreseeable Misuse
However, the distance may be greater if the grinding process and the material used require this for security reasons. We expressly point out that the guarantee will expire, if any constructive, technical or proce- dural changes are not performed by the company Optimum Maschinen Germany GmbH. WARNING! Risk of injury caused by flying workpieces. - Page 6 Always disconnect the grinding machine from the electrical power supply before performing cleaning or maintenance tasks. WARNING! The grinding machine may only be used with fully functional safety devices. Disconnect the grinding machine immediately, whenever you detect a failure in the safety devices or when they are not fitted! All additional devices installed by the operator must be equipped with the stipulated safety devices.
-
Page 7: User Positions
and strictly follow these operating instructions. In the event of improper use there may be a risk to personnel, the grinding machine and other property and the functionality of the grinding machine may be compromised. User positions The user position is in front of the grinding machine. - Page 8 Safety check Check the grinding machine regularly. Check all safety devices before starting work, once a week (with the machine in operation) and after all maintenance and repair work. 1.10 Personal protective equipment For certain work personal protective equipment is required. ...
- Page 9 Furthermore, the noise emission also depends on production engineering factors, e.g. speed, material and clamping conditions. INFORMATION The specified numerical value represents the emission level and does not necessarily a safe working level. Though there is a dependency between the degree of the noise emission and the degree of the noise disturbance it is not possible to use it reliably to determine if further precau- tion measures are required or not.
-
Page 10: Technical Specification
Technical specification Electrical connection 3x 400V ~50Hz ( 60 Hz ) Motor power 2.2 kW Weight 83 kg Speed ( 50 Hz ) [ rpm ] 1450 Speed ( 60 Hz ) [ rpm ] 1740 Grinding wheel [mm] Ø 300 x 50 Grinding speed ( 50 Hz ) [ m/s ] Grinding speed ( 60 Hz ) [ m/s ] Suction connection... -
Page 11: Scope Of Delivery
Store packed and unpacked parts only under the intended environmental conditions. Follow the instructions and information on the transport box. Consult Optimum Maschinen Germany GmbH if the machine and accessories are stored for more than three months or are stored under different environmental conditions than those spec- ified here. -
Page 12: First Commissioning
Dimensions Img.3-1: GU 30 First commissioning ATTENTION! Before commissioning the machine, all bolts, fastenings and protections must be checked and retightened as necessary! WARNING! Danger due to the use of unsuitable grinding wheels. Only use grinding wheels that withstand the speed requirements and occurring loads. WARNING! First commissioned of the grinding machine by inexperienced personnel constitute a risk to personnel and equipment. -
Page 13: Suction Connection
stone, however, the imbalance of the machine can be reduced by turning the grinding wheel, e.g. by 180° on the grinding wheel shaft. 3.6.1 Suction connection 3.6.2 Power supply Connect the electrical supply cable. Check the fusing (fuse) of your electrical supply. ... -
Page 14: Inspection And Maintenance
Maintenance In this chapter you will find important information about Inspection Maintenance Repair of the grinding machine. ATTENTION! Properly performed regular maintenance is an essential prerequisite for operational safety, failure-free operation, a long working life of the grinding machine and ... -
Page 15: Replacing A Grinding Wheel
Shaft nut Drive shaft Thrust washer Repair Optimum Maschinen Germany GmbH accepts no liability nor does it guarantee against damage and operating malfunctions resulting from failure to observe these operating instructions. For repairs, only use faultless and suitable tools only, ... -
Page 16: Advice For Disposal / Options Of Reuse
- Non reproducible software errors Any services, which OPTIMUM GmbH or one of its agents performs in order to fulfil any additional warranty are neither an acceptance of the defects nor an acceptance of its obli- gation to compensate. These services neither delay nor interrupt the warranty period. -
Page 17: Disposal Of Electrical And Electronic Components
6.3.2 Disposal of new device packaging All used packaging materials and packaging aids from the machine are recyclable and gener- ally need to be supplied to the material reuse. The packaging wood can be supplied to the disposal or the reuse. Any packaging components made of cardboard box can be chopped up and supplied to the waste paper collection. -
Page 18: Change Information Manual
Change information manual Chapter Short note new version no. Interdepartmental transport 1.0.1 Product follow-up We are required to perform a follow-up service for our products which extends beyond ship- ment. We would be grateful if you could inform us of the following: ... -
Page 19: Ersatzteile - Spare Parts
Ersatzteile - Spare parts Ersatzteilbestellung - Ordering spare parts Bitte geben Sie folgendes an - Please indicate the following : Seriennummer - Serial No. Maschinenbezeichnung - Machines name Herstellungsdatum - Date of manufacture Artikelnummer - Article no. Die Artikelnummer befindet sich in der Ersatzteilliste. - Page 20 Ersatzteilzeichnung - Spare parts drawing Abb.7-1: Ersatzteilzeichnung - Spare parts drawing GU30 Menge Grösse Artikelnummer Pos. Bezeichnung Description Qty. Size Item no. Gehäuse Housing 031015301 Gehäuse rechts Housing right 031015302 Abdeckung Cover 031015303 Lagerbock Bearing block 031015304 Abdeckung links Cover left 031015307 Stator Stator...
- Page 21 Gehäuse links Housing left 0310153035 Innensechskantschraube Socket head screw ISO 4762 - M8 x 16 Federring Spring ring DIN 128 - A8 Klemmschraube Clamping screw 0310153039 Innensechskantschraube Socket head screw ISO 4762 - M6 x 10 Innensechskantschraube Socket head screw ISO 4762 - M8 x 12 Stromkabel Power line...
-
Page 22: Ec Declaration Of Conformity
EC Declaration of Conformity according to Machinery directive 2006/42/EC, Annex II 1.A The manufacturer/ Optimum Maschinen Germany GmbH Dr.-Robert-Pfleger-Str. 26 Distributor: D - 96103 Hallstadt, Germany hereby declares that the following product Product designation: Grinding machine Type designation: GU30 Bench grinder for private persons, as well as for craft and industrial plants which meets all the relevant pro- visions of the above mentioned Directive 2006/42/EC as well as the other directives applied (below) includ- ing their amendments in force at the time of declaration.
