I N S T A L L A T I O N I N S T R U C T I O N S
Confidence Carts
MFM, PFM, MFQ, PFQ

Advertisement

loading
Need help?

Need help?

Do you have a question about the MFM and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for CHIEF MFM

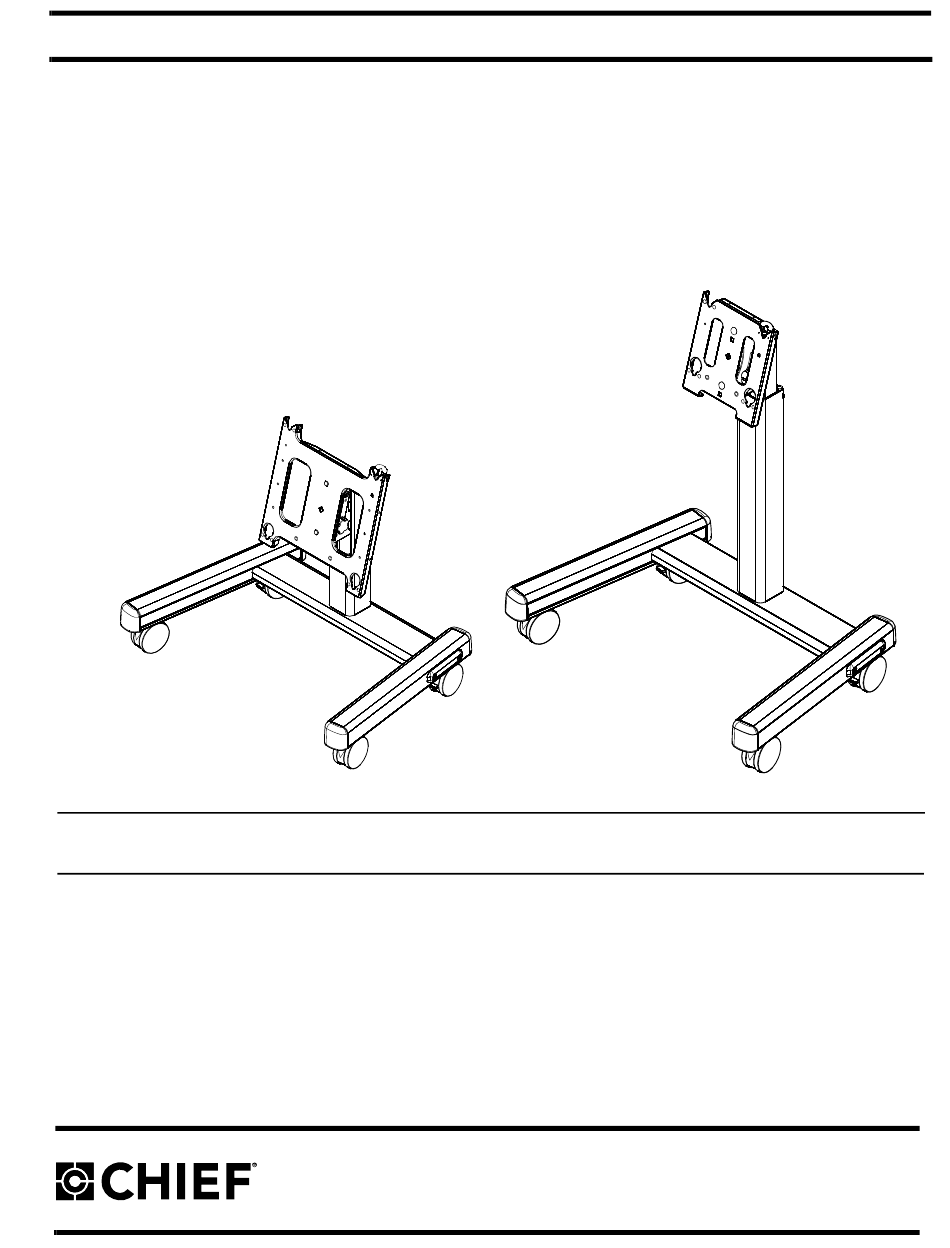

  • Page 1 I N S T A L L A T I O N I N S T R U C T I O N S Confidence Carts MFM, PFM, MFQ, PFQ...
  • Page 2: Important Warnings And Cautions

    125 lbs (56.70 WARNING: A WARNING alerts you to the possibility of kg) for the MFM and MFQ, and 200 lbs (90.72 kg) for the serious injury or death if you do not follow the instructions. PFM and PFQ.
  • Page 3 Installation Instructions MFM, PFM, MFQ, PFQ DIMENSIONS [918] NOTE: CUSTOM INTERFACE BRACKET 36-1/8” NOT SHOWN. THE CUSTOM INTERFACE BRACKET NEEDED FOR YOUR DISPLAY WILL ADD BETWEEN ½”AND 2” IN DEPTH AND MAY AFFECT LOCATION OF DISPLAY ON THE MOUNT. SEE PSBU DRAWING ALSO.
  • Page 4 MFM, PFM, MFQ, PFQ Installation Instructions DIMENSIONS [918] 36-1/8” NOTE: CUSTOM INTERFACE BRACKET NOT SHOWN. THE CUSTOM INTERFACE BRACKET NEEDED FOR YOUR DISPLAY WILL ADD BETWEEN ½”AND 2” IN DEPTH AND MAY AFFECT LOCATION OF DISPLAY ON THE MOUNT. SEE PSBU DRAWING ALSO.
  • Page 5 Installation Instructions MFM, PFM, MFQ, PFQ LEGEND Tighten Fastener Pencil Mark Apretar elemento de fijación Marcar con lápiz Befestigungsteil festziehen Stiftmarkierung Apertar fixador Marcar com lápis Serrare il fissaggio Segno a matita Bevestiging vastdraaien Potloodmerkteken Serrez les fixations Marquage au crayon...
  • Page 6: Tools Required For Installation

    MFM, PFM, MFQ, PFQ Installation Instructions TOOLS REQUIRED FOR INSTALLATION 3/16" (Provided) PARTS A (1) (left) B (1) (right) C (1) MFQ/PFQ F (2) Only D (1) MFM/PFM Only E (1) G (1) J (1) MFM/MFQ H (1) MFM/PFM Only...
  • Page 7 Installation Instructions MFM, PFM, MFQ, PFQ ASSEMBLY Attach center post (C or D) to leg assembly using four 5/16-18 x 2-3/4" button head cap screws (M) and four 5/16" washers (P). (See Figures 2 and 3) CAUTION: Attachment holes may be damaged if a power (C) or (D) drill is used to insert button head cap screws.
  • Page 8 DAMAGE TO EQUIPMENT! It is the installer’s responsibility to ensure the total amount of weight placed on the cart does not exceed 125 lbs (56.70 kg) for the MFM and MFQ, and 200 lbs (90.72 kg) for the PFM and PFQ.
  • Page 9 Installation Instructions MFM, PFM, MFQ, PFQ Tilting Display The display can be tilted from 15 to 45 Turn knob counterclockwise on back of head assembly to loosen the tilt. (See Figure 9) (Rear view of center post) Exit for Place optional bolt...
  • Page 10 This cart is intended for use only with the products and maximum weights indicated (125 lbs (56.70 kg) for the MFM and MFQ, and 200 lbs (90.72 kg) for the PFM and PFQ). Use with other products or products heavier than the maximum weights indicated may result in instability causing possible injury.
  • Page 11 Installation Instructions MFM, PFM, MFQ, PFQ Remove bolt or padlock if used Pin in "Closed" position - move to "Open" position to remove display Pin in "Open" position - move to "Closed" position after display is removed. Figure 14...
  • Page 12 MFM, PFM, MFQ, PFQ Installation Instructions USA/International A 8401 Eagle Creek Parkway, Savage, MN 55378 P 800.582.6480 / 952.894.6280 F 877.894.6918 / 952.894.6918 Europe A Fellenoord 130 5611 ZB EINDHOVEN, The Netherlands P +31 (0)40 2668620 F +31 (0)40 2668615...
