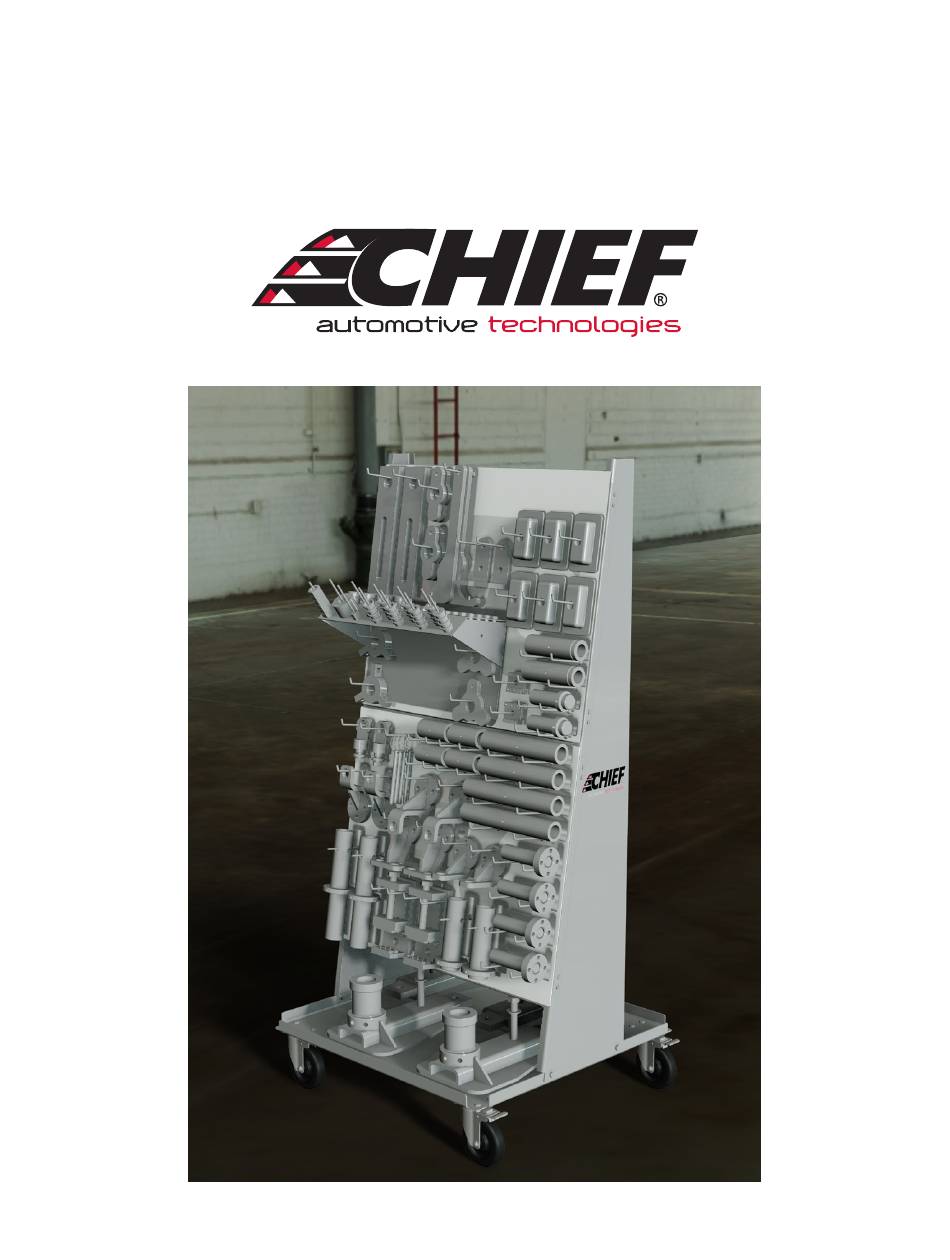

- Page 1 STRUCTURAL HOLDING, F150 TOOL BOARD, AND CART ASSEMBLY 150006 2014 © Chief Automotive Technologies CO9110.1 Rev. A 12/19/14...
- Page 2 F150 Structural Holding Tool Board Cart Step 1: Caster Assembly. A.) Assemble 5”Casters using (4) M8 x 1.25 x 16mm Lg. HHCS and (4) M8 x 1.25 Hex Lock Nuts. M8 x 1.25 Hex Lock Nut #41541 5” Directional Lock Casters #788980 5”...
- Page 3 Step 3: Rear Cart Support Assembly. A.) Assemble the Rear Cart Support using (4) M8 x 1.25 x 16mm Lg. HHCS and (4) M8 x 1.25 Hex Lock Nuts. Step 4: Cart Disk and Hairpin Cotter Pin. A.) Install the (2) Cart Disk followed by (2) Hairpin Cotter Pins.
- Page 4 Step 6: Board Assembly “B”. A.) Assemble Board Assembly “B” to the Cart Tower Supports using (8) Phillips Pancake Head Self Drilling Screws. For driving screws, use #2 Square Drive Power Bit, 619295 provided (Do Not attempt using Phillips Drive). Board Assembly “B”...
- Page 5 Step 8: Board Assembly “C”. A.) Assemble Board Assembly “C” to the Cart Tower Supports using (8) Phillips Pancake Head Self Drilling Screws. For driving screws, use #2 Square Drive Power Bit, 619295 provided (Do Not attempt using Phillips Drive). Board Assembly “C”...
- Page 6 Step 9: Bolt Tray and Long Tool Board Hangers (Tool Board “A”). A.) Attach the Bolt Tray using (4) Long Tool Board Hangers and (8) 1/4”-20NC Hex Lock Nuts. B.) Assemble the remaining Long Tool Board Hangers using (2) 1/4”-20NC Hex Lock Nuts. Bolt Tray #502062 1/4”-20NC Hex Lock Nut...
- Page 7 Step 11: Tool Board Hangers (Tool Board “B”). A.) Assemble (4) Straight Tool Board Hangers to Tool Board “B” using (8) 1/4”-20NC Hex Lock Nuts. B.) Assemble the remaining Long Tool Board Hangers to Tool Board “B” using 1/4”-20NC Hex Lock Nuts.
- Page 8 Step 12: Bolt Tray and Long Tool Board Hangers (Tool Board “C”). A.) Attach the Bolt Tray to Tool Board “C” using (2) 1/4”-20NC x 1/2” Lg. Hex Head Bolts and (2) 1/4”-20NC Hex Lock Nuts. B.) Assemble the remaining Long Tool Board Hangers using (2) 1/4”-20NC Hex Lock Nuts.
- Page 9 Step 14: Tool Board “A”. A.) Assemble Tools to Long Tool Board Hangers. Spanner Wrench, Large #502067 Spanner Wrench, Small #502068 RH Wing Nut #502015 Wrist Block #502060 Fastener Plate #607371 Base Plate #502031 Turn Buckle Center Tube #502034 Lower Adapter #502033 Rigging Nut LH Wing Nut...
- Page 10 Step 15: Tool Tray (Tool Board “A”). A.) Assemble Hardware to Straight Tool Board Hangers. M12 x 1.75 x 45mm Lg. Hex Head Cap Screw #539021 M12 x 1.75 x 35mm Lg. Socket Low Head Cap Screw M20 x 2.5 x 160mm Lg. M12 Flat Washer #502045 Hex Head Cap Screw...
- Page 11 Step 16: Tool Board “B”. A.) Assemble Tools to Long Tool Board Hangers. B.) Assemble Tools to Straight Tool Board Hangers. Release Pin 10” Extension Tube #502058 #502061 4” Extension Tube Angle Adapter Clamp #502016 #502026 Short Vertical Fixture #502000 Tall Vertical Fixture #502008 Large Horizontal...
- Page 12 A.) Assemble Tools to Long Tool Board Hangers. C Hanger #619008 Parts Holding Attachment #611311Y Pinch Jaw w/Nails #498110 F150 Running F150 Vertical Board Bracket Clamp #640114 #640076 F150 Cab Mount F150 Pinchweld #640120 Base F150 Cab Mount #640004 Support Plate #640100 EZ-Liner Tie Bolt Plate #682953...
- Page 13 Step 18: Tool Tray (Tool Board “C”). A.) Assemble Hardware to Straight Tool Board Hangers. M20 x 2.5 x 60mm M20 x 2.5 x 110mm Hex Head Bolt Hex Head Bolt #539006 M12 x 1.75 x 100mm Lg. #539015 Hex Head Flange Bolt 3/8”-16NC x 1/2”...
- Page 14 NOTES:...
- Page 15 NOTES:...
- Page 16 966 Industrial Dr. Madison, IN 47250 Phone: 800.445.9262 Fax: 866.275.0173 www.chiefautomotive.com Chief reserves the right to alter product specifications and/or package components without notice.
