To change the direction of the jet, turn the stem clockwise or anticlockwise while the body of the sprinkler is
held fast.
This adjustment must be made while the system is in operation.
1
1

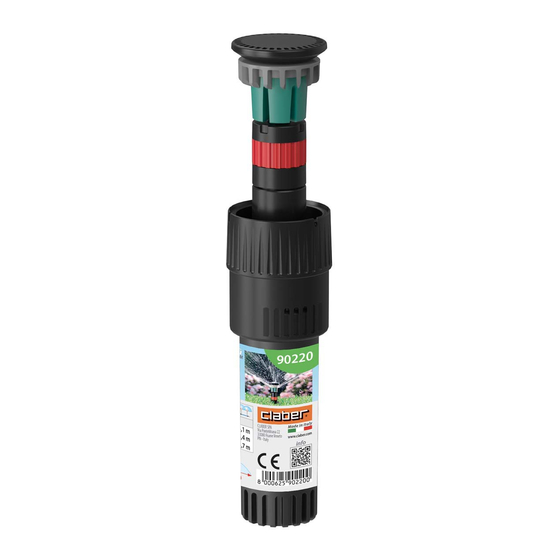

For Colibrì 90° - 180° (cod.): 90230 - 90220
To increase or reduce the length of the jet:
- unscrew the upper part of the sprinkler
- turn the 3mm hex socket screw anticlockwise for a shorter jet or clockwise for a longer one.
1
1
For Colibrì 90° - 180° - 360° (cod.): 90230 - 90220 - 90210
Colibrì
Colibrì
Page 1
2
2
2
2
a
a
b
b
3mm
-
+
User manual
User manual
3
3
3
3
c
c
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for claber Colibri Series
Summary of Contents for claber Colibri Series
- Page 1 Colibrì Colibrì User manual User manual Page 1 To change the direction of the jet, turn the stem clockwise or anticlockwise while the body of the sprinkler is held fast. This adjustment must be made while the system is in operation. For Colibrì...
- Page 2 Colibrì Colibrì User manual User manual Page 2 Should the turbine become fouled by grit, sand, soil or other dirt, proceed as follows: - holding the sprinkler collar fast with one hand, unscrew the upper part - take out the lter and clean it, together with the upper part of the sprinkler, under running water - reposition the lter and reassemble the upper part of the sprinkler.
