edelkrone FocusONE User Manual

Hide thumbs
1
2
3
4

Advertisement

Quick Links

Download this manual
Enlarged version
FOCUSONE
USER'S MANUAL
Before operating your edelkrone,
please watch the user's manual video.
TABLE OF CONTENTS
1.
WHAT'S IN THE BOX & THE BASICS
2.
ATTACHING LENS GEAR
3.
MOUNTING YOUR FOCUSONE
4.
SETTING THE CONTROL WHEEL
5.
MARKING A FOCUS POINT
6.
ADJUSTING THE GEAR PLAY

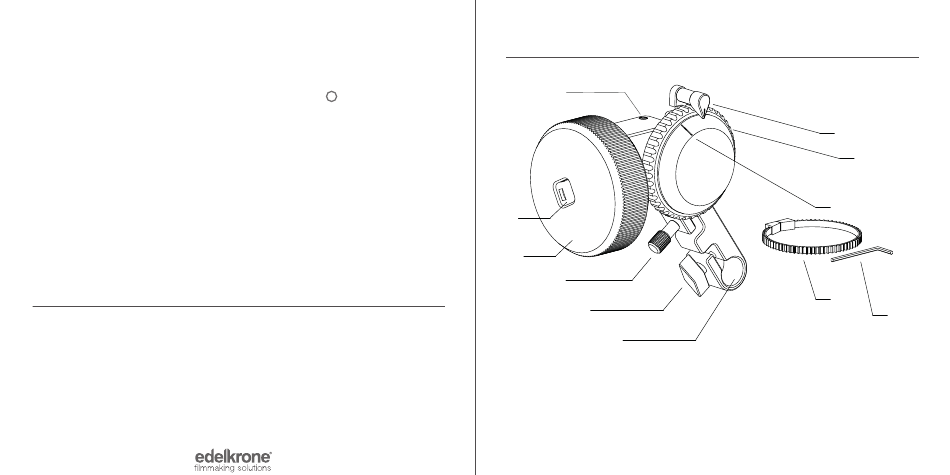

1. WHAT'S IN THE BOX & THE BASICS
R
1
2
3
4
5
6
1.
Gear play adjustment screw
2.
Accessory port
3.
Control wheel
4.
Control wheel angle adjustment
screw (Silver thumb screw)
5.
Thumb screw
7
8
9
10
11
6.
15mm rod clamp
7.
Focus point marker
8.
0.8 pitch gear
9.
Marking disc
10.
Lens gear
11.
2.5mm allen wrench

Advertisement

loading
Need help?

Need help?

Do you have a question about the FocusONE and is the answer not in the manual?

Questions and answers

Related Manuals for edelkrone FocusONE

Summary of Contents for edelkrone FocusONE

  • Page 1 1. WHAT’S IN THE BOX & THE BASICS FOCUSONE USER’S MANUAL Before operating your edelkrone, please watch the user’s manual video. TABLE OF CONTENTS WHAT’S IN THE BOX & THE BASICS ATTACHING LENS GEAR MOUNTING YOUR FOCUSONE Gear play adjustment screw...
  • Page 2 3. MOUNTING YOUR FOCUSONE Attach FocusONE to the 15 mm rod. Make sure that the gear on your FocusONE is aligned with the gear on your lens. While pushing your FocusONE towards to your lens, tighten the thumb screw. If you have a video lens, you don’t need to attach Lens Gear and may skip this step.
  • Page 3 4. SETTING THE CONTROL WHEEL 5. MARKING A FOCUS POINT The best way to use your FocusONE is finding your focus point with the control The control wheel can be adjusted to fit your shooting style. wheel and aligning the disc with the focus point marker as precisely as possible Loosen the silver thumb screw.
  • Page 4 6. ADJUSTING THE GEAR PLAY DISCLAIMER edelkrone cannot be held responsible for damage caused by improper use or modification of the product. For more information and tips on FocusONE, please watch the user’s manual videos at: manuals.edelkrone.com You can easily adjust the gear play with a small flat head screw driver. While checking the play from the control wheel, tighten the screw to a point that is still comfortable to control the wheel.
