YEARS: 2016
MAKE:
WARNING: NEVER EXCEED YOUR VEHICLE MANUFACTURER'S RECOMMENDED TOWING CAPACITY
WEIGHT CARRYING:
PRO INSTALL TIME:
NOVICE INSTALL TIME:
IF YOU ARE HESITANT TO UNDERTAKE
THIS TASK ON YOUR OWN, CONTACT AN AUTHORIZED
CURT INSTALLER FOR ADDITIONAL ASSISTANCE.
INSTALLATION REQUIRES:
SPRAY
SAFETY
LUBRICANT
GLASSES
10mm
17mm
12"
SOCKET
SOCKET
EXTENSION
SCREW
DRIVER
PERIODICALLY CHECK THIS RECEIVER HITCH TO ENSURE ALL FASTENERS ARE TIGHT AND ALL STRUCTURAL COMPONENTS ARE SOUND
CURT Manufacturing LLC. warrants this product to be free of defects in material and/or workmanship at the time of retail purchase by the original purchaser. If the product is found to be defective, Curt Manufacturing LLC. may repair or replace
the product at their option, when the product is returned, prepaid, with proof of purchase. Alteration to, misuse of, or improper installation of this product voids the warranty. Curt Manufacturing LLC.'s liability is limited to repair or replacement
of products found to be defective, and specifically excludes liability for incidental or consequential loss or damage.
For more information log onto www.curtmfg.com, & for helpful towing tips log onto www.hitchinfo.com
11419

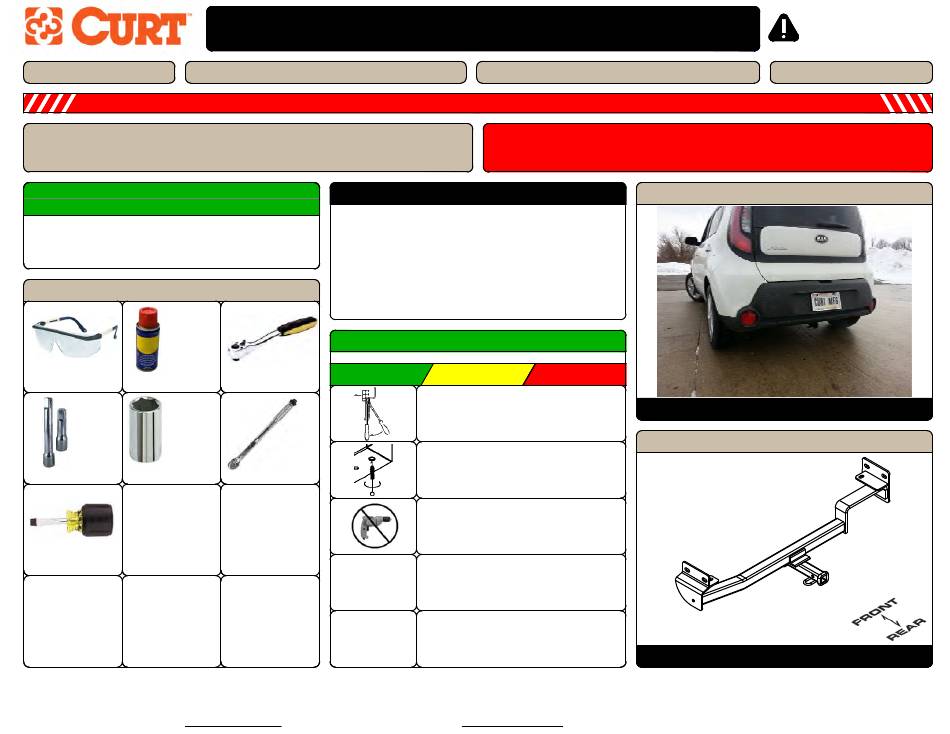

INSTALLATION INSTRUCTIONS
KIA
TRAILER WEIGHT:
LBS.
2000
TONGUE WEIGHT:
200
LBS.
30
MIN.
MIN.
INSTALLATION TIPS:
60
MIN.
1. BEFORE YOU BEGIN INSTALLATION, READ ALL
INSTRUCTIONS THOROUGHLY.
2. TO EASE INSTALLATION, 2 PEOPLE MAY BE
REQUIRED.
3. USING PROPER TOOLS WILL GREATLY IMPROVE
THE QUALITY OF THE INSTALL AND REDUCE THE
TIME REQUIRED.
4. NEED HELP OR HAVE SOME QUESTIONS?
CALL TECHNICAL SUPPORT AT 800.798.0813
LEVEL OF DIFFICULTY:
EASY
RATCHET
TORQUE
WRENCH
MODEL: SOUL
WARNING:
WE RECOMMEND THE USE OF 18050 STABILIZING STRAPS FOR ALL NON-TRAILER
(WHEEL-LESS) LOADS. PLEASE SEE THE CURT CATALOG OR VISIT US ONLINE AT
WWW.CURTMFG.COM FOR FURTHER INFORMATION.
EASY
MODERATE
CHALLENGING
LOWER EXHAUST
USE EXISTING
WELDNUTS
NO DRILLING
REQUIRED
Safety glasses should be
worn at all times while
installing this product .
STYLE:
VEHICLE PHOTO:
REPRESENTATIVE PHOTO

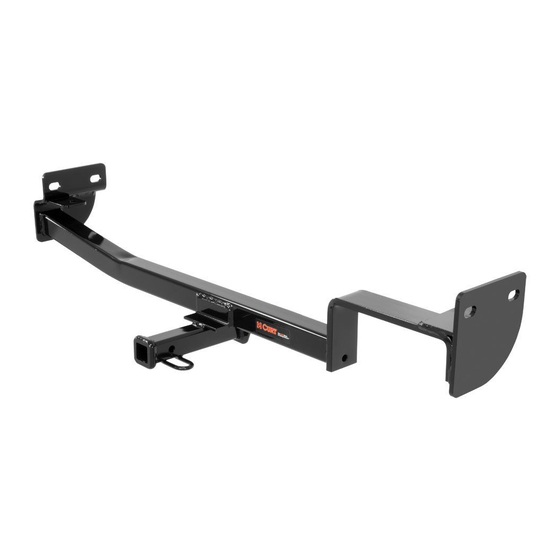

HITCH ILLUSTRATION:
MAKE SURE YOUR HITCH MATCHES
HATCHBACK
9/16/2015
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Curt Manufacturing 11419
Summary of Contents for Curt Manufacturing 11419
- Page 1 CURT Manufacturing LLC. warrants this product to be free of defects in material and/or workmanship at the time of retail purchase by the original purchaser. If the product is found to be defective, Curt Manufacturing LLC. may repair or replace...
-
Page 2: Installation Walkthrough
INSTALLATION WALKTHROUGH: Note: Be careful around the brake lines and the canister. Parts List 1. Remove the (3) Phillps screws and (2) Phillips push pins ITEM PART NUMBER DESCRIPTION from each fender well. Pull the wheel well liner gently M10 - 1.25 x 30 HEX BOLT away from the car and gently separate the wheel well 7/16"... - Page 3 INSTALLATION WALKTHROUGH: 5. Raise exhaust back into postion and secure to vehicle 3. Optional - For ease of install. hanger. Remove the (3) nuts that hold on the canister. Use a If Step 3 was executed: flat blade screwdriver to disengage the spring clips on Raise canister back into postion and reattach using the canister for removal.
-
Page 5: Installation Steps
Curt Manufacturing LLC., warrants this product to be free of defects in material and/or workmanship at the time of retail purchase by the original purchaser. Scan If the product is found to be defective, Curt Manufacturing LLC., may repair or replace the product, at their option, when the product is returned, prepaid, for more with proof of purchase.
