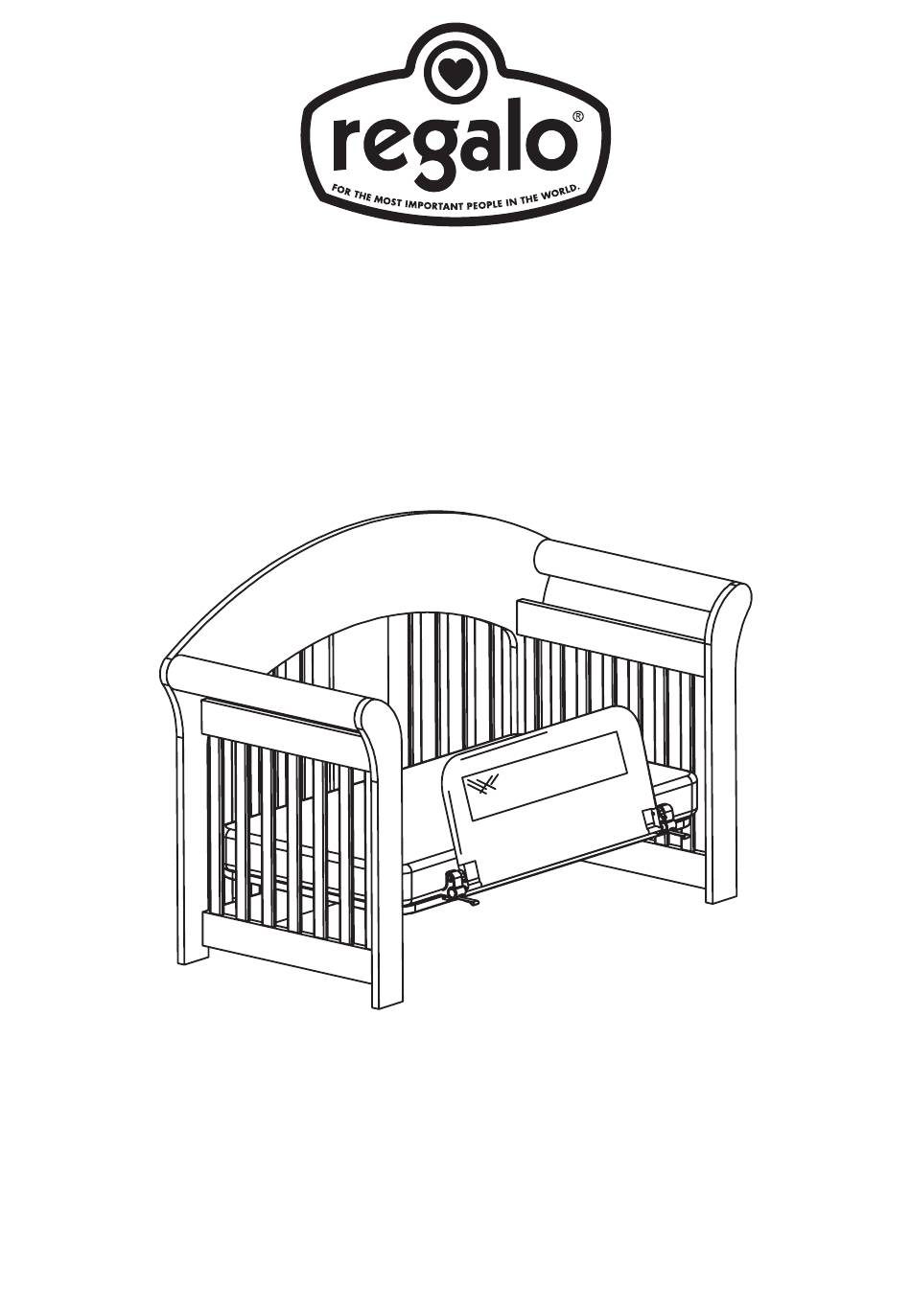

06/21/2013_DC
FOR THE MOST IMPORTANT PEOPLE
IN THE WORLD
CONVERTIBLE CRIB RAIL
INSTRUCTIONS
Model: 2015
www.regalo-baby.com
...........................................................................
Regalo International, LLC.
3200 Corporate Center Drive, Suite 100
Burnsville, MN 55306-9803, USA
Toll Free: 866-272-5274
Made in China
Advertisement
Table of Contents
Related Manuals for Regalo 2015
Summary of Contents for Regalo 2015
- Page 1 06/21/2013_DC FOR THE MOST IMPORTANT PEOPLE IN THE WORLD CONVERTIBLE CRIB RAIL INSTRUCTIONS Model: 2015 www.regalo-baby.com ................Regalo International, LLC. 3200 Corporate Center Drive, Suite 100 Burnsville, MN 55306-9803, USA Toll Free: 866-272-5274 Made in China...
- Page 2 WARNING: IMPORTANT ! KEEP FOR FUTURE REFERENCE ! • Failure to follow these instructions for the assembly and use of your crib rail could result in serious injury or death. • This crib rail is intended for use with children 2 years to 5 years of age. WARNING: SUFFOCATION AND STRANGULATION HAZARD -Gaps in and around crib rails have entrapped young children...
- Page 3 PART LIST : 1. Crib Rail Mesh Wall 2. Right Upper Support Bar 3. Left Upper Support Bar 4. Right Bottom Support Bar 5. Left Bottom Support Bar 6. Right Under Bar 7. Left Under Bar 8. Right Anchor and Strap 9.
- Page 4 CRIB RAIL ASSEMBLY AND SET UP Step 1 : Remove crib rail from packaging and set all parts out in front of you. Step 2 : Insert Left Upper Support Bar into Left Bottom Support Bar. Make sure the spring pin fits securely into opposing hole so that the two pieces cannot pull apart. (Diagram A1) Step 3 : Repeat Step 2 directions to assemble the right side of the crib rail.
- Page 5 Frame assembly should look like the image below. (Diagram B2) (Diagram B2) Step 5 : To install the mesh wall on the crib rail, slide the mesh wall over the frame until it reaches the other end and zip it shut to complete the installation. (Diagram C1) NOTE : If the zipper does not close securely, make the necessary adjustments to ensure proper closure.
- Page 6 Step 6: With the wall of the crib rail completely assembled, you will now connect the remaining legs with the anchor straps. (Diagram D1) (Diagram D1) Spring button Spring button (Diagram D2) (Diagram D3) Step 7: Insert one side of the wall frame into one of the leg pieces. Press in the metal spring button to fully insert the tube into the hole in the plastic hinge.
- Page 7 MOUNTING THE CRIB RAIL TO THE CRIB Note : The next steps may require the help of a secondary person. Make sure that you have configured your convertible crib into its toddler Step 1: bed configuration, and the crib mattress has been removed. Then, place the crib rail atop the mattress support structure so that it is poitioned to create a barrier across the opening of your convertible crib.
- Page 8 (Diagram E2) Step 2: Once the crib rail is properly placed, check to make sure the left and right Guide Bar Assemblies are parallel to one another. Then, place the mattress on top of the assembly. (Diagram E3) (Diagram E3)
- Page 9 WARNING : In order for the crib rail fabric wall to be firmly held against the side of the mattress you MUST properly tighten the anchoring straps. Please follow the directions below very carefully. Step 3 : Tighten the straps to bring the crib rail into it’s proper posi t ion. To tighten the straps, first release the strap locks on the under side of the Left and Right Under Bars.
- Page 10 OPERATION OF SWING DOWN FEATURE (Diagram F) Step 1: With the crib rail side in the ‘up’ position, locate the locking tab on each of the hinges. A close up view of the hinge is shown in (Diagram F) (Diagram G1) Step 2: Once the locking tabs have been located, flip the tab up to expose the open side of the lock.
- Page 11 Step 3 : With both locking tabs turned to the ‘open’ position, hold the upper part of the crib rail firmly and swing it down. The crib rail should now be in (Diagram H1) the ‘down’ position. (Diagram H2) NOTE : To return the crib rail to the ‘up’ position, reverse the previous instructions. IMPORANT: Make sure that the crib rail is in the ‘up’...
-
Page 12: Care And Maintenance
Regalo International LLC will replace or repair it at Regalo’s option, Proof of purchase required. - Page 13 Regalo International, LLC. COPYRIGHT 2013 3200 Corporate Center Drive, Suite 100 Burnsville, MN 55306-9803, USA Toll Free: 866-272-5274 Made in China 06/21/2013_DC...
