• READ ALL INSTRUCTIONS BEFORE ASSEMBLY AND USE OF GATE.
• KEEP INSTRUCTIONS FOR FUTURE USE.
www.regalo-baby.com
Regalo International, LLC.
3200 Corporate Center Drive, Suite 100 / Burnsville, MN 55306, USA
866.272.5274 (U.S. only) or 952.435.1080
Made in China

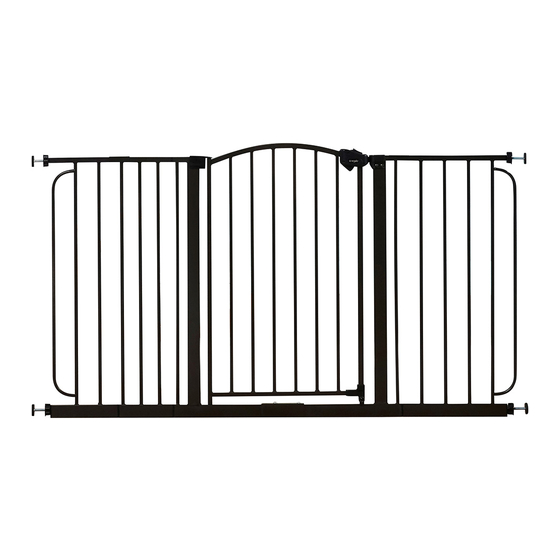

Home Accents Superwide
Safety Gate
OWNER'S MANUAL MODEL:
1176

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Home Accents Superwide and is the answer not in the manual?

Questions and answers

Related Manuals for Regalo Home Accents Superwide

Summary of Contents for Regalo Home Accents Superwide

  • Page 1 Home Accents Superwide Safety Gate 1176 OWNER’S MANUAL MODEL: • READ ALL INSTRUCTIONS BEFORE ASSEMBLY AND USE OF GATE. • KEEP INSTRUCTIONS FOR FUTURE USE. www.regalo-baby.com Regalo International, LLC. 3200 Corporate Center Drive, Suite 100 / Burnsville, MN 55306, USA 866.272.5274 (U.S.

  • Page 2: Before Using Product

    Before Using Product Read and follow all instructions carefully to ensure that your gate is properly installed. Improper installation could result in the gate becoming unstable or dislodged from the doorway. The safety of your child is your responsibility. Please keep these instructions for your reference. IMPORTANT •...
  • Page 3 WARNING • Install according to manufacturer's instructions. • Children have died or been seriously injured when gates are not securely installed. ALWAYS install and use gate as directed using all required parts. • STOP using when a child can climb over or dislodge the gate.
  • Page 4 MODEL NO. 1176 Manufacturer recommendations: • For children ages 6 months to 24 months • When mounting: • The minimum opening allowed is 56" • The maximum opening allowed is 74 1/2". Please note if your opening is larger than 74 1/2" you can purchase the optional Home Accents 2 Panel Extension Kit, model number 0076.

  • Page 5: Before Assembly

    Before Assembly PLEASE CHECK TO MAKE SURE YOU HAVE THE FOLLOWING PARTS: Main Gate Assembly(2) Cap Hinge Cover (1) Pan Head Screw (4) Wood screw (8) Allen Wrench (1) Upper Door Hinge Pin (1) Door Frame U-bracket (1) Door Frame Assembly (1) English...

  • Page 6: Gate Assembly

    Gate Assembly STEP 1 Start with the main gate assemblies. Loosen the hinge knob in the clockwise direction. Doing this will let main gate assemblies unfold. STEP 2 Slide the two gate assemblies together. Place the door frame u-bracket over the lower frame lining up the four (4) holes.
  • Page 7 Gate Assembly STEP 3 Set the door frame assembly into the gate. Set the pin of the door frame assembly into the receiver hole on the main frame assembly. STEP 4 Place the upper door hinge pin through the hole in the main frame assembly and into the door frame assembly.
  • Page 8 Mounting of the Gate STEP 1 Determine what side you wish to have the hinge of the door on. Place the wall mounts on that end of the gate against the wall. Using the wood screws, screw into the wall. Turning the a screwdriver in the clockwise direction will tighten the screws.
  • Page 9 Removing Extension Gate STEP 1 If the standard gate is too long for your opening you must remove either the right or left extension gate. Loosen the hinge knob in the clockwise direction. Slide the hinge knob down and pull out the tube hinge. Do the same with the tube hinge on the end with the wall mounts.
  • Page 10 Removing Extension Gate STEP 3 Place the tube hinge, wall mounts, hinge knob, and cap hinge cover into the lower door frame. Place the toothed hinge cover on the top of the gate. Slide the hinge knob up into the toothed hinge cover and twist counter-clockwise to tighten.

  • Page 11: Gate Operation

    Gate Operation STEP 1 To open the gate, start with rotating the base lock in the upward direction. Do this on both sides of the door. Note: You can rotate the base lock in either direction. STEP 2 Press the release button down on the handle. Slide the handle towards the hinge.

  • Page 12: Care And Maintenance

    Regalo International, LLC, will replace or repair it at Regalo’s option. PROOF OF PURCHASE REQUIRED.

  • Page 13: Replacement Parts

    Replacement Parts Knob Hinge Slide Handle, Kit, Narrow #300778-002 #100430-002 Endcap, Disc Hinge, Endcap Plug, Disc Toothed, Doorframe, Hinge, Doorframe, Male Male #300306-002 #300779-002 Endcap, Disc Hinge, Pin, Hinge, Spring Toothed, Doorframe, #100267-001 Female #300781-002 Disc, Hinge Toothed Screw Wood, GB 3.5MM #300783-002 x 25MM U-bracket, Junction,...
  • Page 14 Replacement Parts Cap, Hinge Cover, Female #301312-002 Hinge Cover, Endcap Plug, 13mm/13mm #301354-002 English...
