• READ ALL INSTRUCTIONS BEFORE ASSEMBLY AND USE OF GATE.
• KEEP INSTRUCTIONS FOR FUTURE USE.
www.regalo-baby.com
Regalo International, LLC.
3200 Corporate Center Drive, Suite 100 / Burnsville, MN 55306, USA
866.272.5274 (U.S. only) or 952.435.1080
Made in China

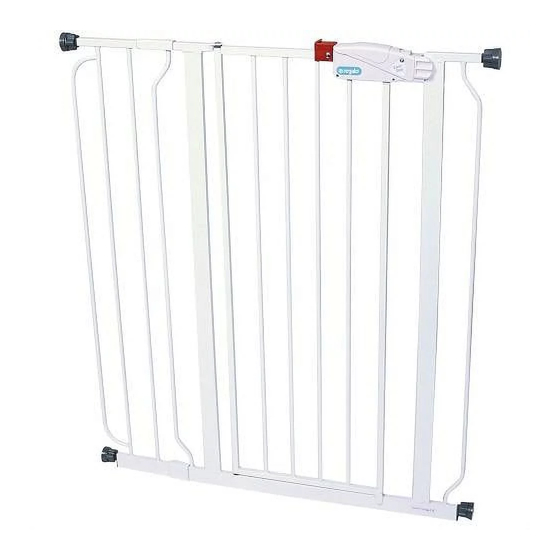

OWNER'S MANUAL MODELS:
Easy Step
Safety Gate
1164EW, 1164EB, 1164EP, 1165W
Advertisement
Related Manuals for Regalo Easy Step 1164EW
Summary of Contents for Regalo Easy Step 1164EW
- Page 1 OWNER’S MANUAL MODELS: • READ ALL INSTRUCTIONS BEFORE ASSEMBLY AND USE OF GATE. • KEEP INSTRUCTIONS FOR FUTURE USE. www.regalo-baby.com Regalo International, LLC. 3200 Corporate Center Drive, Suite 100 / Burnsville, MN 55306, USA 866.272.5274 (U.S. only) or 952.435.1080 Made in China...
-
Page 3: Before Using Product
Before Using Product Read and follow all instructions carefully to ensure that your gate and extensions are properly installed. Improper installation could result in the gate becoming unstable or dislodged from the doorway. Always make sure the extension is securely attached to the gate before using. - Page 4 WARNING • Install according to manufacturer’s instructions. • Children have died or been seriously injured when gates are not securely installed. ALWAYS install and use gate as directed using all required parts. • STOP using when a child can climb over or dislodge the gate.
-
Page 5: Before Assembly
Before Assembly PLEASE CHECK TO MAKE SURE YOU HAVE THE FOLLOWING PARTS: Gate Frame (1) Wall Cups (4) Screws (4) (requires a Phillips/cross-head screwdriver) Threaded Spindle Rods (4) English... - Page 6 Extensions List NOTE 4" 6" 8" 12" MODEL NO. MAX SIZE 1164EW 1164EB 29 – 52 inches 1164EP 1165W 29 – 44 inches WARNING: The gap between the gate and wall should not exceed more than 2.5 inches. NOTE: When installing any gate at its maximum width, use wall cups to ensure stability and safety.
- Page 7 Assembling and Installing Your Gate NOTE: You will notice a slight gap between the gate door latch and the frame. This is not a defect. Your gate is a pressure mounted gate and this gap will disappear once you tighten your gate in its opening. STEP 1 Locate the (4) threaded spindle rods.
- Page 8 STEP 3 Position the gate so that it is level and centered within your doorway or opening. Rotate the adjustment wheels on the threaded spindle rods in the opposite direction as in STEP 1, expanding the gap between the rubber foot and the adjustment wheel.
- Page 9 STEP 4 When you are satisfied with the general placement of your gate, fully tighten the threaded spindle rods attached to the lower corners of the gate by further rotating the adjustment wheels. Continue by tightening the upper threaded spindle rods. As you tighten the upper threaded spindle rods, you will notice the gap between the door frame and the easy open latch begin to narrow.
- Page 10 Positioning and Attaching the Wall Cups Your gate is a pressure mounted gate. Therefore, it is not necessary to use the screw attached wall cups in your door opening if you choose not to. However, if you are using the gate at the top of the stairs you must use the wall cups. Using the wall cups will affix your gate more firmly in the doorway or opening.
- Page 11 STEP 3 With the gate fully removed, you can now use the circles you marked during STEP 1 as guides for screwing in your (4) wall cups. Center each of the wall cups within the guide circles and use the provided self-tapping screws to fasten them in place via the hole through the center of each wall cup.
- Page 12 Operating the Door Latch STEP 1 Pull the spring lock away from the easy open latch while simultaneously lifting the lock lever upwards. This will release the locking latch from the gate frame and allow the door to push or pull open. SPRING LOCK LOCK LEVER STEP 2...
- Page 13 Adding a Gate Extension STEP 1 Choose the side of the gate to be extended and remove the top and bottom threaded spindle rods. STEP 2 Assemble the gate and extension as illustrated. Reposition the gate and fit in accordance with the gate fitting instructions. NOTE: It is preferable to install any extensions on the hinge side of the gate.
-
Page 14: Care And Maintenance
Regalo International, LLC, will replace or repair it at Regalo’s option. PROOF OF PURCHASE REQUIRED. -
Page 15: Replacement Parts
Replacement Parts C D E Easy Open Latch 1" Wall Mount Screws Gray = #14037 #10001 Black = #11037 White = #13037 Wall Cups Top Plug Insert Gray = #14015 Gray = #14020 Black = #11015 Black = #11020 Bottom Plug Insert Threaded Spindle Rods Gray = #14019 w/Adjustment Wheel... - Page 16 Regalo International, LLC. 3200 Corporate Center Drive, Suite 100 Burnsville, MN 55306, USA 866.272.5274 (U.S. only) or 952.435.1080 20170607EF...
