EB 8384-0 EN (1300-1609)
Translation of original instructions
Type 3730-0 Electropneumatic Positioner
Edition September 2018

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 3730-0 and is the answer not in the manual?

Questions and answers

Related Manuals for Samson 3730-0

Summary of Contents for Samson 3730-0

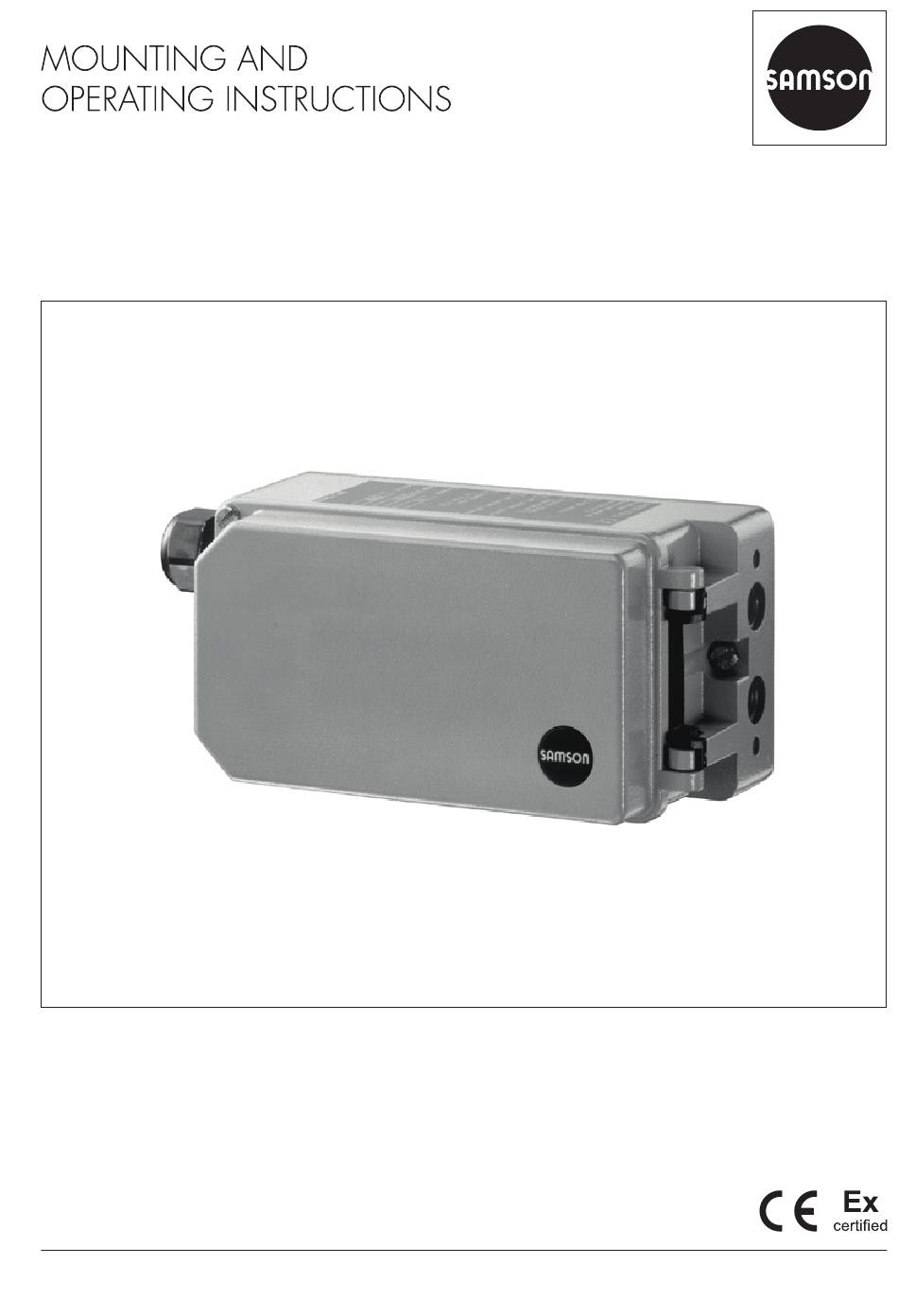

  • Page 1 EB 8384-0 EN (1300-1609) Translation of original instructions Type 3730-0 Electropneumatic Positioner Edition September 2018...
  • Page 2 Î For the safe and proper use of these instructions, read them carefully and keep them for later reference. Î If you have any questions about these instructions, contact SAMSON‘s After-sales Service Department (aftersalesservice@samson.de). The mounting and operating instructions for the devices are included in the scope of delivery.

  • Page 3: Table Of Contents

    Contents Safety instructions and measures ..............5 Notes on possible severe personal injury ............8 Notes on possible property damage ..............8 Markings on the device ................10 Nameplate ....................10 Article code ....................11 Design and principle of operation ..............12 Mounting versions ..................13 Device overview and operating controls ............13 Accessories ....................14 Travel tables ....................17 Technical data .....................18...
  • Page 4 Contents 5.11 Pneumatic connections..................48 5.11.1 Signal pressure connection ................49 5.11.2 Signal pressure gauges ................49 5.11.3 Supply pressure ...................49 5.11.4 Signal pressure (output) ................49 5.12 Electrical connections ...................50 Operation ....................53 Operating the positioner ................54 Setting zero ....................54 Reducing gain .....................54 Adapting the travel ..................54 Activate tight-closing function ................54 Servicing.....................55 Preparation for return shipment ..............55...

  • Page 5: Safety Instructions And Measures

    In case operators intend to use the positioner in other applica- tions or conditions than specified, contact SAMSON. SAMSON does not assume any liability for damage resulting from the failure to use the de- vice for its intended purpose or for damage caused by external forces or any other external factors.
  • Page 6 Î Check with the plant operator for details on further protective equipment. Revisions and other modifications Revisions, conversions or other modifications of the product are not authorized by SAMSON. They are performed at the user's own risk and may lead to safety hazards, for example. Fur- thermore, the product may no longer meet the requirements for its intended use.
  • Page 7 Safety instructions and measures − Servicing explosion-protected devices If a part of the device on which the explosion protection is based needs to be serviced, the device must not be put back into operation until a qualified inspector has assessed it according to explosion protection requirements, has issued an inspection certificate, or given the device a mark of conformity. Inspection by a qualified inspector is not required if the manufacturer performed a routine test on the device before putting it back into op- eration.

  • Page 8: Notes On Possible Severe Personal Injury

    Safety instructions and measures Referenced documentation The following documents apply in addition to these mounting and operating instructions: − The mounting and operating instructions of the components on which the positioner is mounted (valve, actuator, valve accessories, etc.). 1.1 Notes on possible severe personal injury DANGER Risk of fatal injury due to the formation of an explosive atmosphere.
  • Page 9 Safety instructions and measures Incorrect assignment of the terminals will damage the positioner and will lead to mal- function. For the positioner to function properly, the prescribed terminal assignment must be ob- served. Î Connect the electrical wiring to the positioner according to the prescribed terminal assignment.

  • Page 10: Markings On The Device

    Markings on the device 2 Markings on the device 2.1 Nameplate Explosion-protected version Version without explosion protection SAMSON 3730 - 0 SAMSON 3730 - 0 Positioner Positioner Supply Supply Input Input See technical data for ambient temperature Model 3730 - 0...

  • Page 11: Article Code

    Markings on the device 2.2 Article code Positioner Type 3730-0 x 0 0 0 0 0 0 0 0 x 0 0 x 0 x x Explosion protection Without ATEX: II 2G Ex ia IIC T6 Gb, II 2D Ex ia IIIC T80°C Db FM/CSA: Class I, Zone 0 AEx ia IIC;...

  • Page 12: Design And Principle Of Operation

    The electropneumatic positioner is mounted which accessories are selected either for on pneumatic control valves and is used to direct attachment to SAMSON Type 3277 assign the valve position (controlled variable Actuators or for attachment to actuators x) to the control signal (set point w). The po- according to NAMUR (IEC 60534-6).

  • Page 13: Mounting Versions

    3.1 Mounting versions The position of the valve stem is transmitted as a linear travel motion over the pick-up le- The Type 3730-0 Positioner is suitable for the ver to the travel sensor (2) and supplied to following types of attachment using the cor- an analog PD controller (3). The PD control- responding accessories (see section 3.3):...

  • Page 14: Accessories

    Design and principle of operation 3.3 Accessories Table 1: General accessories Designation Order no. Reversing amplifier for double-acting actuators Type 3710 Black plastic (6 to 12 mm clamping range) 8808-1011 Blue plastic (6 to 12 mm clamping range) 8808-1012 Cable gland M20x1.5 Nickel-plated brass (6 to 12 mm clamping range) 1890-4875 Nickel-plated brass (10 to 14 mm clamping range) 1992-8395 Stainless steel 1.4305 (8 to 14.5 mm clamping range) 8808-0160 Powder-coated aluminum 0310-2149 Adapter M20x1.5 to ½ NPT Stainless steel 1400-7114 0510-0522 0510-0510 Lever 0510-0511 0510-0512 0510-0525 DE/EN (delivered state) 1990-3528...
  • Page 15 Design and principle of operation Table 3: Direct attachment to Type 3277 (see section 5.3.2) Mounting parts/accessories Order no. Standard version for actuators 175, 240, 350, 355, 700, 750 cm² 1400-7453 Version compatible with paint for actuators 175, 240, 350, 355, 700, 750 cm² 1402-0941 G ¼ 1400-8819 Connection block with seals and screw ¼ NPT 1402-0901 Stainless steel/brass 1400-6950 Pressure gauge mounting kit up to max. 6 bar (output/supply) Stainless steel/stainless steel 1400-6951 Piping with screw fittings...
  • Page 16 20 to 35 mm rod diameter M lever is mounted on basic device (included in the scope of delivery) In conjunction with Type 3273 Side-mounted Handwheel with 120 mm rated travel, additionally one bracket (0300-1162) and two countersunk screws (8330-0919) are required. Table 5: Attachment according to VDI/VDE 3847-1 (see section 5.5) Mounting parts Order no. VDI/VDE 3847 interface adapter 1402-0257 Mounting kit for attachment to SAMSON Type 3277 Actuator with 175 to 750 cm² 1402-0868 Mounting kit for attachment to SAMSON Type 3271 Actuator or non-SAMSON actuators 1402-0869 Travel pick-off for valve travel up to 100 mm 1402-0177 Travel pick-off for 100 to 200 mm valve travel (SAMSON Type 3271 Actuator only) 1402-0178 EB 8384-0 EN...

  • Page 17: Travel Tables

    [cm²] [mm] Travel [mm] 5.0 to 25.0 120/175/240/350 7.0 to 35.0 355/700/750 10.0 to 50.0 Table 7: Attachment according to IEC 60534-6 (NAMUR) SAMSON valves with Type 3271 Actuator Other valves/actuators Actuator area Rated travel Min. travel Max. travel Assigned pin [cm²] [mm] [mm]...

  • Page 18: Technical Data

    Design and principle of operation 3.5 Technical data Table 8: Type 3730-0 Electropneumatic Positioner Type 3730-0 Positioner: the technical data for the explosion-protected devices may be restricted by the limits specified in the test certificates. Rated travel Adjustable: Direct attachment to Type 3277: 5.3 to 30 mm Attachment according to IEC 60534-6: 5.3 to 200 mm Travel range Adjustable within the rated travel, max.
  • Page 19 Design and principle of operation Type 3730-0 Positioner: the technical data for the explosion-protected devices may be restricted by the limits specified in the test certificates. Use in safety-instrumented Suitable for use in safety-instrumented systems up to SIL 2 (single device) and SIL 3 systems acc.
  • Page 20 Design and principle of operation Table 9: Explosion protection certificates Type Certification Type of protection/comments Number ZETC/15/2018 0Ex ia IIC T6X STCC Date 2018-04-27 2Ex s II T6 X Valid until 2021-04-26 Number PTB 03.ATEX 2099 II 2G Ex ia IIC T6 Gb, II 2D Ex ia IIIC T80°C Db Date 2016-04-19 RU C-DE.

  • Page 21: Dimensions In Mm

    Design and principle of operation 3.6 Dimensions in mm Direct attachment M20x1.5 Output (38) Supply (9) Pressure gauge or connect- bracket ing plate Attachment according to IEC 60534-5 (NAMUR) Lever mm S = 17 M = 50 L = 100 Output (A Supply (Z) XL = 200 Output (A Optional reversing amplifier (1079-1118 or...
  • Page 22 Design and principle of operation Attachment according to VDI/VDE 3847 to Type 3277 Lever mm M = 50 = 100 XL = 200 Attachment according to VDI/VDE 3847 to a NAMUR EB 8384-0 EN...
  • Page 23 Design and principle of operation Output Y Output Y Supply (9) Output Y Output Y Type 3710 Reversing Amplifier (optional) EB 8384-0 EN...

  • Page 24: Measures For Preparation

    1. Check the scope of delivery. Compare storage. the shipment received with the delivery − Observe the storage instructions. note. − Contact SAMSON in case of different stor- 2. Check the shipment for transportation age conditions or long storage periods. damage. Report any transportation dam- age.
  • Page 25 Measures for preparation EB 8384-0 EN...

  • Page 26: Mounting And Start-Up

    Mounting and start-up 5 Mounting and start-up 5.2 Lever and pin position The positioner is adapted to the actuator and NOTICE to the rated travel by the lever on the back of Risk of malfunction due to incorrect sequence the positioner and the pin inserted into the of mounting, installation and start-up.
  • Page 27 Mounting and start-up Vent opening Fig. 2: Vent opening (back of the positioner) Fig. 3: Permissible mounting Fig. 4: M lever with pin position 35 positions Lever Disk spring Follower pin Fig. 5: Mounting the lever and follower pin EB 8384-0 EN...

  • Page 28: Direct Attachment

    Mounting and start-up 5.3 Direct attachment 4. Mount cover plate (10) with narrow side of the cut-out (Fig. 6, on the left) pointing 5.3.1 Type 3277-5 Actuator towards the signal pressure connection. Make sure that the gasket (14) points to- Î Required mounting parts and accesso- wards the actuator yoke. ries: Table 2 on page 14.
  • Page 29 Mounting and start-up Symbols Switchover plate (9) Lever Actuator stem extends Disk spring Follower pin Follower clamp Left attachment Right attachment Screw plug Stopper Actuator stem Connecting plate retracts Seals Pressure gauge bracket Pressure gauge Signal pressure mounting kit input for left Signal pressure Switchover plate attachment...

  • Page 30: Type 3277 Actuator

    Mounting and start-up 8. Mount cover (11) on the other side. For actuators 175, 240 and 350 cm² Make sure that the vent plug is located at with 15 mm travel, keep the follower pin the bottom when the control valve is in- (2) in pin position 35. stalled to allow any condensed water 4.
  • Page 31 Mounting and start-up Lever Connection block 1.1 Nut 12.1 Screw 1.2 Disk spring 12.2 Stopper or connection for external piping Follower pin 10 14 Switch plate Follower clamp Gasket Cover plate Formed seal Cover 11 11.1 Gasket 11.1 Vent plug M lever Cut-out of cover plate (10)

  • Page 32: Attachment According To Iec 60534-6

    Mounting and start-up the bottom when the control valve is in- bossed scale so that the follower stalled to allow any condensed water plate (3) is shifted by half the angle that collects to drain off. range to the NAMUR bracket (the slot of the follower plate is centrally 5.4 Attachment according to aligned with the NAMUR bracket at...
  • Page 33 Mounting and start-up Attachment to rod-type yoke: rods with 20 to 35 mm diameter Attachment to NAMUR rib Additional bracket for actuators with 2800 cm² and travel ≥ 60 mm XL and L lever Lever 14.1 Disk spring Follower pin Follower plate Follower plate Connecting plate Seals Pressure gauge bracket Pressure gauge mounting kit Stem connector Bracket NAMUR bracket...

  • Page 34: Attachment According To Vdi/Vde 3847-1

    Mounting and start-up 5.5 Attachment according to 1. Place follower clamp (3) on the actuator stem, align it and screw tight so that the VDI/VDE 3847-1 mounting screw is located in the groove Î Refer to Fig. 9 of the actuator stem. The following positioners with air purging of 2.
  • Page 35 Mounting and start-up 13.1 17.1 17.2 18 18.1 11.1 12.1 Exh. 6.2 6.1 Lever Disk spring Follower pin Follower clamp Screw plug Adapter block Stopper 13.1 Screws Adapter bracket Screws Turnboard Formed seal 17.1 Formed seal 17.2 Screws Screws Blank plate Cover 11.1 Vent plug...
  • Page 36 Mounting and start-up tively, a restrictor plate can be mounted For fail-safe action "actuator stem re- (u AB 11). tracts", connect the Y1 port to the signal pressure connection of the actuator. 7. Insert the screws (13.1) through the mid- Place positioner on the adapter block dle holes of the adapter block (13).
  • Page 37 Mounting and start-up Attachment to NAMUR rib (see Fig. 11) on the rod and position the formed plate (15) on the opposite side. Use the nuts Î Required mounting parts and accesso- and toothed lock washers to fasten the ries: Table 5 on page 16 formed plate onto the studs. Align the Î...
  • Page 38 Mounting and start-up 6. Insert the formed seal (17.1) into the nection of the actuator. Seal the Y2 port turnboard (17) and mount the turnboard with a blanking plug. to the adapter block (13) using the For double-acting actuators and actua- screws (17.2).
  • Page 39 Mounting and start-up 13.1 17.1 17.2 18.1 Exh. Lever 14.1 1.1 Nut 1.2 Disk spring Follower pin Follower plate 3.1 Follower plate Adapter 6.2 6.1 block Screw plug 13.1 Screws Stopper Bolt Adapter bracket 14.1 Screws 6.1 Screws Formed plate 6.2 Formed seal Bracket 6.3 Screws...

  • Page 40: Attachment To Type 3510 Micro-Flow Valve

    Mounting and start-up 5.6 Attachment to Type 3510 9. Place the S lever on the positioner shaft and screw tight using the disk spring Micro-flow Valve (1.2) and nut (1.1). Î Refer to Fig. 12 Move lever once all the way as far as it will go in both directions.
  • Page 41 Mounting and start-up 12.1 11.1 10.1 Lever Disk spring NOTICE Follower pin Follower plate Only use the connecting plate (6) Connecting plate included in the accessories to connect Seals supply and output. Pressure gauge bracket Never screw threaded parts directly Pressure gauge into housing.

  • Page 42: Reversing Amplifier For Double-Acting Actuators

    1119) For the use with double-acting actuators, the positioner must be fitted with a reversing am- Î Refer to Fig. 13. plifier: 1. Mount the connecting plate (6) from the Î SAMSON Type 3710 Reversing Amplifier, accessories to the positioner. Make sure EB 8392   that both O-rings (6.1) are seated cor- Î If a different reversing amplifier (item no. rectly.
  • Page 43 Mounting and start-up From the positioner Output 38 Supply 9 Control signals to the actuator Reversing amplifier 1.1 Special screws 1.2 Gasket 1.3 Special nuts 1.4 Rubber seal 1.5 Stopper 1.6 Filter Connecting plate 6.1 O-rings 6.2 Screws Fig. 13: Mounting a reversing amplifier (1079-1118 or 1079-1119) EB 8384-0 EN...

  • Page 44: Attaching Positioners With Stainless Steel Housings

    Mounting and start-up Pressure gauge attachment pneumatic connecting plate routes the air in- ternally to the actuator. The mounting sequence shown in Fig. 13 re- mains unchanged. Screw a pressure gauge Attachment according to IEC 60534-6 bracket onto the connections A and Z. (NAMUR rib or attachment to rod-type yokes) Pressure gauge G ¼...

  • Page 45: Setting Start-Up Parameters

    S1 to S10 must be set Attachment according to IEC 60534-6 to OFF (see Operating controls of (NAMUR rib or attachment to rod-type Type 3730-0 Positioner on page 53). yokes) 5.10.1 Fail-safe position The positioner requires an additional port for the exhaust air that can be connected over The switch position of switch S1 depends on piping.

  • Page 46: Volume Restriction Q

    The position of volume restriction Q also de- Fail-safe action > > pends on how the signal pressure is routed AIR TO OPEN at the actuator in SAMSON actuators: < > 'SIDE' inscription Fail-safe action > > AIR TO CLOSE For actuators with a signal pressure –...

  • Page 47: Signal Pressure Limitation

    Mounting and start-up 5.10.5 Signal pressure limita- Open 100% tion < > < < Set switch S5 to ON to limit the output signal Travel pressure to 2.4 bar if required by the actua- tor. Closed 20 mA 5.10.6 Set point Set point Input signal Set switches S7 and S8 to determine the in- put signal, i.e.

  • Page 48: Pneumatic Connections

    Mounting and start-up 5.11 Pneumatic connections WARNING Risk of injury by possible movement of ex- posed parts (positioner, actuator or valve) after connecting the signal pressure. Do not touch or block exposed moving parts. NOTICE Output 38 Supply 9 Incorrect connection of the supply air will damage the positioner and will lead to mal- Output 38 Supply 9...

  • Page 49: Signal Pressure Connection

    Mounting and start-up 5.11.1 Signal pressure connec- tion of action is marked FA or FE or by a symbol. tion Actuator stem extends FA (AIR TO OPEN) The signal pressure connection depends on Fail-close (for globe and angle valves): how the positioner is mounted onto the actu- Î...

  • Page 50: Electrical Connections

    Mounting and start-up 5.12 Electrical connections The following applies additionally: For posi- tioners in type of protection Ex tb For electrical installation, observe the rele- (Type 3730-05) and type of protection Ex nA vant electrotechnical regulations and the ac- (Type 3730-08), the cable glands and blank- cident prevention regulations that apply in ing plugs must be certified according to the country of use. In Germany, these are EN 60079-7 (Ex e).
  • Page 51 Mounting and start-up Equipment for use in zone 2/zone 22 The fuses must be installed outside the haz- ardous area. In equipment operated according to type of protection Ex nA (non-sparking equipment) Cable entry according to EN 60079-15, circuits may be Cable entry with M20x1.5 cable gland, 6 to connected, interrupted or switched while en- 12 mm clamping range.
  • Page 52 Mounting and start-up Accessories Cable glands M20x1.5 Order no. Black plastic (6 to 12 mm clamping range) 8808-1011 Blue plastic (6 to 12 mm clamping range) 8808-1012 Nickel-plated brass (6 to 12 mm clamping range) 1890-4875 Nickel-plated brass (10 to 14 mm clamping range) 1922-8395 Stainless steel 1.4305 (8 to 14.5 mm clamping range) 8808-0160 Adapter M20x1.5 to ½ NPT Powder-coated aluminum 0310-2149 Stainless steel 1400-7114 Î...

  • Page 53: Operation

    Zero adjuster Span adjuster Actuator symbols for left attachment Fig. 18: Operating controls of Type 3730-0 Positioner DIP switches S1 to S10 ZERO and SPAN adjusters The positioner is mainly operated via the DIP The ZERO and SPAN potentiometers are...

  • Page 54: Operating The Positioner

    Operating the positioner 7 Operating the positioner Î Adjust the upper range value of the input signal (e.g. 4, 12 or 20 mA) using the ammeter. 7.1 Setting zero Î Turn the SPAN adjuster until the plug stem moves as far as it will go to the end position.

  • Page 55: Servicing

    3. Send the positioner to your nearest SAMSON subsidiary. SAMSON Note subsidiaries are listed on our website at The positioner was checked by SAMSON u www.samson.de > Contact. before it left the factory. − The product warranty becomes void if ser- vice or repair work not described in these...

  • Page 56: Emergency Action

    Decommissioning and removal 9.1 Emergency action 10.1 Decommissioning Upon failure of the air supply or electric sig- To decommission the positioner before re- nal, the positioner vents the actuator, causing moving it, proceed as follows: the valve to move to the fail-safe position de- 1.

  • Page 57: Appendix

    The latest certificates are available on the partment for support concerning service or Internet at www.samson.de > Product repair work or when malfunctions or defects selector > Valve accessories > Type 3730-0 arise. > Downloads > Certificates E-mail address You can reach the After-sales Service De- partment at aftersalesservice@samson.
  • Page 58 EB 8384-0 EN...
  • Page 59 EB 8384-0 EN...
  • Page 60 EB 8384-0 EN...
  • Page 61 EB 8384-0 EN...
  • Page 62 EB 8384-0 EN...
  • Page 63 EB 8384-0 EN...
  • Page 64 EB 8384-0 EN...
  • Page 65 EB 8384-0 EN...
  • Page 66 EB 8384-0 EN...
  • Page 67 EB 8384-0 EN...
  • Page 68 EB 8384-0 EN...
  • Page 69 EB 8384-0 EN...
  • Page 70 EB 8384-0 EN...
  • Page 71 EB 8384-0 EN...
  • Page 72 EB 8384-0 EN...
  • Page 73 EB 8384-0 EN...
  • Page 74 EB 8384-0 EN...
  • Page 75 Für das folgende Produkt / For the following product / Nous certifions que le produit Elektropneumatischer Stellungsregler / Electropneumatic Positioner / Positionneur électropneumatique Typ/Type/Type 3730-0... wird die Konformität mit den einschlägigen Harmonisierungsrechtsvorschriften der Union bestätigt / the conformity with the relevant Union harmonisation legislation is declared with/ est conforme à...
  • Page 76 Explosion Protection 2014/34/EU (ab/from 2016-04-20) EN 60079-11:2012, EN 60079-31:2014 RoHS 2011/65/EU EN 50581:2012 Hersteller / Manufacturer / Fabricant: SAMSON AKTIENGESELLSCHAFT Weismüllerstraße 3 D-60314 Frankfurt am Main Deutschland/Germany/Allemagne Frankfurt / Francfort, 2017-07-29 Im Namen des Herstellers/ On behalf of the Manufacturer/ Au nom du fabricant.
  • Page 77 Explosion Protection 2014/34/EU (ab/from 2016-04-20) EN 60079-11:2012, EN 60079-31:2014 RoHS 2011/65/EU EN 50581:2012 Hersteller / Manufacturer / Fabricant: SAMSON AKTIENGESELLSCHAFT Weismüllerstraße 3 D-60314 Frankfurt am Main Deutschland/Germany/Allemagne Frankfurt / Francfort, 2017-07-29 Im Namen des Herstellers/ On behalf of the Manufacturer/ Au nom du fabricant.
  • Page 78 Explosion Protection 2014/34/EU (ab/from 2016-04-20) EN 60079-15:2010, EN 60079-31:2014 RoHS 2011/65/EU EN 50581:2012 Hersteller / Manufacturer / Fabricant: SAMSON AKTIENGESELLSCHAFT Weismüllerstraße 3 D-60314 Frankfurt am Main Deutschland/Germany/Allemagne Frankfurt / Francfort, 2017-07-29 Im Namen des Herstellers/ On behalf of the Manufacturer/ Au nom du fabricant.
  • Page 79 EB 8384-0 EN...
  • Page 80 EB 8384-0 EN SAMSON AKTIENGESELLSCHAFT Weismüllerstraße 3 · 60314 Frankfurt am Main, Germany Phone: +49 69 4009-0 · Fax: +49 69 4009-1507 samson@samson.de · www.samson.de...
