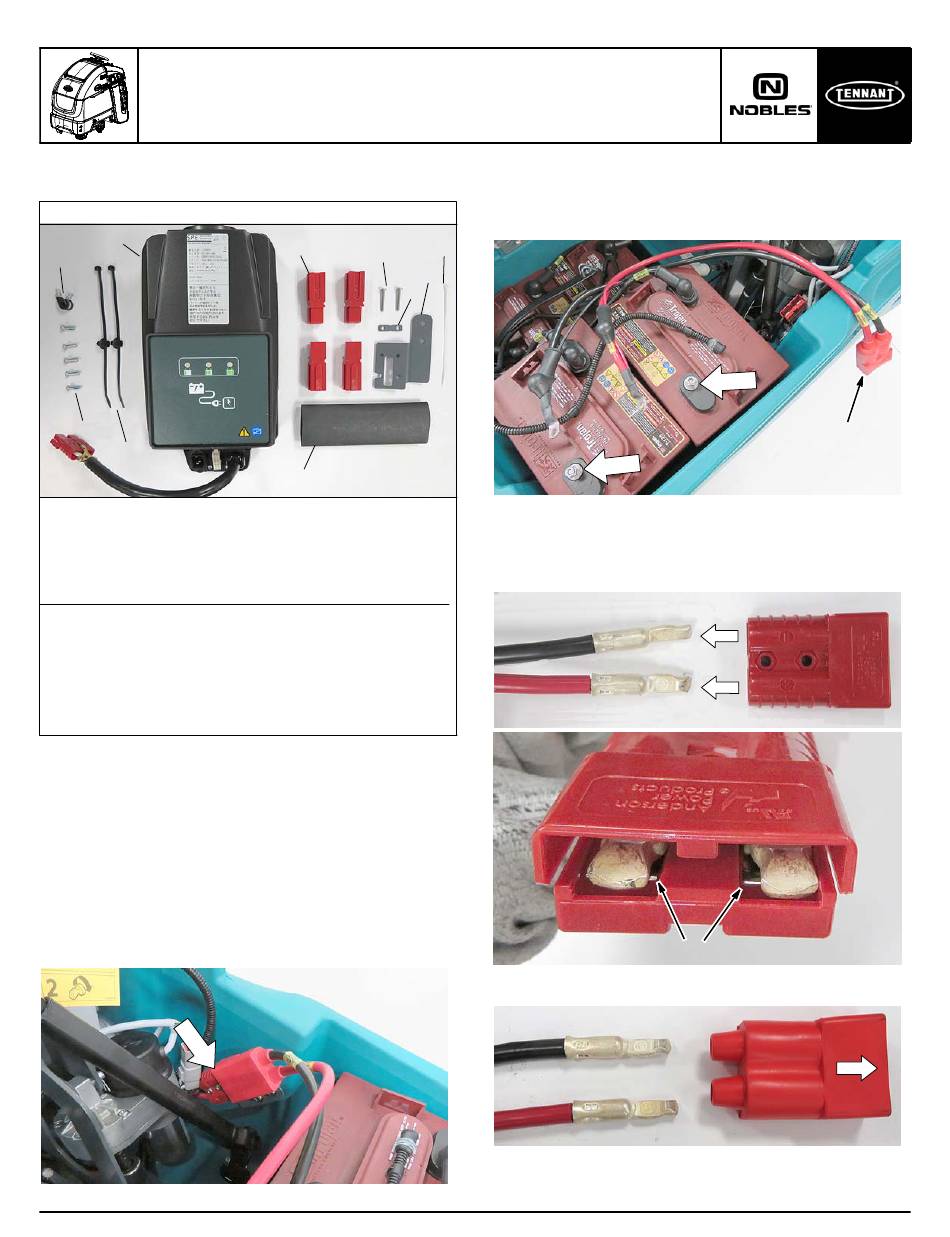

KIT NO. 9017891
On-Board Battery Charger &
Cable Connector Retrofit Kit
Models: T350, Speed Scrub 350
This kit includes the necessary parts to replace a defective charger, caused from backfeed, and retrofit parts to modify
the cable connector configuration to prevent future battery charger damage. Install retrofit parts as instructed.
Kit Contents
1
3
2
4

On-Board Battery Charger Replacement Parts

Ref Part No. Description
1
1220856 Charger, 24vdc 25a 100-240vac (on-board)
2
26395-2 Clamp, Cable, Stl, 0.38dx0.38w, 1hole
3
1205799 Screw, Btn, m5x0.8x16, 8.8,nl torx
4
1210807 Wire, Tie [w/.25" fir tree clip]

Cable Connector Retrofit Parts

Ref Part No. Description
5
1020446 Connector, Anderson, 1321 Series
6
1217818 Sleeve, Heatshrink, 1.5id, 07.0L
7
33931
Screw, Pan, Phl, m4x0.70x30, ss
8
1240380 Plate, Washer, Battery, Connector
9
1239877 Plate, Wldt, Mount, Battery Disconnect
10
763115
Tie, Cable, 6.0L, 1.25 max
CABLE CONNECTOR RETROFIT
INSTALLATION INSTRUCTIONS:
Installation Time: 1 Hour
Special Tools Required: Heat Gun
1. Park machine on a level surface.
2. Turn off machine and remove key.
FOR SAFETY: Before servicing machine, stop on level
surface, turn off machine and remove key.
3. Disconnect the battery cable harness quick disconnect
connector (Figure 1).
9017892 Rev. 00 (04- 2018)
5
7
8
6
Fig. 1
4. Disconnect the battery cable harness from the batteries
(Figure 2).
10
9
5. Remove the double pole connector from the battery
Qty.
cable harness and discard. To remove connector, push
1
the lock tab downward with a small flat-head
1
screwdriver and pull the cable outward (Figure 3).
5
2
Qty.
4
1
2
1
1
1
6. Remove and discard the protective boot (Figure 4).
Tennant Company
Fig. 2
Push lock tabs downward
Fig. 3
Fig. 4
Page 1 of 3
Battery Cable
Harness
www.tennantco.com
