CHIEF MSB-6510 Installation Instructions

I N S T A L L A T I O N I N S T R U C T I O N S
If you are missing any of the following components, please contact Customer Service at 1-800/582-6480
(2) Interface Side Brackets
(4) Mounting Buttons – Tapped
(4) M8 x 30mm Phillips Head Cap Screws
(1) 1/8" Allen Key
BEFORE PROCEEDING, READ INSTALLATION INSTRUCTIONS COMPLETELY
CAUTION!
NOTE: If installing screen on a Chief J-series wall mount, proceed
to Step 3 (J-Series VESA Interface Installation).

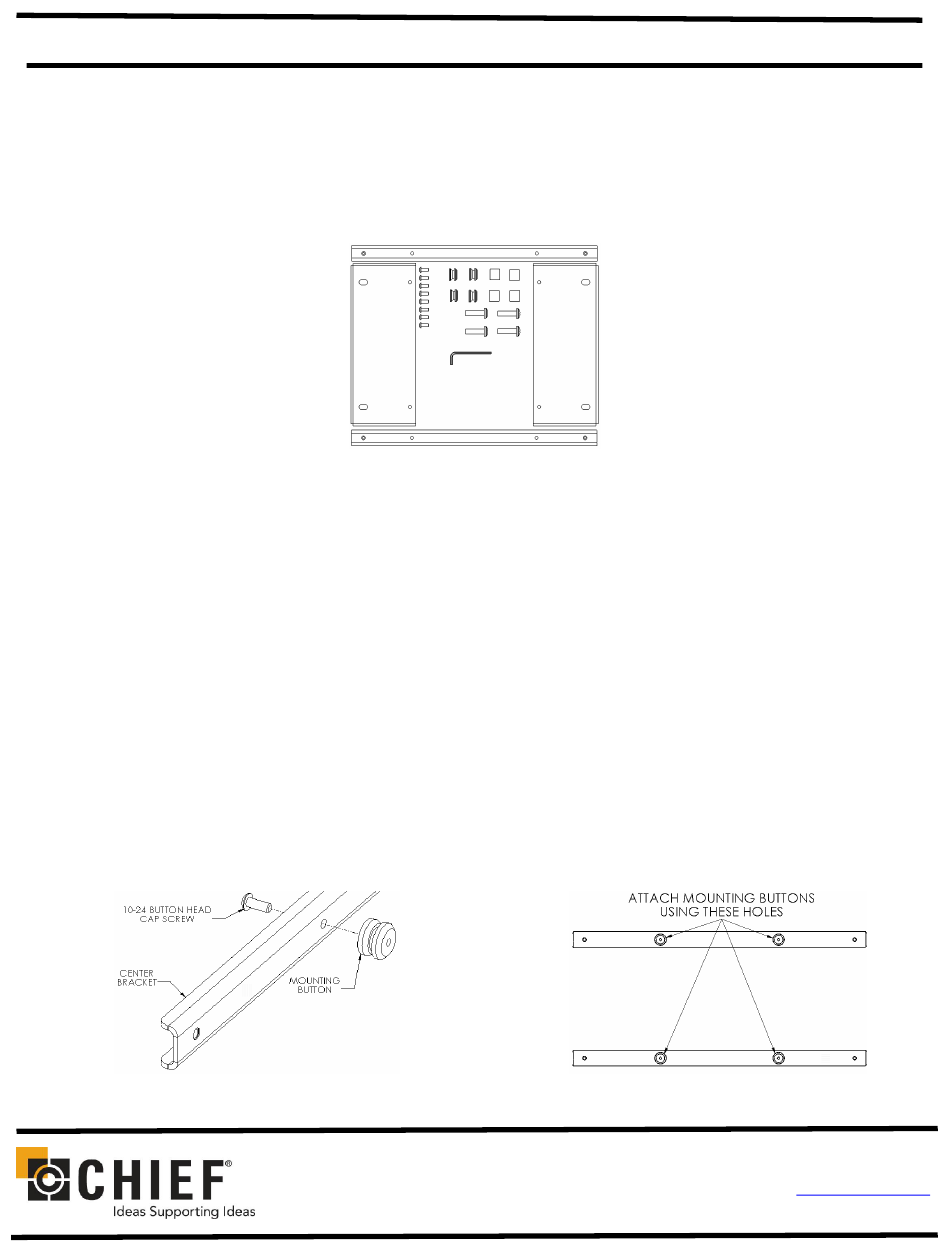

1. Chief Q-latch Button Installation (Used with M-series mounts):
Using a 10-24 button head cap screw inserted from back side of bracket, secure mounting button, with
chamfered hole of mounting button (larger surface) facing bracket, to center brackets (four places) (see
Figure 2 & Figure3).
2. Proceed to Step 4 (Side Bracket Assembly).
MSB-6510
DISPLAY MOUNTING BRACKET
Prior to assembly, unpack carton completely and verify contents.
DISPLAYS ARE EXTREMELY FRAGILE.
Figure 2
CHIEF MANUFACTURING INC.
1-800-582-6480 952-894-6280 FAX 952-894-6918
8401 EAGLE CREEK PKWY, STE. 700
SAVAGE, MINNESOTA 55378 USA
Figure 1
(2) Interface Center Brackets
(8) 10-24 x .500 Button Head Cap Screws
(4) .680 x .390 x .625 Nylon Spacers
Figure 3
8840-000090 Rev01
2007 Chief Manufacturing
www.chiefmfg.com
11/07
