Sub-Zero BI Series Manual page 10

Electronic Control System
Temperature Log Recall Mode for All Thermistors - Begin with the unit in Diagnostic Mode (See Figure 3-72).
NOTE: If Fault Codes have been logged the control will enter Fault Code Recall Mode instead of Diagnostic Mode.
If this happens press the ALARM key to shift the electronic control system into Diagnostic Mode.
While in Diagnostic Mode, toggle through the readings using a WARMER or COLDER key until the desired thermis-
tor location code is displayed at the right side of the LCD (See Figure 3-73) (r = Refrigerator, rE = Refrigerator
Evaporator, F = Freezer, FE = Freezer Evaporator).
NOTE: If "dr", "Cn" or "A", appear, continue to toggle past these codes as it is not possible to to enter Temperature
Log Recall Mode for these thermistors.
Once the desired thermistor code is displayed, press and hold the POWER key first, then a WARMER key, then
release both keys. The LCD will now display temperature at left and the Index number at right (See Figure 3-74),
with the thermistor location code flashing at three (3) second intervals in the first index digit area ("r" = Refrigerator,
"r" then "E" = Refrigerator Evaporator, "F" = Freezer, "F" then "E" = Freezer Evaporator - See Figure 3-75 and 3-76).
Pressing the WARMER key toggles up through the indexes, from 1 to 240, while pressing the COLDER key toggles
down
NOTE: Temperature Log Recall Mode will end twenty (20) seconds after the last key stroke.
LIGHTS ICE MAKER MAX ICE

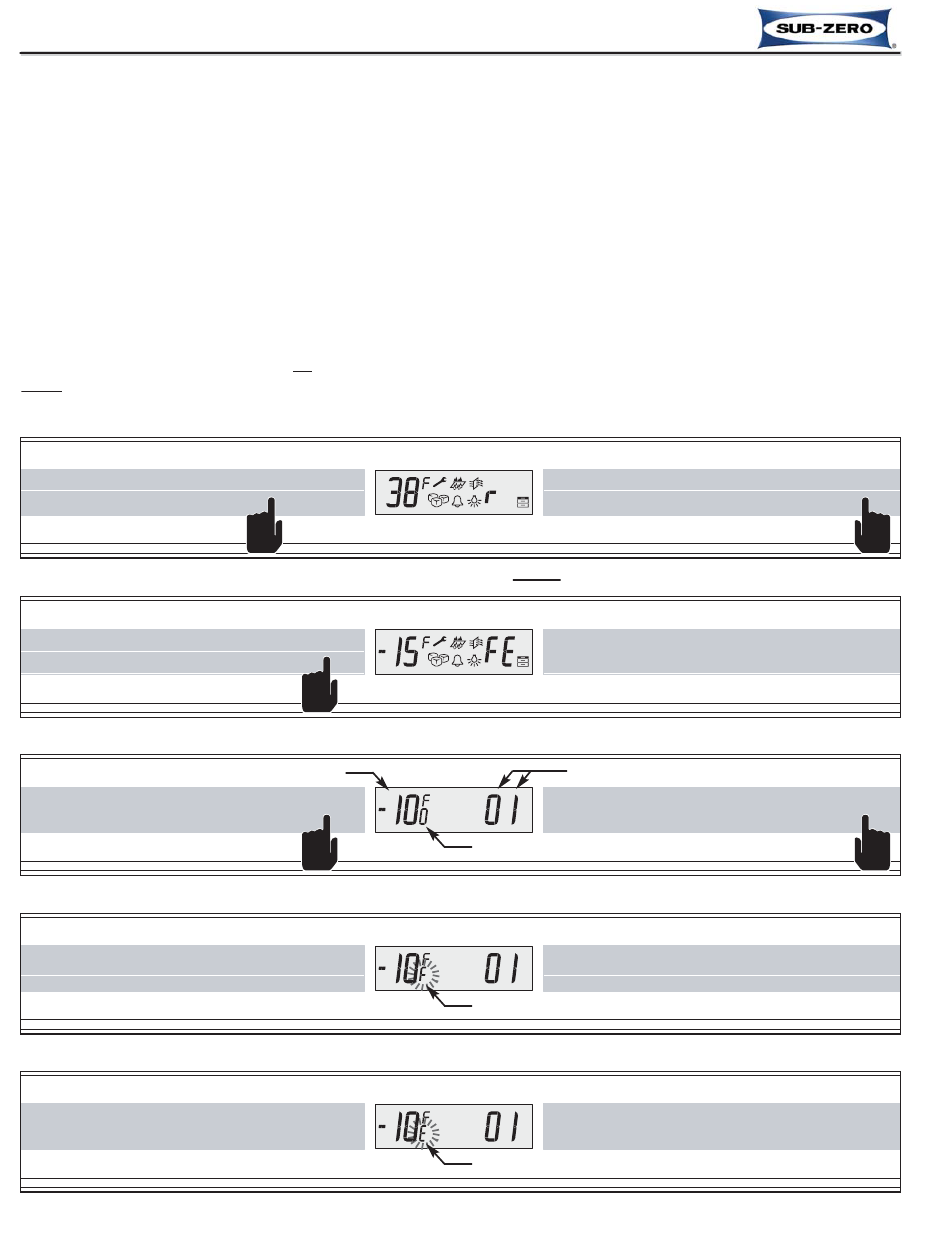

Figure 3-72. Initiate Diagnostic Mode - Press and Hold Either COLDER Key, then the POWER Key
LIGHTS ICE MAKER MAX ICE
Figure 3-73. Toggle Thru Readings - Press WARMER (or COLDER) Key Until Desired Code is Displayed
LIGHTS ICE MAKER MAX ICE
Figure 3-74. With Desired Thermistor Code Displayed, Press & Hold POWER Key First, then WARMER Key
LIGHTS ICE MAKER MAX ICE
Figure 3-75. Thermistor Location Code Flashes at 3 second intervals (F then E = Freezer Evaporator)
LIGHTS ICE MAKER MAX ICE
Figure 3-76. Thermistor Location Code Flashes at 3 second intervals (F then E = Freezer Evaporator)
#7005333 - Revision A - January, 2008
Built-In (BI) Series
Built-In (BI) Series
COLDER WARMER
COLDER WARMER
Temperature
COLDER WARMER
COLDER WARMER
COLDER WARMER
COLDER WARMER
COLDER WARMER
2nd and 3rd Index Digits
COLDER WARMER
1st Index Digit
COLDER WARMER
Location Code Flashes Every 3 Seconds (F=Freezer)
COLDER WARMER
Location Code Flashes Every 3 Seconds (E=Evaporator)
3-40
PURE AIR ALARM POWER
PURE AIR ALARM POWER
PURE AIR ALARM POWER
PURE AIR ALARM POWER
PURE AIR ALARM POWER
