Assembly - Maxxus OXFORD AXR Installation & Operating Manual

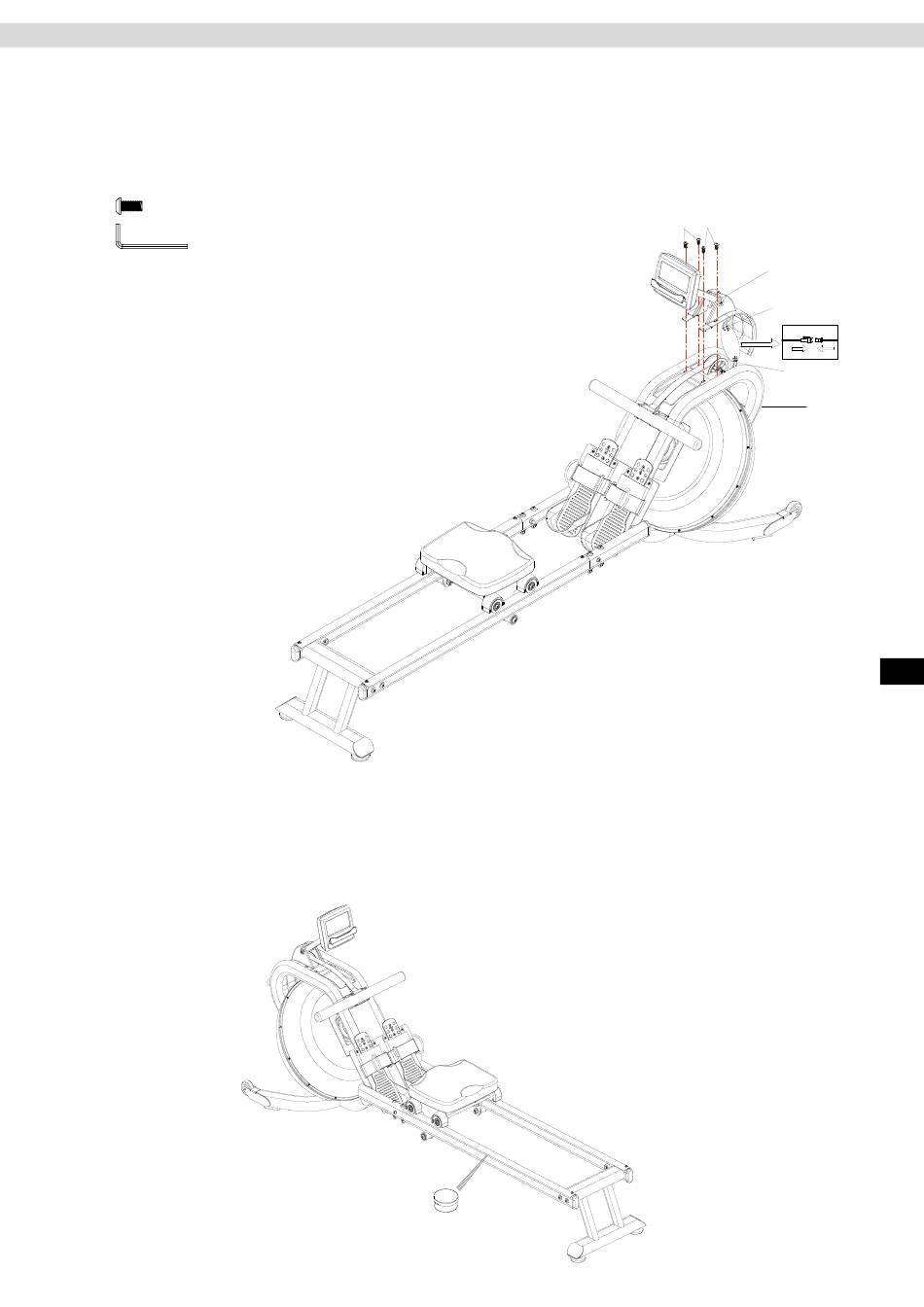

Step 3:
− Connect the cable (96) protruding out of the cockpit frame (26F) with cable (56) protruding out of the base
frame (1).
− Insert the cockpit frame (26F) in the mounts on the base frame (1). Make sure you do not crush or damage
the cables when doing this.
− Fix the cockpit frame (26F) to the base frame (1). To do this use four bolts M8x15 (68).
(68) Bolt M8x15 – 4 pieces
(93) Allen key
Step 4:
− Clean the surfaces of the aluminium slide rails before initial use and then at regular intervals after that. To
do this use some slightly soapy water or for best results clean the slide rails with the MAXXUS degreaser
spray.
− Then lightly lubricate the surfaces of the aluminium slide rail with the lubricator included in delivery. For
regular lubrication we recommend you to use MAXXUS lubricating spray.
7

Assembly

68 68
26F
96
56
1
