Fixing Materials - Maxxus OXFORD AXR Installation & Operating Manual

Diagram
Damage that has arisen due to assembly errors is not covered by the warranty. Please read the instructions careful-
ly before starting, follow the sequence of assembly steps exactly and follow the instructions of each assembly step.
Installation of the exercise equipment must be performed by competent adults. Since some components may have
sharp edges, wear suitable work gloves during assembly.
Carry out the assembly of your training equipment in a place that is level, clean and free from obstructions. Carry
out assembly with 2 people. Only after assembly is fully completed can training begin on your device.

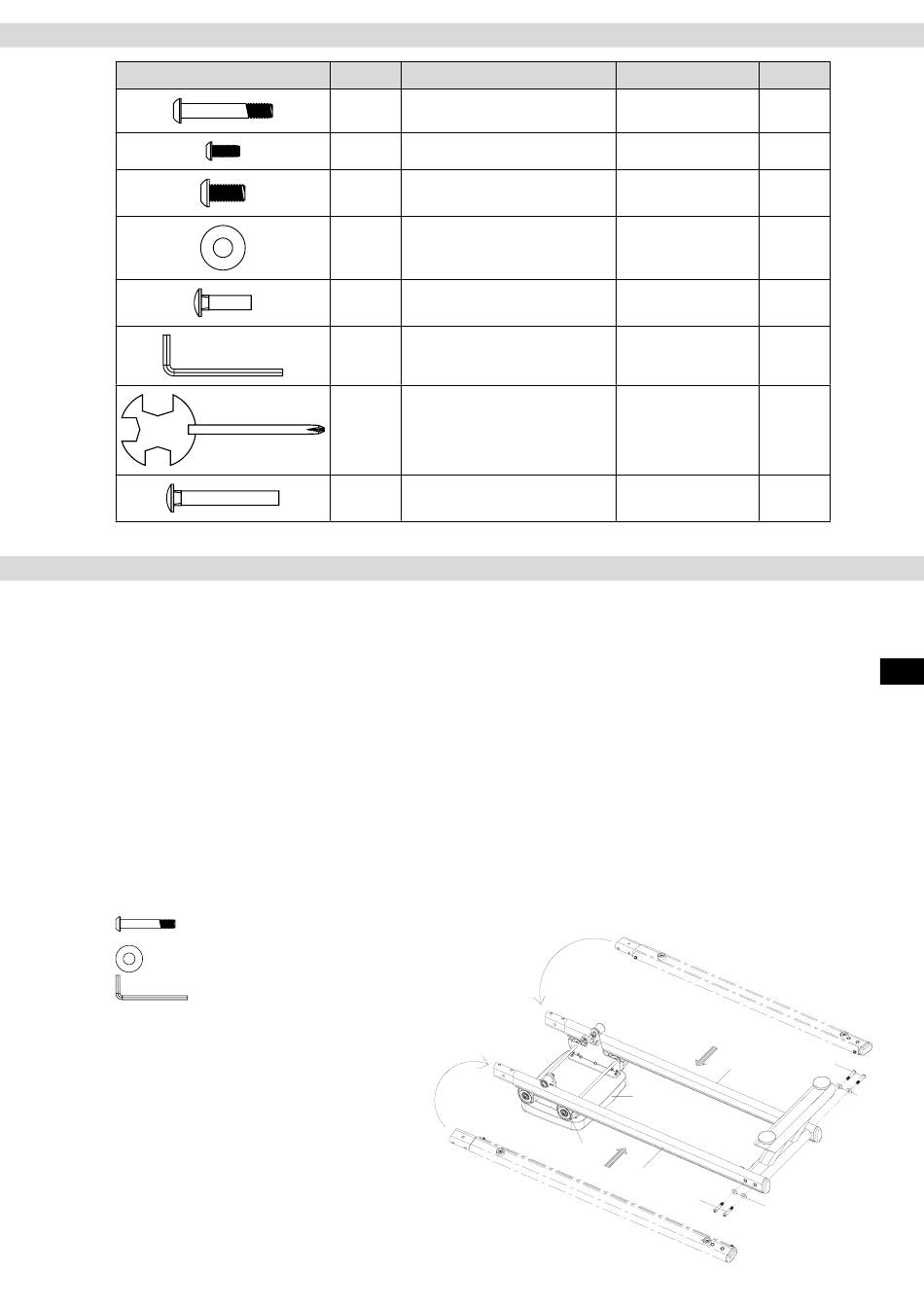

Step 1:
− Place the seat upside down on the floor
− Place the right and left slide rails (3R/3L) next to the seat as shown in the diagram.
− Insert the right and left slide rails into the slide rollers on the seat. Make sure that the aluminium rail has con-
tact with the rollers.
− Fix the stand to the rear end of the slide rails using two bolts M8x45 (63) and two washers Ø20xØ8.5 (74) on
each side.
(63) Bolt M8x45 – 4 pieces
(74) Washer Ø20xØ8.5 – 4 pieces
(93) Allen key
Part No. Description
63 Bolt
65 Bolt
68 Bolt
74 Washer
77 Sleeve nut
93 Allen key
94 Spanner / Phillips Screwdriver
99 Sleeve nut
5
Size
M8x45
M6x15
M8x15
Ø20xØ8.5xT1.5
M8x27
M6 / 5mm
13 / 17
M8x57
3L
38
39
3R
63
Fixing Material
Qty
4
6
4
4
2
1
1
4
Assembly
ENG
63
74
74
