Maxxus OXFORD AXR Installation & Operating Manual page 6

Assembly
Step 2:

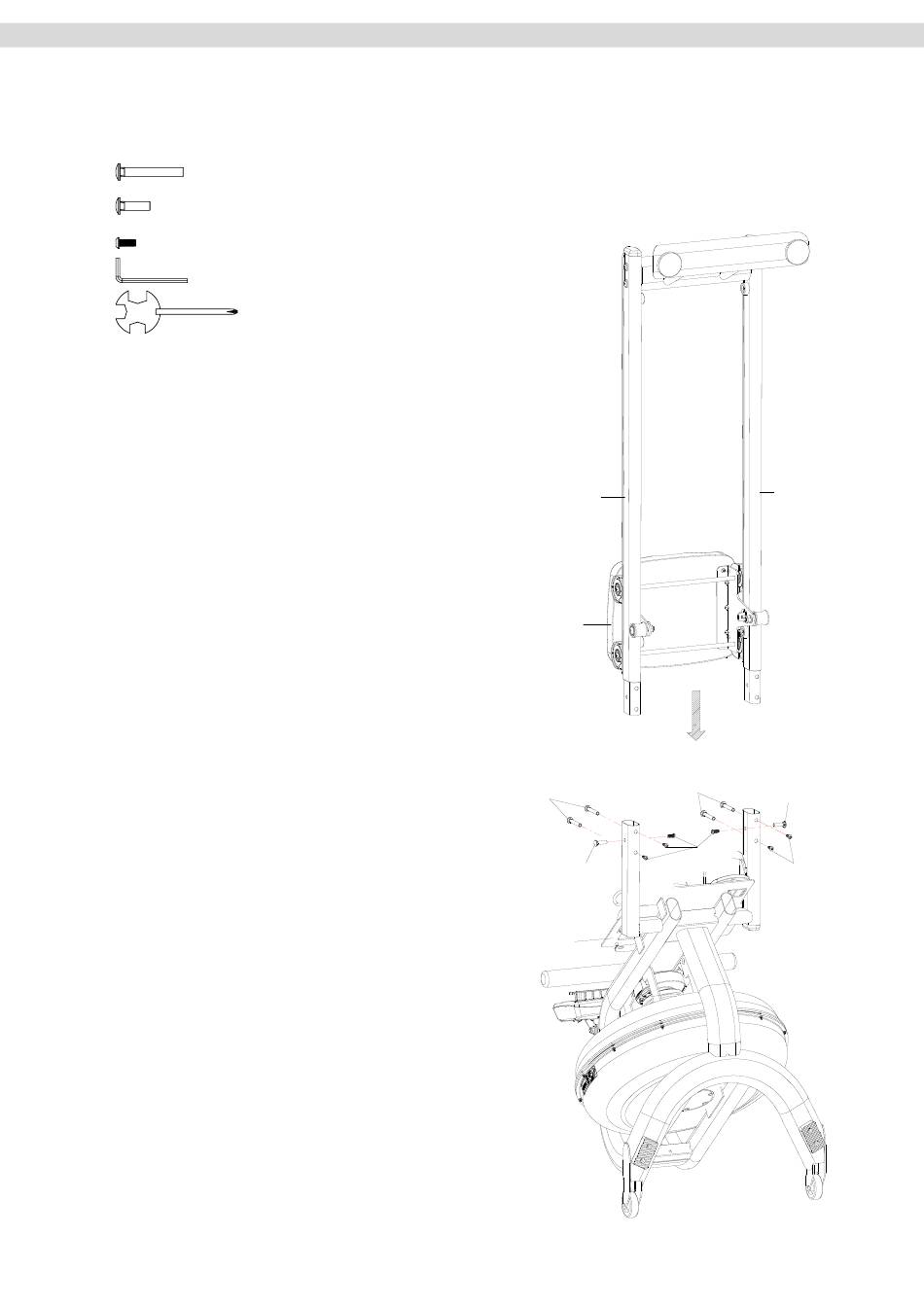

− Place the base frame (1) on the floor with the mounts for the slide rails facing upwards.
− Insert the slide rails (3R&3L) into the mounts on the base frame (1).
− Fix the slide rails to the base frame. To do this use two bolts M6x15 (65) and a sleeve nut M8x27 (77).
(99) Sleeve nut M8x57 – 4 pieces
(77) Sleeve nut M8x27 – 2 pieces
(65) Bolt M6x15 – 6 pieces
(93) Allen key
(94) Screw driver
3L
38
99
77
1
6
3R
99
77
65
65
