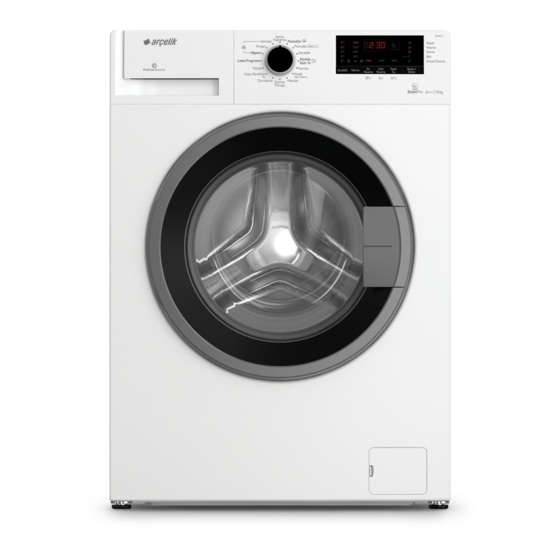

- Page 1 Washing machine User Manual 10124 D 10124 DA Document Number 2820528054_EN/ 04-11-19.(8:24)
-
Page 2: General Safety Instructions
1 General safety instructions • Do not force open the locked loading door. Door can be This section includes security opened a few minutes after the instructions which may help prevent washing cycle ends. In case the injuries and material damage risks. of forcing the loading door to All kinds of warranties shall be invalid if open, the door and the lock... -
Page 3: Children's Safety
1.3 Children’s safety CAUTION! • Do not forget to close the CAUTION! loading door when leaving the • This product can be used by room where the product is the children who are at the located. age of 8 and over and the •... -
Page 4: Important Instructions For Environment
2. Important instructions for DANGER! environment • Plug the product into a 2.1 Compliance with WEEE Directive grounded outlet protected by This product complies with EU a 16 A fuse. Do not neglect to WEEE Directive (2012/19/EU). This product bears a classification have the grounding installation symbol for waste electrical and made by a qualified electrician. -
Page 5: Technical Specifications
Main model code Complying Commission Delegated Regulation (EU) No 1061/2010 Supplier name or trademark Arçelik Model name 10124 D Rated capacity (kg) Energy efficiency class / Scale from A+++ (Highest Efficiency) to D (Lowest Efficiency) A+++ Annual Energy Consumption (kWh) Energy consumption of the standard 60°C cotton programme at full load (kWh) -
Page 6: Appropriate Installation Location
4.1 Installation 4.1.3 Removing the transportation locks • Apply to the nearest authorised service agent for the installation of your product. 1. Loosen all bolts with an appropriate wrench until they turn freely. • Preparation of the location and electrical, tap water and waste water installations at 2. -
Page 7: Connecting The Drain Hose To The Drain
• In case the drain hose is elevated after laying it on the floor level or close to the ground (less than 40 cm above the ground), water discharge becomes more difficult and the laundry may come out excessively wet. Therefore, follow the heights described in the figure. -
Page 8: Electrical Connection
4.2 Preparation 4.1.7 Electrical connection Connect the product to a grounded outlet 4.2.1 Sorting the laundry protected by a 16 A fuse. Our company shall * Sort laundry according to type of fabric, not be liable for any damages that will arise color, and degree of soiling and allowable when the product is used without grounding in water temperature. -
Page 9: Loading The Laundry
4.2.3 Things to be done for energy saving The detergent drawer Following information will help you use the product in an ecological and energy-efficient manner. is composed of three • Operate the product in the highest compartments: capacity allowed by the programme you –... -
Page 10: Using Starch
Using gel and tablet detergent • Do not use amounts exceeding the dosage quantities recommended on the detergent • If the gel detergent thickness is fluidal and package to avoid problems of excessive your machine does not contain a special liquid foam, poor rinsing, financial savings and detergent cup, put the gel detergent into the finally, environmental protection. -
Page 11: Tips For Efficient Washing
4.2.7 Tips for efficient washing Clothes Light Colours and Black/Dark Delicates/ Colours Whites Colours Woolens/Silks (Recommended (Recommended (Recommended temperature (Recommended temperature temperature range temperature range range based on soiling level: range based on soiling level: based on soiling based on soiling 40-90 oC) cold-40 oC) level: cold -40 oC) -
Page 12: Operating The Product
4.3 Operating the product 1 - Programme Selection Knob (Uppermost position On / Off) 4.3.1 Control panel 2 - Display 3 - End Time Adjustment Button 4 - Programme Follow-up Indicator 5 - Start/Pause Button Açma Kapatma Pamuklu Gömlek 90° 1200 Kapak Yorgan... -
Page 13: Main Programmes
4.3.5 Main programmes • : Selectable Depending on the type of fabric, use the * : Automatically selected, cannot be cancelled. following main programmes. ** : Energy Label Programme (EN 60456 Ed.3) • Cottons ***: If the maximum spin speed of the machine You can wash your durable cotton laundry is lower, you can select values up to the (sheets, bedlinen, towels, bathrobes, underwear... - Page 14 Cottons Eco • • DarkCare / Jeans Use to wash your normally soiled, durable Use this programme to preserve the colour cotton and linen laundry. Although it washes of your dark-coloured clothes and jeans. This longer than all other programmes, it provides programme provides high efficiency in washing, high energy and water savings.
-
Page 15: Special Programmes
• Bedding When the quick function is not selected: Use this programme to wash your fiber duvets Butter Food that bear "machine washable" tag. Check that Grass Mayonnaise you have loaded the duvet correctly in order not Salad Dressing to damage the machine and the duvet. Remove Coke Make-up the duvet cover before loading the duvet into the... - Page 16 To do this, the machine must be in a step INFORMATION before the auxiliary function you are going to select or cancel. If the auxiliary function cannot • If the programme has not reached be selected or canceled, light of the relevant the heating step, you can change function will flash 3 times to warn the user.
-
Page 17: Functions/Programmes Selected By Pressing The Function Buttons For 3 Seconds
4.3.10.2 Functions/Programmes To disable Child Lock: Selected by Pressing the Function Press and hold the Auxiliary Function button 2 for 3 seconds while the programme is running. Buttons for 3 Seconds While you’re holding the button pressed for 3 seconds, C03, C02 and C01 will be displayed respectively. - Page 18 4.3.12 Starting the programme 3. Press the End Time Adjustment button and select the desired time. 1. Press Start/Pause button to start the programme. 4. Press the Start/Pause button. The delayed end time you have set will be displayed. 2. Programme follow-up light showing the Countdown will start for delayed end.
- Page 19 4.3.14 Loading door lock 4.3.16 Cancelling the programme There is a locking system on the loading door of To cancel the programme, turn the Programme the machine that prevents opening of the loading Selection knob to select another programme. door in cases when the water level is unsuitable. Previous programme will be cancelled.
-
Page 20: Maintenance And Cleaning
4.4 Maintenance and cleaning INFORMATION Service life of product extends and frequently • Foreign metal substances will cause experienced problems will be reduced if it is rust stains in the drum. Clean the cleaned at regular intervals. stains on the drum surface by using 4.4.1 Cleaning the detergent drawer cleaning agents for stainless steel. -
Page 21: Draining Remaining Water And Cleaning The Pump Filter
4.4.5 Draining remaining water 3 Follow the below procedures in order to drain water. and cleaning the pump filter The filter system in your machine prevents solid items such as buttons, coins and fabric The product does not have an emergency fibers clogging the pump impeller during water drain hose, in order to drain the water: discharge of washing water. -
Page 22: Troubleshooting
5 Troubleshooting Machine directly discharges the water it takes in. • Draining hose might not be at adequate height. >>>Connect the water draining hose as described in the Program does not start after closing the door. operation manual. • Start / Pause / Cancel button was not pressed. >>>*Press No water can be seen in the machine during the Start / Pause / Cancel button. - Page 23 Programme time does not countdown. (*) Washing performance is poor: Clothes smell unpleasantly. (**) • There might be unbalanced load in the machine. >>>Automatic unbalanced load detection system might • Odours and bacteria layers are formed on the drum as a be activated due to the unbalanced distribution of the result of continuous washing at lower temperatures and/ laundry in the drum.
- Page 24 Detergent residue in the detergent drawer. (**) Laundry remains wet at the end of the programme. • Detergent is put in wet drawer. >>>Dry the detergent drawer before putting in detergent. • Excessive foam might have occurred and automatic foam •...
