mikroElektronika Bluetooth2 click Quick Start Manual

Bluetooth2 click
1. Introduction

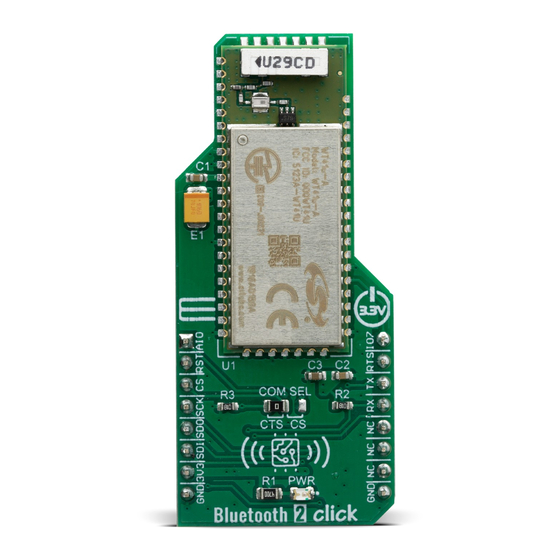

Bluetooth2 Click is an accessory board
™
mikroBUS
in form factor. It's a compact
™
and easy solution for adding bluetooth
module to your design. It features
BLUEGIGA WT41 Bluetooth® 2.1 with EDR
module. Bluetooth2 Click ™ communicates
with the target board microcontroller via
mikroBUS UART (Tx, Rx), SPI (MOSI,
™
MISO, SCK, CS), SDA, SCL, RST, AN, INT and
PWM lines. The board is designed to use
3.3V power supply only. LED diode (GREEN)
indicates the presence of power supply.

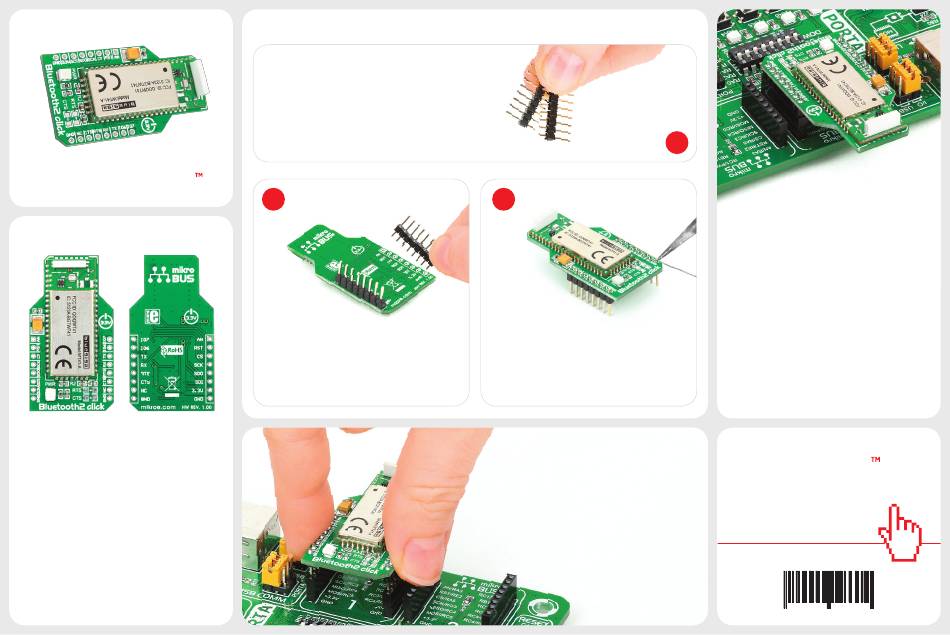

2. Soldering the headers
Before using your click board™, make sure
to solder 1x8 male headers to both left
and right side of the board. Two 1x8 male
headers are included with the board in
the package.
2
Turn the board upside down so that
bottom side is facing you upwards. Place
shorter parts of the header pins in both
soldering pad locations.
1
3
Turn the board upward again. Make sure
to align the headers so that they are
perpendicular to the board, then solder the
pins carefully.
3. Plugging the board in
Once you have soldered the headers your
board is ready to be placed into desired
mikroBUS™ socket. Make sure to align the
cut in the lower-right part of the board
with the markings on the silkscreen at the
mikroBUS™ socket. If all of the pins are
aligned correctly, push the board all
the way into the socket.
4. Essential features
WT41
Bluetooth2 Click ™ with it's contains all
the necessary elements from Bluetooth radio
®
to antenna and fully implemented protocol
stack. It is equipped with iWRAP firmware
which enables users to access Bluetooth
functionality with simple ASCII commands
delivered to the module. It is ideal for
developers who want to integrate Bluetooth
wireless protocol with limited knowledge of
Bluetooth and RF technologies. The board is
®
optimized for long range applications.
click
BOARD
www.mikroe.com
Bluetooth2 click Manual
ver. 1.00
