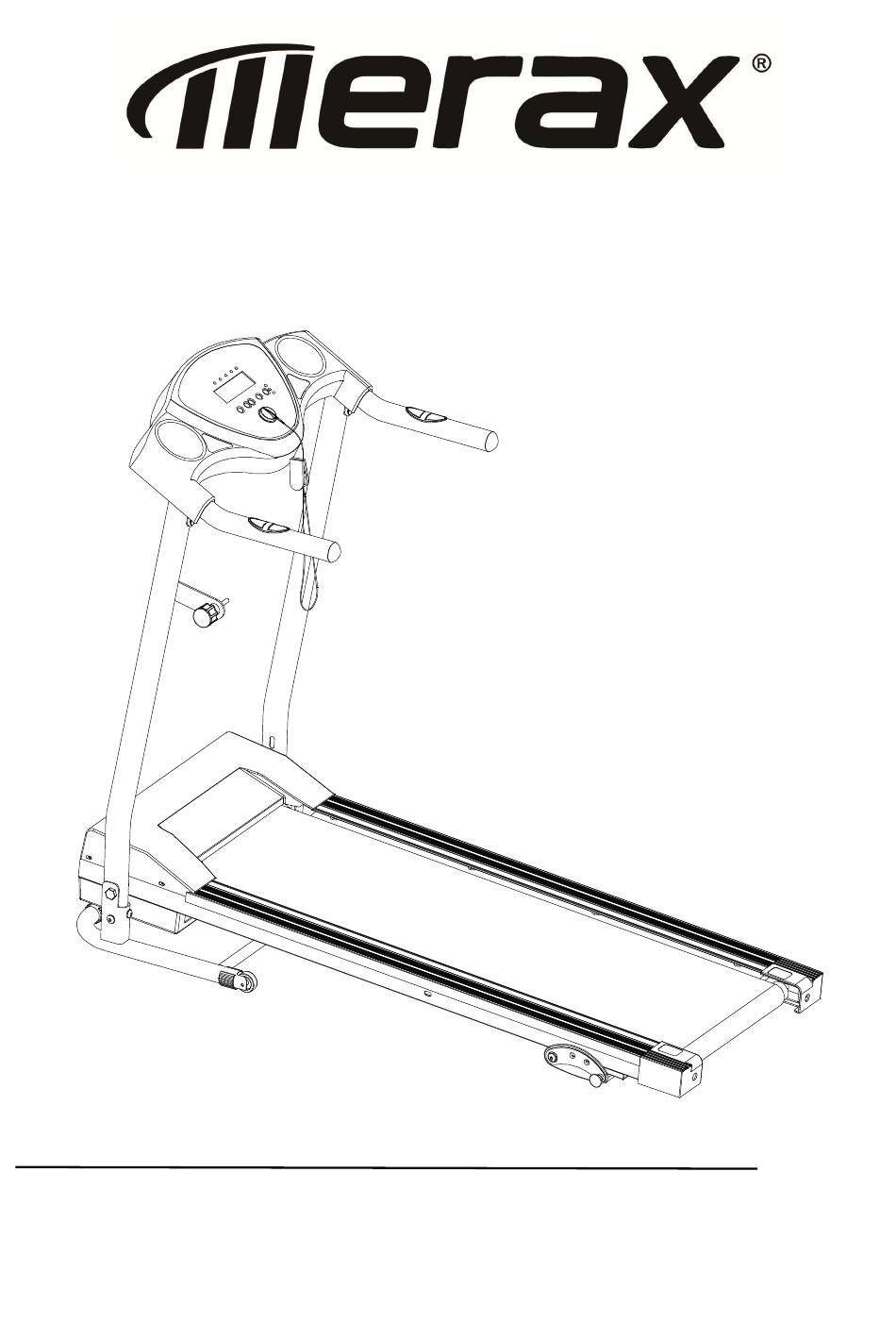

- Page 1 MOTORIZED TREADMILL KBR-JK1603E INSTRUCTION Please read this instruction carefully before use it and keep the instruction at proper place. Customer Service:csr@merax.com...
-
Page 2: Caution During Use
1. CAUTION To avoid any hurts, please read this manual carefully before using. For safety purpose do not stand on running belt while start. Please stop immediately for any feeling of vomit、jerky during using. Please speed up slowly if needed. ... -
Page 3: Technical Specification
Please place the machine on flat places. Do not locate any objects 2M behind the machine. Do not start the machine when it is folded. Water-drop is prohibited to run into the machine , especially to motor, power line and plug. -
Page 4: Hardware And Tools
5. Hardware and Tools Serial NO. Part Name Spec unit Main Frame φ8 Socket head screw M8*15 Hex. Wrench Fix knob M16*55 Safety key Silicone oil... -
Page 5: Assemble Instruction
5. Assemble Instruction 1. Place the treadmill on the ground, unfold the treadmill by hand carefully.Tighten the frame to the base with 4 socket head screws in the tool bag (2 screws on each side). 2. Unfold the panel and fix the panel to the supporting frame with the pre-installed screws (See Fig 2) 3.The knob at the bottom of the frame can turn around based on the the position of the adjuster,and make sure the knob withstand the base and steady enough. -
Page 6: Control Panel
6. Control Panel ①SPEED（KM/H）：1.0~10.0KM/H ②DISTANCE（METER）：1~9999METER ③CALORIE（CAL）：1~9999CAL ④TIME（MINUTE : SECOND）：00:00~60:00 1. Plug in the power, open the power switch on the backside of the base,the screen display “ERR”，put on safety key and the screen display“OFF” 2. When the screen display“OFF”， Press“START/STOP”key, the machine will start by 1km/h after 3 seconds. - Page 7 7. Auto Mode TIME 1 5 3 4.5 6 7 5 9 10.5 12 13 5 15 16.5 18 19.5 21 22.5 24 25.5 27 28 5 30 SPEE D TIME 1 5 3 4.5 6 7 5 9 10.5 12 13 5 15 16.5 18 19.5 21 22.5 24 25.5 27 28 5 30 SPE ED TI ME 15 3 4.5 6 7 5 9 10.5 12 135 15 16.5 18 19.5 21 22.5 24 25.5 27 285 30...
- Page 8 8. Unfold Fold and Move Unfold：Pull the tensile Knob and put the base on the ground smoothly Fold and Move：After use, please fold the machine and insert the tensile Knob. 9. USAGE OF SILICONE OIL Pull up the running belt tightly . Then put the silicone oil to running board.
- Page 9 10. Runbelt Adjustion (1) Running belt deviate to left Start the machine at 2-3Km/h without loading, adjust by tightening the left side clockwise for a quarter of half turns(see fig1). keep running the machine without loading for 1-2 minutes. Please adjust like this till the belt move to mid place. (2) Running belt deviate to right Start the machine at 2-3Km/h without loading, adjust by tightening the right side clockwise for a quarter of half turns(see fig2).
