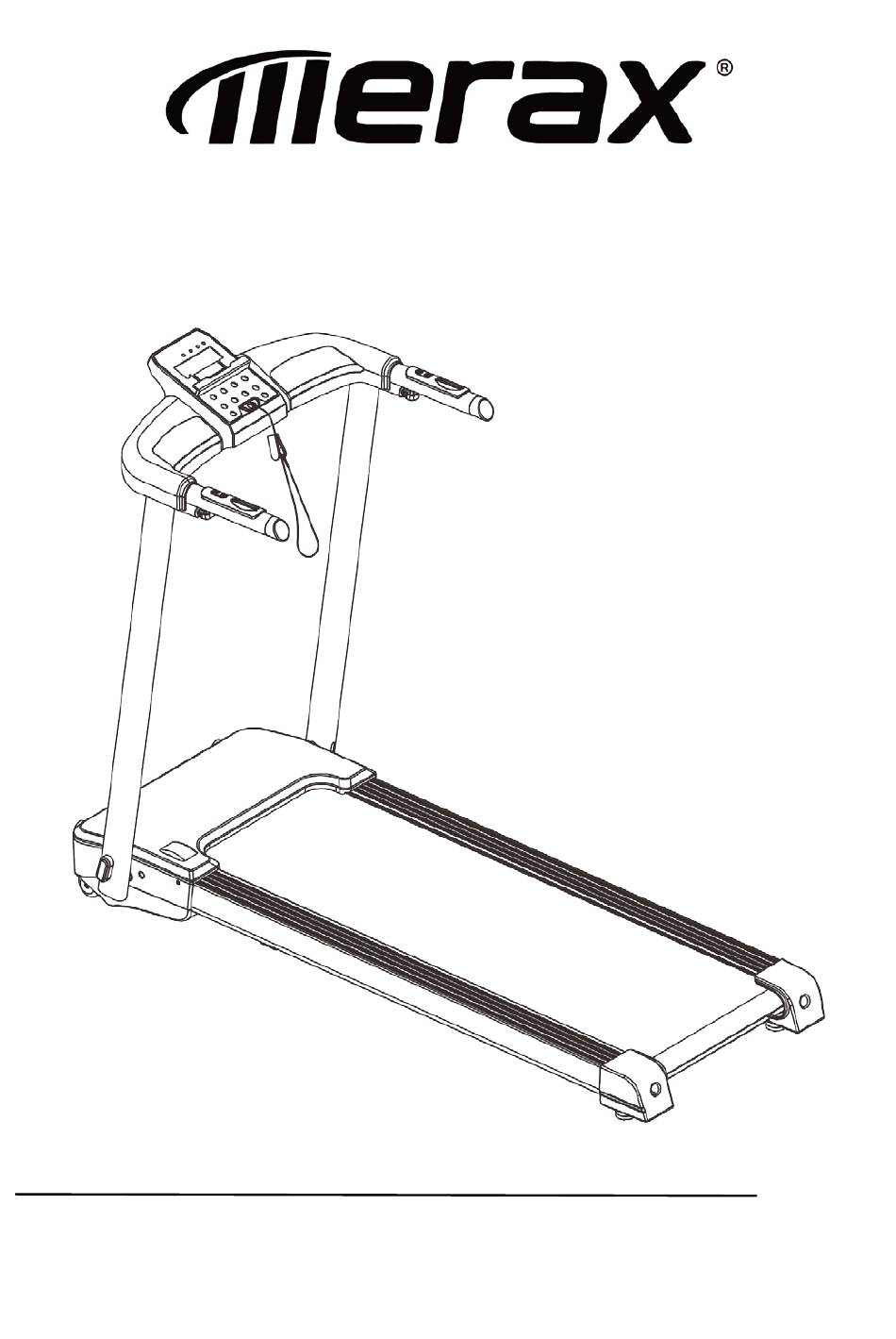

MOTORIZED TREADMILL
KBR-JK103A
INSTRUCTION
Please read this instruction carefully before use it and keep the instruction at proper
place.
Customer Service: csr@merax.com Tel: 626-912-8886 Ext. 100
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KBR-JK103A and is the answer not in the manual?

Questions and answers

Jeff Hayes
January 28, 2025

How to lubricate the treadmill. JK103A

0

Related Manuals for Merax KBR-JK103A

Summary of Contents for Merax KBR-JK103A

  • Page 1 MOTORIZED TREADMILL KBR-JK103A INSTRUCTION Please read this instruction carefully before use it and keep the instruction at proper place. Customer Service: csr@merax.com Tel: 626-912-8886 Ext. 100...

  • Page 2: Caution During Use

    3. CAUTION DURING USE  If you do not feel well before using, please consult your doctor or coach.  Merax is not responsible for any injury or damage caused by improper use.  Please unplug the equipment when not in use.

  • Page 3: Technical Specification

    should consult their doctor before starting any exercise routine.  Please place the machine on a level flat surface. There should be 2M of clearance behind the treadmill.  Do not start the machine when it is folded.  Keep all electrical components, especially motor, power cord and plug, away from water or other liquids.

  • Page 4: Assemble Instruction

    6. Assemble Instruction Please confirm all parts necessary are present before assembling this machine: 1. We recommend that you have another person to help you take the equipment out from the carton. Fix the upright tubes on the base frame with two M12 knobs. For now, please do not tighten them completely.

  • Page 5: Control Panel

    7. Control Panel ① SPEED (KM/H): 1.0~12.0KM/H ② DISTANCE (METER): 1~9999METER ③ CALORIE (CAL): 1~9999CAL ④ TIME (MINUTE : SECOND): 00:00~60:00 1) Press "START" key, the machine will start from 1KM/H after 3 seconds. 2) Press"+" key to speed up and "-" key to slow down. The fastest speed is 12 KM/H and lowest is 1 KM/H.
  • Page 6 TIME 1 5 3 4.5 6 7 5 9 10.5 12 13 5 15 16.5 18 19.5 21 22.5 24 25.5 27 28 5 30 SPEE D TIME 1 5 3 4.5 6 7 5 9 10.5 12 13 5 15 16.5 18 19.5 21 22.5 24 25.5 27 28 5 30 SPE ED TI ME 15 3 4.5 6 7 5 9 10.5 12 135 15 16.5 18 19.5 21 22.5 24 25.5 27 285 30...
  • Page 7 8. Unfold, Fold and Move  Unscrew the M12 knobs on the upright tubes and fold the tubes. Pull out the pull pin on the handrail of console to fold the console  Use the same M12 knobs you just unscrewed to tighten the upright tubes to the base frame.
  • Page 8 10. Running Belt Adjustment 1) Running belt deviate to left With the running machine running at 2-3Km/h, tighten the left bolt 1/4 turn at a time clockwise (see fig1). Keep the machine running for 1-2 minutes to gauge if more adjustment is needed.

  • Page 9: 12. Trouble Shooting

    12. Trouble Shooting Error Code Meaning Problem Solution 1. Put the safety key in the yellow area of the panel. Safety key is not in No safety key Err (or E00) place or it is not 2. If the error still shows or there on the panel properly put on is no reaction, replace the...
