LM.60i

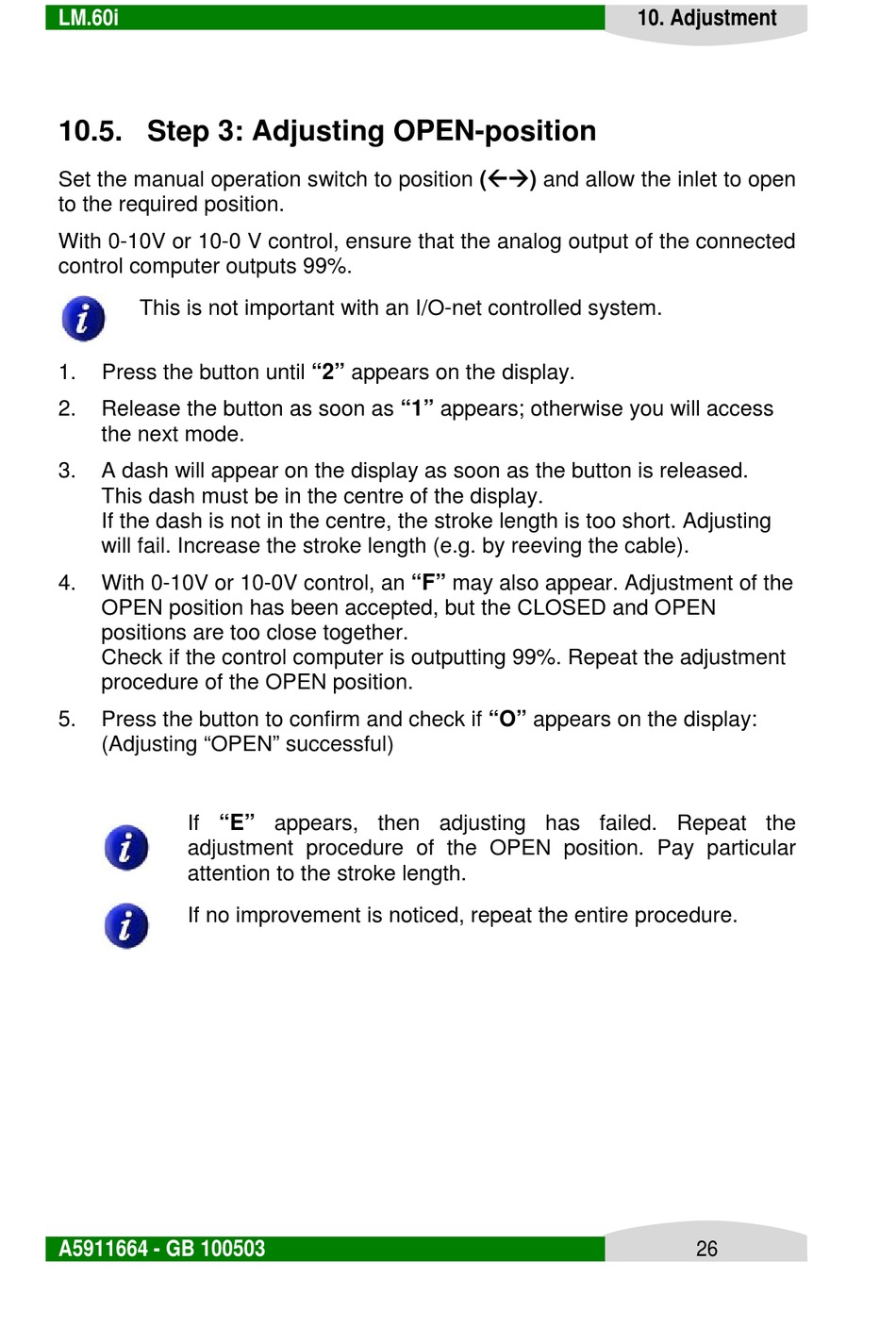

10.5. Step 3: Adjusting OPEN-position

Set the manual operation switch to position () and allow the inlet to open
to the required position.
With 0-10V or 10-0 V control, ensure that the analog output of the connected
control computer outputs 99%.
This is not important with an I/O-net controlled system.
1. Press the button until "2" appears on the display.
2. Release the button as soon as "1" appears; otherwise you will access
the next mode.
3. A dash will appear on the display as soon as the button is released.
This dash must be in the centre of the display.
If the dash is not in the centre, the stroke length is too short. Adjusting
will fail. Increase the stroke length (e.g. by reeving the cable).
4. With 0-10V or 10-0V control, an "F" may also appear. Adjustment of the
OPEN position has been accepted, but the CLOSED and OPEN
positions are too close together.
Check if the control computer is outputting 99%. Repeat the adjustment
procedure of the OPEN position.
5. Press the button to confirm and check if "O" appears on the display:
(Adjusting "OPEN" successful)
If "E" appears, then adjusting has failed. Repeat the
adjustment procedure of the OPEN position. Pay particular
attention to the stroke length.
If no improvement is noticed, repeat the entire procedure.
A5911664 - GB 100503
10. Adjustment
26
