LM.60i

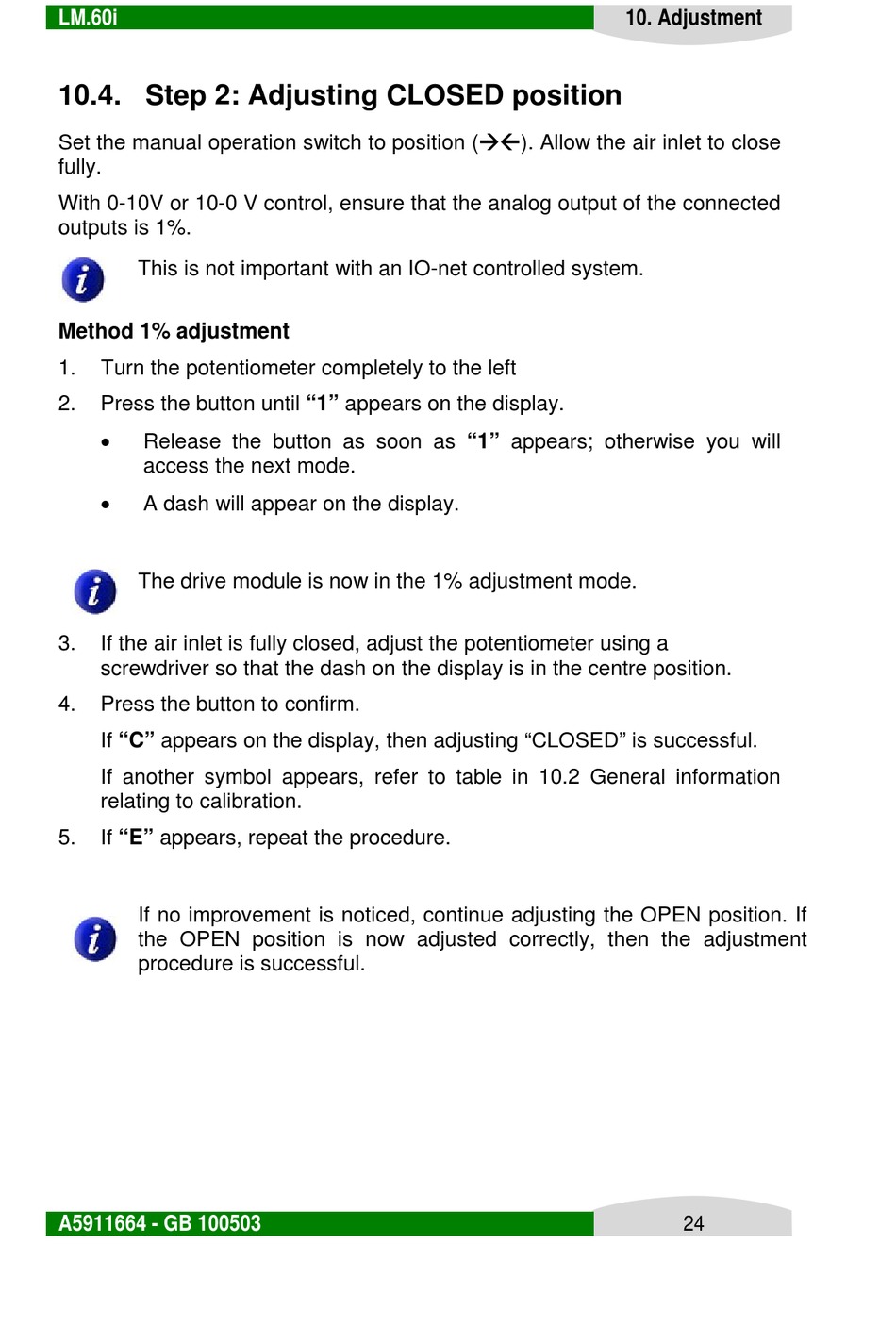

10.4. Step 2: Adjusting CLOSED position

Set the manual operation switch to position (). Allow the air inlet to close
fully.
With 0-10V or 10-0 V control, ensure that the analog output of the connected
outputs is 1%.
This is not important with an IO-net controlled system.
Method 1% adjustment
1. Turn the potentiometer completely to the left
2. Press the button until "1" appears on the display.
•
Release the button as soon as "1" appears; otherwise you will
access the next mode.
•
A dash will appear on the display.
The drive module is now in the 1% adjustment mode.
3. If the air inlet is fully closed, adjust the potentiometer using a
screwdriver so that the dash on the display is in the centre position.
4. Press the button to confirm.
If "C" appears on the display, then adjusting "CLOSED" is successful.
If another symbol appears, refer to table in 10.2 General information
relating to calibration.
5. If "E" appears, repeat the procedure.
If no improvement is noticed, continue adjusting the OPEN position. If
the OPEN position is now adjusted correctly, then the adjustment
procedure is successful.
A5911664 - GB 100503
10. Adjustment
24
