LM.60i

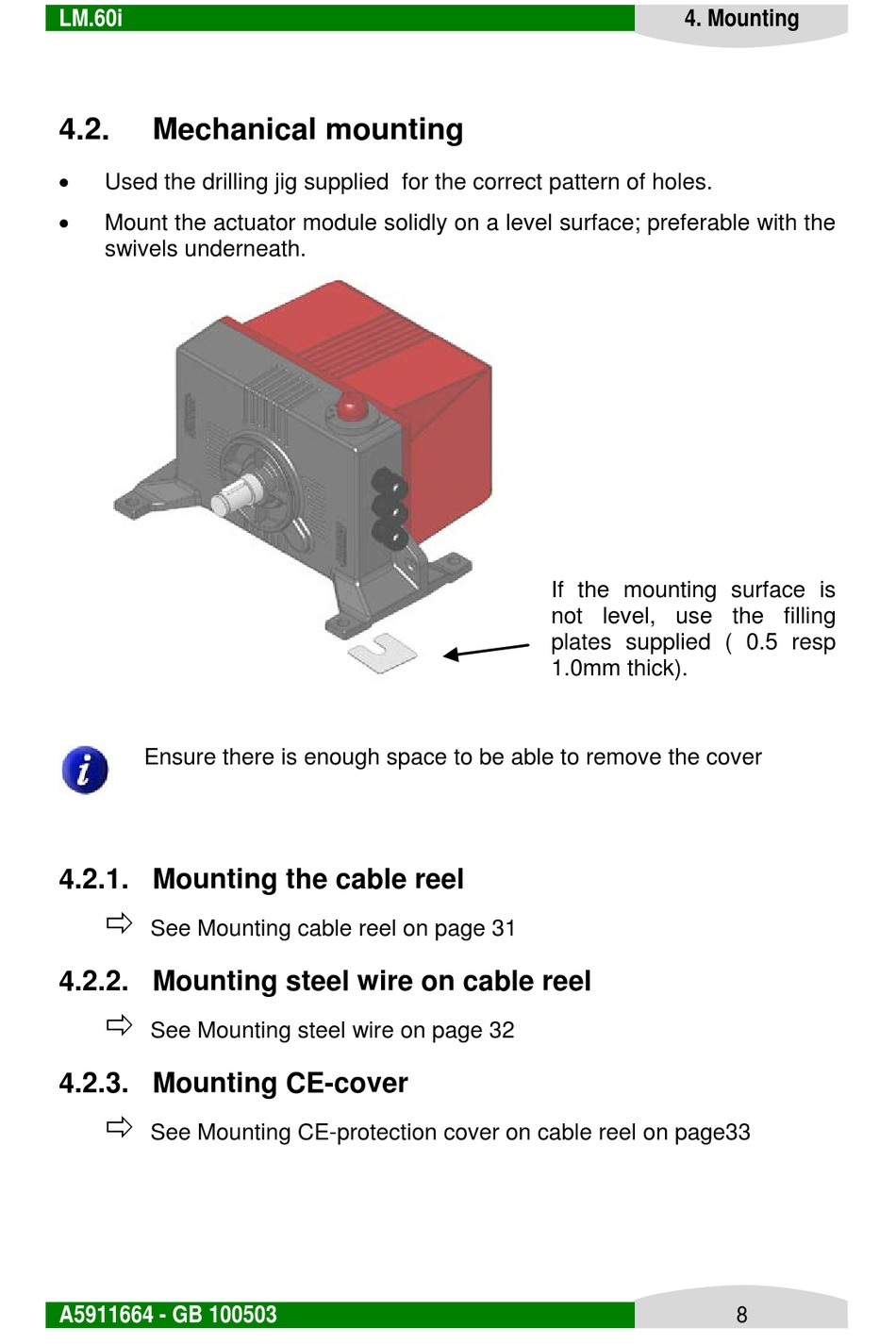

4.2.
Mechanical mounting
•
Used the drilling jig supplied for the correct pattern of holes.
•
Mount the actuator module solidly on a level surface; preferable with the
swivels underneath.
Ensure there is enough space to be able to remove the cover
4.2.1. Mounting the cable reel
See Mounting cable reel on page 31
4.2.2. Mounting steel wire on cable reel
See Mounting steel wire on page 32
4.2.3. Mounting CE-cover
See Mounting CE-protection cover on cable reel on page33
A5911664 - GB 100503
4. Mounting
If the mounting surface is
not level, use the filling
plates supplied ( 0.5 resp
1.0mm thick).
8
