Battery Charging

When you see the low battery icon on the LCD display, you'll need to charge the unit. To
charge, make sure the unit is off, then open the USB cover and use the enclosed cable to
connect the scope to a power source. A full charge takes about 70 minutes.

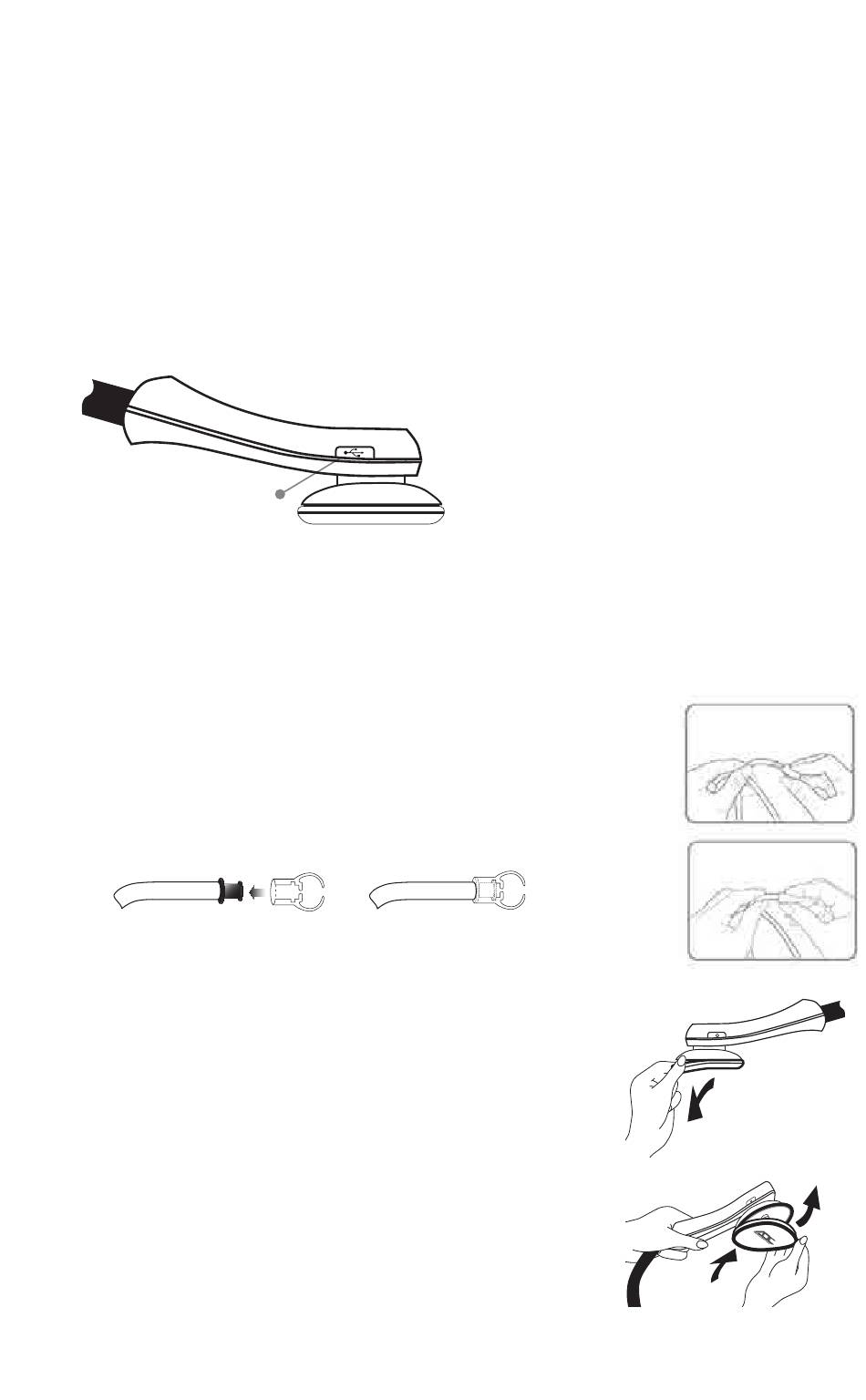

When the unit is off and the battery is charging, the backlight display will be red. A blue
backlight while charging simply means the unit is on, and does not reflect when charging
is complete. To confirm that the unit is fully charged, remove the USB cable, power on,
and check the battery icon.
Cell Model No: PR-632540N
Product Name:
Secondary ( Rechargeable ) 3.7V Li-ion
Battery 620mAh, 2.294Wh
USB
TCL Hyperpower Batteries Inc
Port
No.,3,Hechangdongliu Rd.
Huitai Industrial Zone,
NOTE:
Huicheng District, Huizhou,
• Fully charge before first use.
Guangdong,P.R.China,516006
• The 658 scope cannot be used while it is being charged.
Replacing the Eartips
To replace AdsoftTM Plus Eartips: Slide the eartip over adapter
until it locks tight into internal channel. Repeat steps for second aural
tube. Eartips may be removed from binaurals for a thorough cleaning.
Periodically check that eartips are tightly secured to binaurals.
Caution: Always check security of eartip before inserting in ears.

Replacing the Diaphragm

Your 658 chestpiece is equipped with an ultrasensitive piezoelectric
sound transducer, covered by a silicone diaphragm.
Figure 1
To remove the silicone diaphragm: Gently pull off one side of
the diaphragm from the rim, and continue around
edge until the diaphram comes completely off (Figure 1).
To replace the silicone diaphragm:
Clip one edge of the new diaphragm on the chestpiece rim and
gently stretch until entire diaphragm inserts fully in the track
around the rim (Figure 2).
Figure 2
6
