An acoustic microphone used in most electronic stethoscopes may have frequency
characteristics not suitable for the body sounds, especially for the low-frequency heart
sounds. Other stethoscopes provide the internal body sounds not directly from the body
surface, but through the air layer between the body surface and the microphone. The 658
solves these problems with the use of a piezopolymer film contact microphone which is
the heart of the 658. The 658 has wide-frequency characteristics and enables you to detect
the heart and lung sounds more precisely.

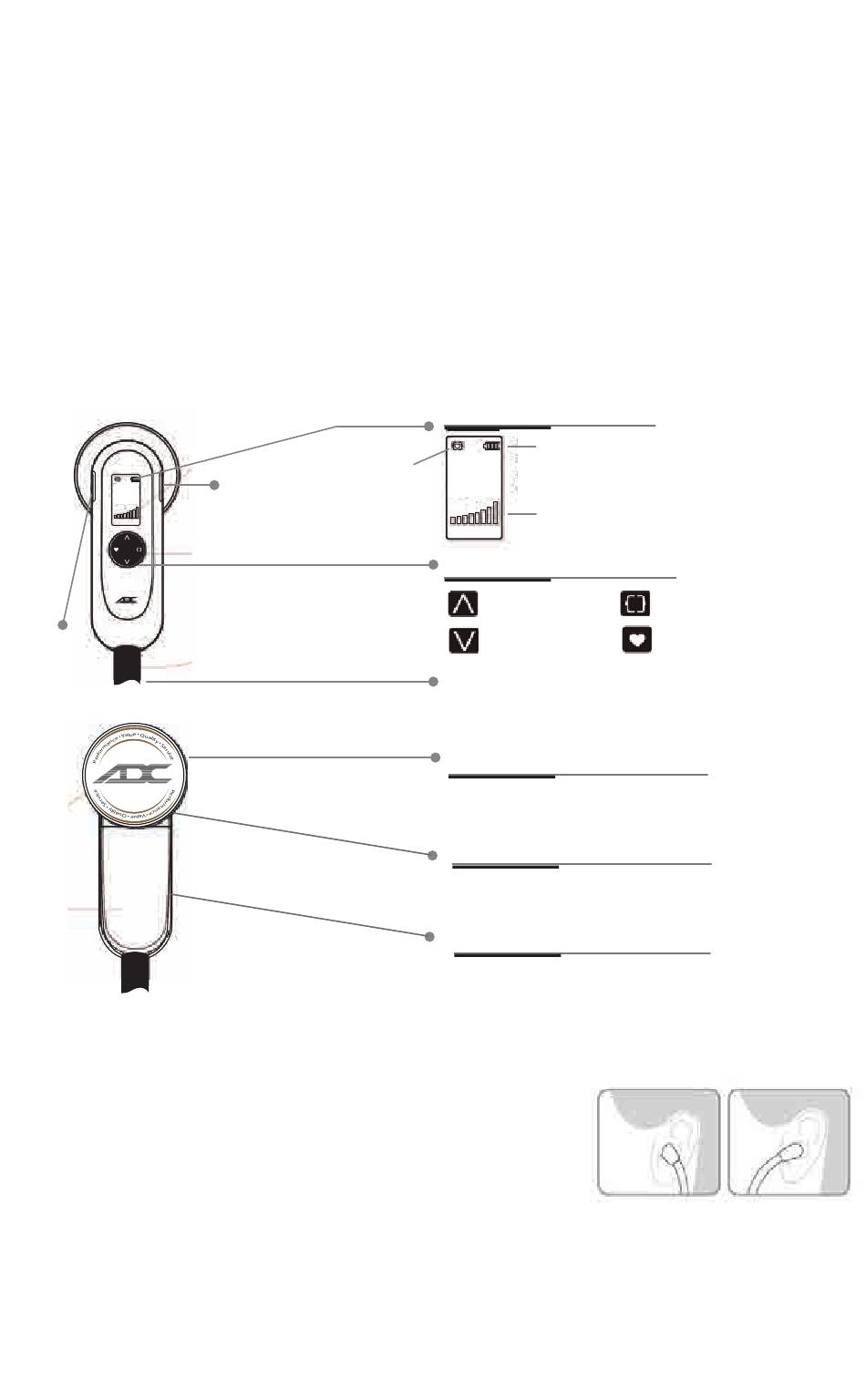

Name and Function of Each Part
Power
Button
®
American Diagnostic Corporation
Operation of the Headset
The Adscope 658 electronic stethoscope is designed to
provide comfortable ear fittings and the best sound
transmission. The binaurals (ear tubes) are angled at
15° to permit a comfortable, acoustically sealed aural fit.
Eartips should point forward, towards the bridge of the nose, to fit properly.
Mode
(Bell/Diaphragm)
USB
Port
Display
Battery
Volume
Multifunction Button
Volume up
Volume down
Tubing
Chestpiece
• Contact microphone
• Protective cover
Diaphragm
• Silicone diaphragm

Battery Compartment

• Li-ion battery
• Reset button
4
Diaphragm mode
Bell mode
CORRECT INCORRECT
