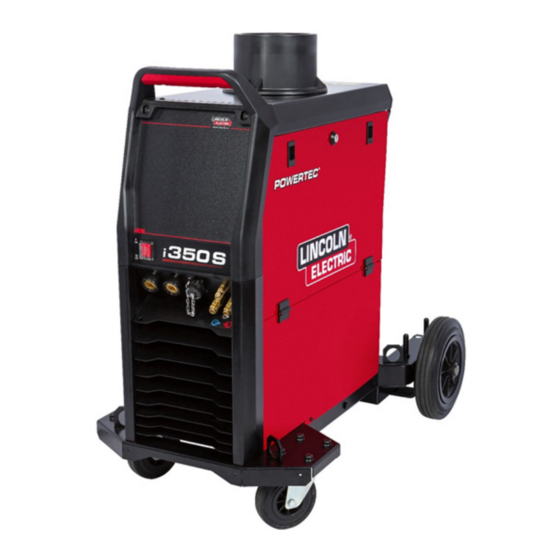

- Page 1 IM3103 11/2019 REV00 ® POWERTEC i350S, i420S, i500S OPERATOR’S MANUAL ENGLISH Lincoln Electric Bester Sp. z o.o. ul. Jana III Sobieskiego 19A, 58-263 Bielawa, Poland www.lincolnelectric.eu...
-
Page 2: Table Of Contents
12/05 THANKS! For having choosen the QUALITY of the Lincoln Electric products. Please Examine Package and Equipment for Damage. Claims for material damaged in shipment must be notified immediately to the dealer. For future reference record in the table below your equipment identification information. Model Name, Code &... -
Page 3: Technical Specifications
Technical Specifications NAME INDEX ® POWERTEC i350S K14183-1 ® POWERTEC i420S K14184-1 ® POWERTEC i500S K14185-1 INPUT Input Voltage U EMC Class Frequency i350S i420S 400V ± 15% 3-phase 50/60Hz i500S Input Power at Rated Cycle Input Amperes I 1max 15 kVA @ 50% Duty Cycle i350S 0,90... - Page 4 WELDING VOLTAGE REGULATION RANGE GMAW FCAW i350S 15V÷ 33,5V 15V÷ 33,5V i420S 15V ÷ 37V 15V ÷ 37V i500S 15V ÷ 41V 15V ÷ 41V RECOMMENDED INPUT CABLE AND FUSE SIZES Fuse Type: Time-Delay or Circuit Breaker Type D Power Lead 400V i350S 4 Conductor, 2,5mm...
-
Page 5: Electromagnetic Compatibility (Emc)
This machine has been designed to operate in an industrial area. The operator must install and operate this equipment as described in this manual. If any electromagnetic disturbances are detected the operator must put in place corrective actions to eliminate these disturbances with, if necessary, assistance from Lincoln Electric. WARNING Provided that the public low voltage system impedance at the point of common coupling is lower than: ... -
Page 6: Safety
Failure to follow the instructions in this manual could cause serious personal injury, loss of life, or damage to this equipment. Read and understand the following explanations of the warning symbols. Lincoln Electric is not responsible for damages caused by improper installation, improper care or abnormal operation. - Page 7 CYLINDER MAY EXPLODE IF DAMAGED: Use only compressed gas cylinders containing the correct shielding gas for the process used and properly operating regulators designed for the gas and pressure used. Always keep cylinders in an upright position securely chained to a fixed support. Do not move or transport gas cylinders with the protection cap removed.
-
Page 8: Intoduction
Intoduction ® ® POWERTEC i350S, i420S, i500S inverter sources POWERTEC i350S, i420S, i500S work with the water have to be connected with wire feeders LF52D and ® cooler COOL ARC LF56D. Signal from the power source will be displayed on wire feeders user interface. For communication, The complete packaging includes the following items: inverter source-wire feeder is usedCAN protocol. -
Page 9: Output Connections
Output Connections Refer to points [2], [3] and [4] of the figures below. Controls and Operational Features Figure 2. 8. Supply Plug: for gas heater kit (see “Accessories Suggested” chapter). 9. Power Lead (5m): Connect the supply plug to the Figure 1. -
Page 10: Machine And Circuit Protection
20. Fuse F1: Use the 2A/400V (6,3x32mm) low blow fuse ® POWERTEC i350S, i420S, i500S Welding Cables Connection Insert the plug of the work lead into the socket [2]. The other end of this lead connect to the work piece with the work clamp. - Page 11 We respond to our customers be lost. based on the best information in our possession at that time. Lincoln Electric is not in a position to warrant or Any noticeable damage should be reported immediately guarantee such advice, and assumes no liability, with and repaired.
-
Page 12: Weee
12/05 Part List reading instructions Do not use this part list for a machine if its code number is not listed. Contact the Lincoln Electric Service Department for any code number not listed. Use the illustration of assembly page and the table below to determine where the part is located for your particular code machine. -
Page 13: Accessories Suggested
Accessories Suggested GRD-400A-70-xM Ground cable 400A/70 mm²; x=5/10/15 m K14186-1 LF 52D K14187-1 LF 56D K14182-1 COOLARC-26 W000010167 FREEZCOOL 9,6L K14196-1 OUTPUT CONNECTION KIT (PTi350S) K14202-1 OUTPUT CONNECTION KIT (PTi420/500S) K14201-1 CABLE MANAGEMENT KIT K14208-1 WATER CONNECTION KIT K14176-1 GAS HEATER KIT (POWERTEC ®... -
Page 14: Connection Configuration
Connection configuration Figure 6 English English...
