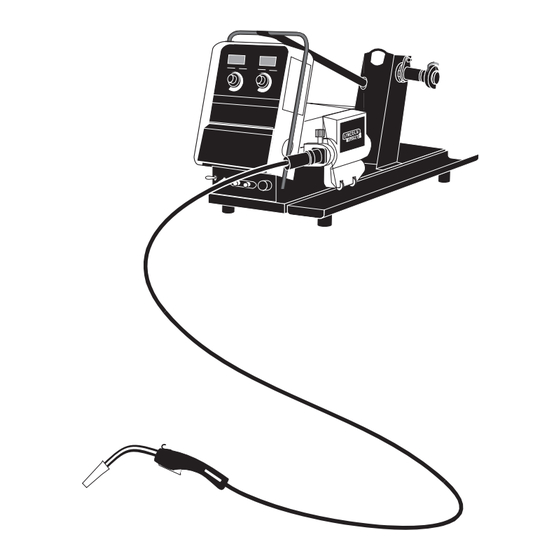

Wire drive & control box boom mount or bench model
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
RETURN TO MAIN MENU
IM584-D
Power Feed 10 Wire Drive & Control Box
August, 2007
Boom Mount or Bench Model
For use with: Power Feed 10 Control Box - Boom Mount Code 10436, 10615
Power Feed 10 Wire Drive - Boom Mount Code 10437,10616, 10782
Power Feed 10 Boom Package Code 10435, 10612 (Generic), 10493, 10613 (12' Zipline), 10494, 10614 (16' Zipline),
10779 (Generic), 10767, 10780 (12' Zipline), 10768, 10781 (16' Zipline)
Power Feed 10 Bench Model Code 10438, 10617, 10760,10783
Safety Depends on You
Lincoln arc welding and cutting
equipment is designed and built
with safety in mind. However, your
overall safety can be increased by
proper installation ... and thought-
ful operation on your part. DO
NOT INSTALL, OPERATE OR
REPAIR THIS EQUIPMENT
WITHOUT
READING
THIS
MANUAL AND THE SAFETY
PRECAUTIONS CONTAINED
THROUGHOUT. And, most
importantly, think before you act
and be careful.
OPERATOR'S MANUAL
Copyright © 2007 Lincoln Global Inc.
• World's Leader in Welding and Cutting Products •
• Sales and Service through Subsidiaries and Distributors Worldwide •
Cleveland, Ohio 44117-1199 U.S.A. TEL: 216.481.8100 FAX: 216.486.1751 WEB SITE: www.lincolnelectric.com
