Faucet mounted eyewashes

Advertisement

Valve Components
600-664R
A
Actuating Knob (pkg of 2)
600-628R
B
Inlet O-Ring (pkg of 2)
AP600-666
C
Valve Stem with O-Rings and Spring
AP600-665
D
Diverter with O-Rings
450-005
E
Outlet Aerator Assembly
Inlet Adaptors (included with unit)
AP400-009
(1) 15/16-27 Male Adapter with O-Ring,
(1) 13/16-27 Male Adapter with O-Ring,
(1) 3/8" IPS Male Adapter with O-Ring
Additional Adaptors (ordered separately)
AP400-012
(1) 13/16-24 Female Adapter with O-Ring
AP400-015
(1) 3/4" Female Hose Adapter with O-Ring
G1100 Components
250-046R
A
Dust Cover with Strap (pkg of 2)
AP450-110R
B
Aerator Assembly (pkg of 2)
G1101 Components
250-046R
A
Dust Cover with Strap (pkg of 2)
AP450-110R
B
Aerator Assembly (pkg of 2)
Guardian Equipment
312 447 8100
1140 N. North Branch
312 447 8101
Chicago, IL 60642
gesafety.com
telephone
facsimile
G1100/G1101 EyeSafe™ Faucet Mounted Eyewashes
A
E
A
B

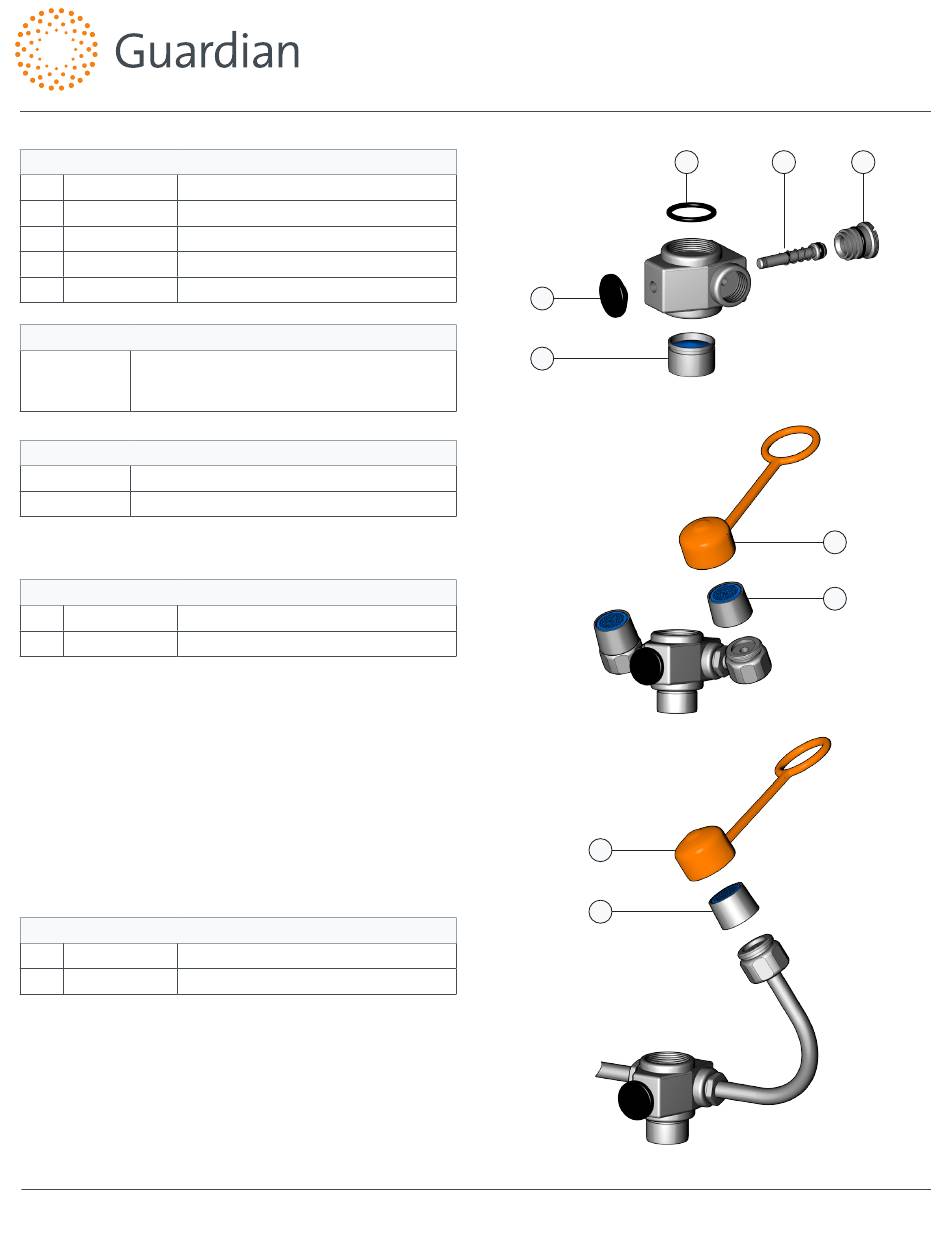

Parts List

B
C
D
A
B
rev. 0313 / © 2013 Guardian Equipment
