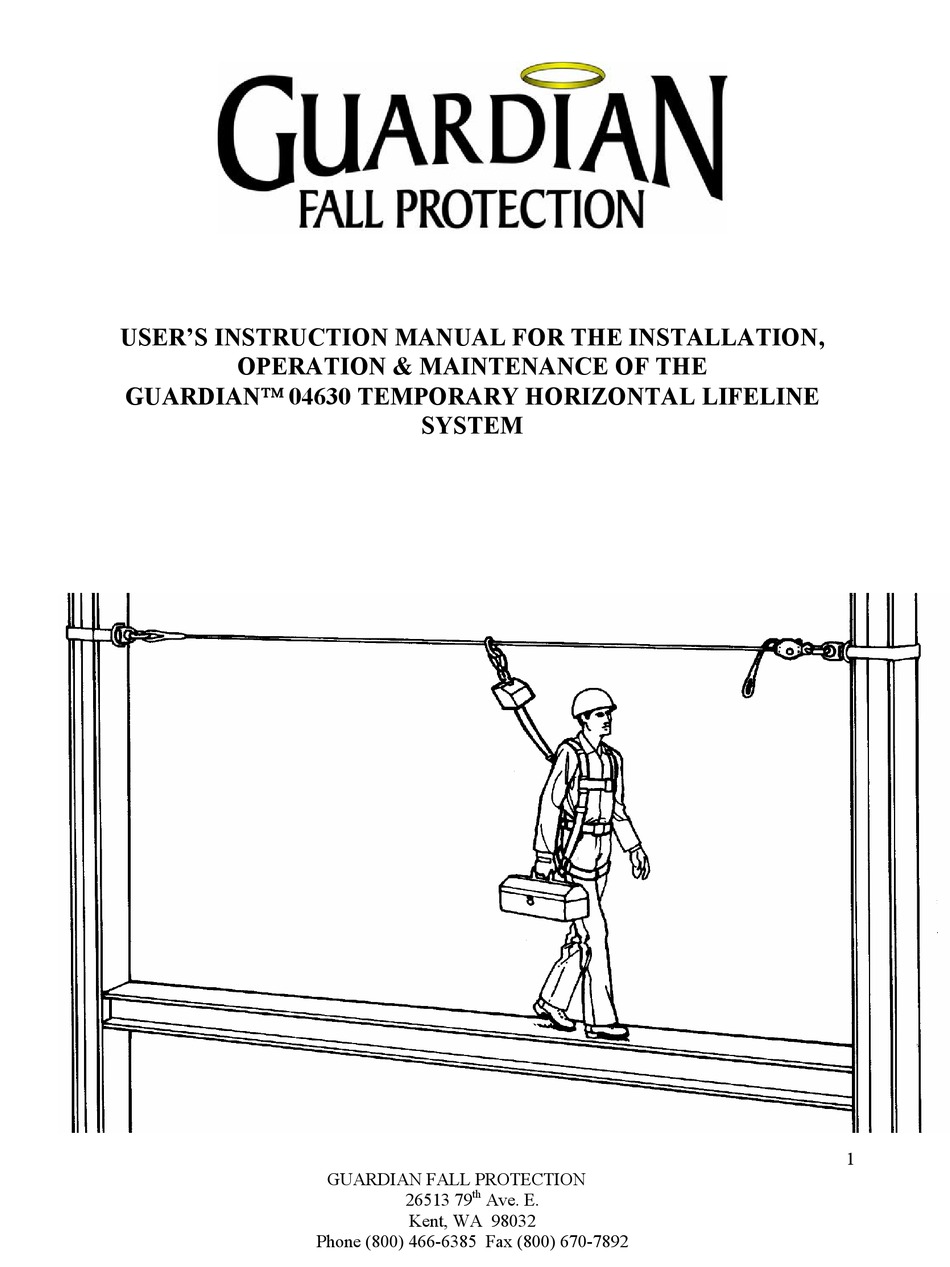

- Page 1 USER’S INSTRUCTION MANUAL FOR THE INSTALLATION, OPERATION & MAINTENANCE OF THE GUARDIAN 04630 TEMPORARY HORIZONTAL LIFELINE SYSTEM GUARDIAN FALL PROTECTION 26513 79 Ave. E. Kent, WA 98032 Phone (800) 466-6385 Fax (800) 670-7892...
- Page 2 WARNING This is a design compatible component for a comprehensive Guardian™ Personal Fall Arrest or Fall Restraint System. Each component includes an instruction manual. These instructions must be provided to the user of this equipment prior to use. AS A USER, YOU MUST READ, UNDERSTAND AND FOLLOW THE MANUFACTURER’S...
-
Page 3: Product Description And Applications
Temporary Horizontal Lifeline System attaches to stationary anchorage points, I Beam Clamps, Pipe Rack Stanchion Systems or Steel I-Beam Post Systems. This system has been designed and tested to be used with Guardian™ Personal Fall Arrest Equipment (PFAS) only. It has been designed for personal fall arrest use only. It is not intended for other applications. -
Page 4: Product Specifications
Inside Diameter 3” Outside Diameter 3-3/4” Material of Construction Drop forged alloy steel. Min. Tensile Strength 5,000 lbs. Proof Loaded 100% up to 3,600 lbs. GUARDIAN FALL PROTECTION 26513 79 Ave. E. Kent, WA 98032 Phone (800) 466-6385 Fax (800) 670-7892... -
Page 5: System Requirements
3.0 SYSTEM REQUIREMENTS Personal Fall Arrest System Components The Guardian™ Horizontal Lifeline System has been designed to be used with approved Guardian™ components and sub-systems only. Non-approved components and sub- systems may be incompatible and could affect the overall system. These components must meet all applicable OSHA and ANSI standards. - Page 6 Clearance – There must be sufficient clearance beneath the structure to ensure that workers do not contact an obstruction below. See chart on following page. Contact your Guardian™ representative for additional information. Swing Falls – It is important to work as close as possible under the horizontal lifeline to minimize swing fall hazards.
- Page 7 Required Clearance from Working Surface to Next Obstruction with Guardian 6’ Shock Absorbing Lanyard with One (1) or Two (2) Workers on Line Required Clearance Below Working Required Clearance Below Working Span Distance (in feet) Level for One (1) Worker (in feet)
-
Page 8: Important Do's And Don'ts
Visually inspect it to ensure a proper attachment. Call Guardian™ at (800) 466-6385 if the Use this system if you are pregnant, a device is damaged or does not function minor, or have reduced tolerance to fall... -
Page 9: Fall Protection Plan
4. Swing Falls: If a worker is not directly under an anchorage point, a swing fall may result. To minimize this hazard, evaluate the entire situation, and plan accordingly for a safe clearance distance, or consider a horizontal lifeline. Contact Guardian for assistance. - Page 10 6.0 OPERATION AND INSTALLATION OF 04630, HLL100 TEMPORARY HORIZONTAL LIFELINE SYSTEM One complete temporary horizontal lifeline system includes the following components: Part Description Number 01620 6 ft. Anchor Slings Self-locking carabiners Horizontal lifeline tensioning device 1 5/8” Rope Lifeline 100’...
-
Page 11: Maintenance And Storage
This system and all components must be withdrawn from service if subjected to fall arresting forces. Only original Guardian™ Replacement parts are approved for use in this device. Contact your Guardian™ distributor or Guardian™... - Page 12 8.0 INSPECTION Inspection procedures for in field visual inspection: 1. The Guardian™ Systems shall be inspected by the user before each use and additionally by a Competent Person other than the user at intervals of no less than twice a year. If equipment is in a very harsh and/or corrosive environment, additional inspections may be necessary.
-
Page 13: Inspection Log
Manufacturer: __________________________ Model No: _____________________________ Mfg. Date: ____________________________ Part Inspection Inspector Comments Pass/Fail Corrective Approved Date Action Taken Anchor Slings Self-locking Carabiner Tensioner Lifeline O-Rings GUARDIAN FALL PROTECTION 26513 79 Ave. E. Kent, WA 98032 Phone (800) 466-6385 Fax (800) 670-7892...
