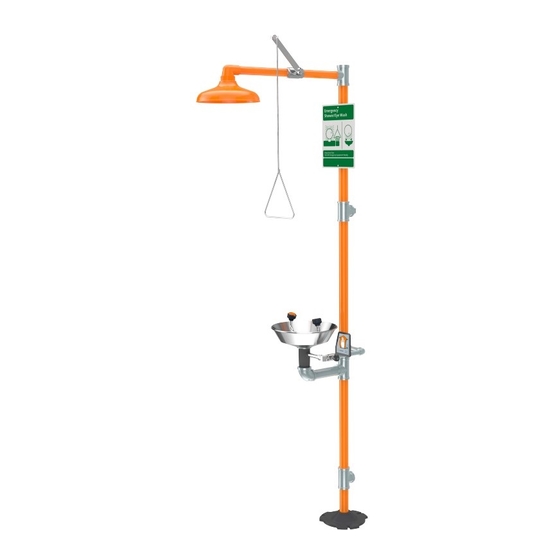

G1902
F

Application:

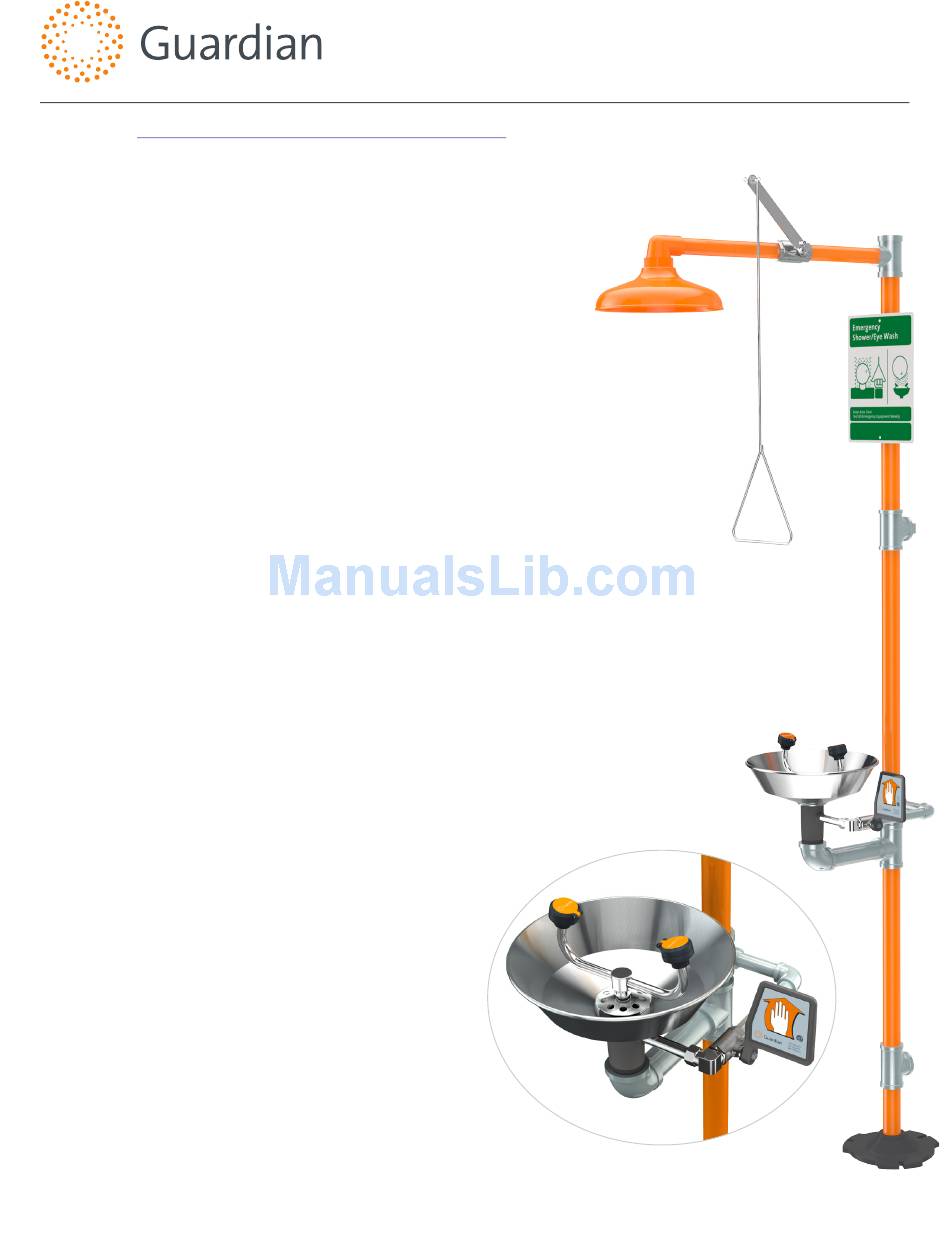

Combination eyewash and shower safety
station. Two GS-Plus™ spray-type outlet heads deliver a flood
of water for rinsing eyes.

Shower Head:

10" diameter orange ABS plastic.

Shower Valve:

1" IPS chrome plated brass stay-open ball valve.
Valve is US-made with chrome plated brass ball and Teflon®
seals. Furnished with stainless steel actuating arm and 29"
stainless steel pull rod.
Spray Head Assembly:
Two GS-Plus™ spray heads. Each head
has a "flip top" dust cover, internal flow control and filter to
remove impurities from water.
Eyewash Bowl:
11-1/2" stainless steel.
Eyewash Valve:
1/2" IPS chrome plated brass stay-open
ball valve. Valve is US-made with chrome plated brass ball and
Teflon® seals.
Pipe and Fittings:
Schedule 40 galvanized steel. Furnished
with orange polyethylene covers for vertical piping for high
visibility and corrosion resistance.
Supply:
1-1/4" NPT female top or side inlet.
Waste:
1-1/4" NPT female outlet. Outlet can be positioned at
either 9-1/4" or 19-5/8" above finished floor by reversing lower
pipe nipples.
Sign:
Furnished with ANSI-compliant identification sign.
Quality Assurance:
Valve and spray head assemblies are
factory assembled and water tested prior to shipment.

Available Options

GC
Powder coated finish on galvanized Pipe and Fittings:.
F
Available colors include orange, yellow, red and green.
FC20
Regulates shower flow rate to 20 GPM.
F
GRN
Green ABS plastic shower head.
F
YEL
Yellow ABS plastic shower head.
F
SSH
Stainless steel shower head.
F
AP275-100 Electric Light and Alarm Horn
F
Light and alarm horn summon assistance when eyewash
or shower is activated.
AP250-015 Modesty Curtain
F
Modesty curtain for mounting on safety station.
TMV
G3800LF thermostatic mixing valve precisely blends
F
hot and cold water to deliver warm (tepid) water as
required by ANSI Z358.1-2014.
