Summary of Contents for Guardian MK Edge SRL

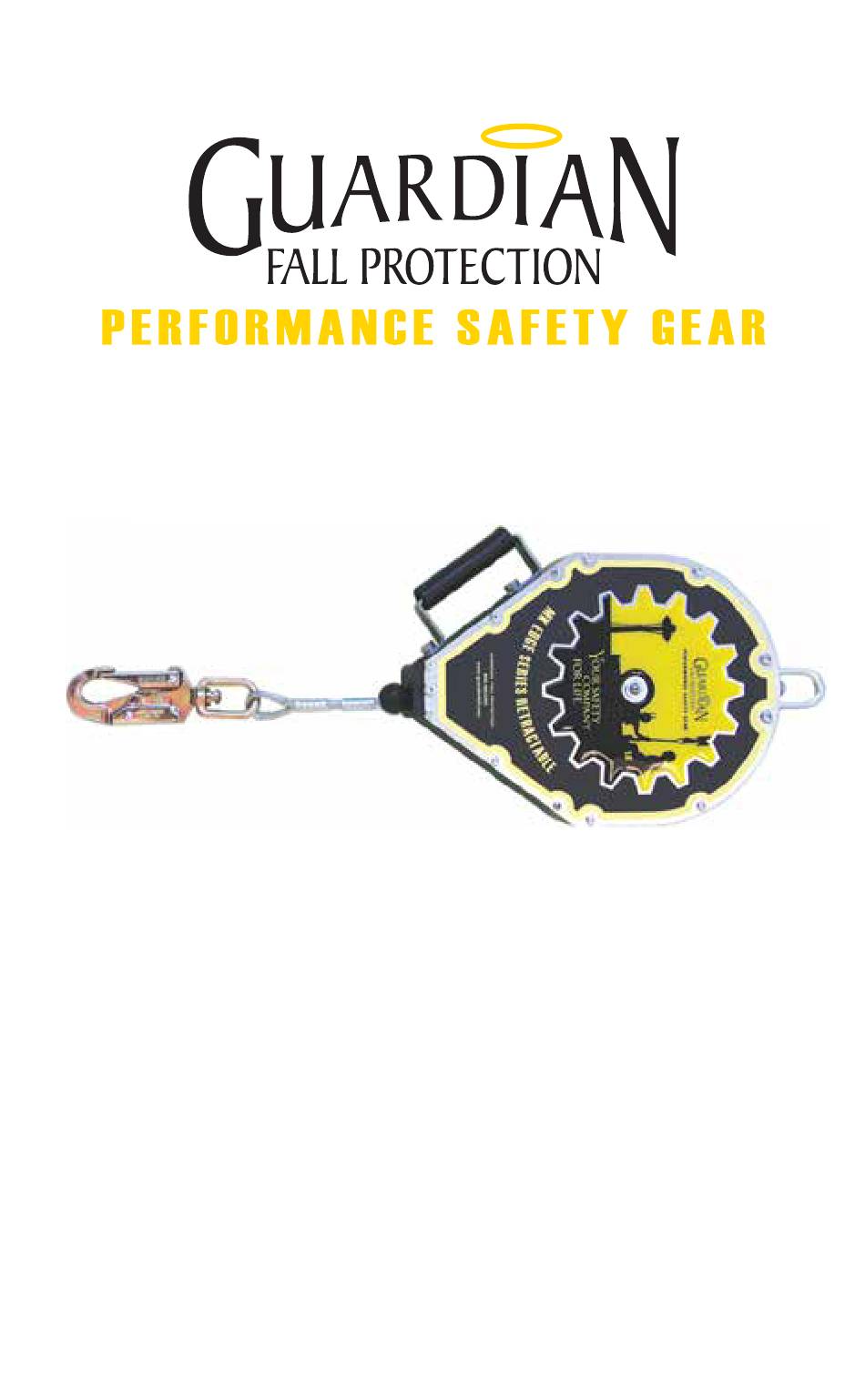

- Page 1 Product Name: MK Edge SRL Part #: 10917; 10918; 10937; 10938 Instruction Manual Do not throw away these instructions! Read and understand these instructions before using equipment!
-
Page 3: Table Of Contents
This and any other included instructions must be made available to the user of the equipment. The user must understand how to safely and effectively use the MK Edge SRL, and all fall safety equipment used in combination with the MK Edge SRL. -
Page 4: Applicable Safety Standards
User Information Date of First Use: Serial #: Trainer: User: Applicable Safety Standards When used according to instruction specifications, this product meets or exceeds all applicable OSHA 1926 Subpart M, OSHA 1910, ANSI Z359.1-2007, and ANSI A10.32-2012 standards for fall protection. -
Page 5: Safety Information
Safety Information Failure to understand and comply with safety regulations may result in serious injury or death. Regulations included herein are not all-inclusive, WARNING are for reference only, and are not intended to replace a Competent Person’s judgment or knowledge of federal or state standards. Do not alter equipment. - Page 6 Equipment that fails inspection in any way must immediately be removed from use, or repaired by an entity approved by the manufacturer. No on-site repair of equipment unless explicitly permitted by Guardian Fall Protection. Equipment subjected to forces of fall arrest must immediately be removed from use.
-
Page 7: Maintenance, Cleaning, And Storage
Remove all dirt, corrosives, and contaminants from MK Edge SRL before and after each use. If MK Edge SRL cannot be cleaned with plain water, use mild soap and water, then rinse and wipe dry. NEVER clean MK Edge SRL with corrosive substances. -
Page 8: Product Specific Applications
WARNING injury or death. Maximum 1 attachment per connection point. Personal Fall Arrest: MK Edge SRL may be used to support a MAXIMUM 1 Personal Fall Arrest System (PFAS) for use in Fall Arrest applications. Structure must withstand loads applied in the directions permitted by the system of at least 5,000 lbs. -
Page 9: Limitations
Limitations Fall Clearance: There must be sufficient clearance below the anchorage connector to arrest a fall before the user strikes the ground or an obstruction. When calculating fall clearance, account for a MINIMUM 3’ safety factor, deceleration distance, user height, length of lanyard/SRL, and all other applicable factors. - Page 10 All connections must be selected and deemed compatible with MK Edge SRL by a Competent Person. All connector gates must be self-closing and self-locking, and withstand minimum loads of 3,600 lbs. See the following for examples of...
- Page 11 Correct Anchorage Positioning: This chart details allowable working zones required to reduce risk of swing falls and improper side loading. ALWAYS adhere to information specified by chart. Anchor Distance Working Distance Working Angle From Along Roof Edge From Leading Edge (Y) (Either Direction) (X) Perpendicular (Ø) 6’...
-
Page 12: Components And Specifications
Components and Specifications Materials: stainless steel, brass, and aluminum. Part # Size Description 10917 50’ 3/16” MK Galvanized Cable SRL w/Swivel Top & High Strength Snap Hook 10918 65’ 3/16” MK Galvanized Cable SRL w/Swivel Top & High Strength Snap Hook 10937 50’... -
Page 13: Installation And Use
MK Edge SRL by a Competent Person. 2. Ensure structure to which MK Edge SRL is to be attached, and on which work is to be performed, is free of all hazards, including, but not limited to, debris, rot, rust, sharp or abrasive edges and surfaces, and hazardous materials. -
Page 14: Labels
*For capacities between 311-420 lbs., or use over a leading properly before use. This unit is for use by trained persons edge, user MUST attach a Guardian 01205 shock only. See user manual for more details. absorbing lanyard to the snap hook of this unit. The... -
Page 15: Inspection Log
Date of First Use: __________________. Product lifetime is indefinite, as long as it passes pre-use and Competent Person inspections. This inspection log must be specific to one MK Edge SRL. Separate inspection logs must be used for each MK Edge SRL. All inspection records must be made visible and available to all users at all times.
