Figure 1-8. External Shelf Clock And Emu-830 List 6A Backup Circuit - ADC WorldDSL EMU-830 User Manual

September 25, 2006
E S C
XTERNAL HELF
The EMU-830 List 6A includes a backup circuit for the 2.048 MHz external shelf clock. This circuit will continue to
provide a 2.048 MHz clock to the DSL cards in the event the 2.048 MHz external shelf clock is lost. The software
reports the status of this circuit and allows the user to set the severity of the alarm generated when the clock is lost.
A block diagram of the clock backup circuit is shown in
Under normal operation the external shelf clock and the backup circuit synchronize their respective clocks through
the EMUs phase-locked loop (PLL) device. In the event the external shelf clock is lost, the oscillator in the backup
circuit will continue to supply the 2.048 MHz clock. A Loss of External Clock alarm is reported to the management
station.
EMS-83x Shelf

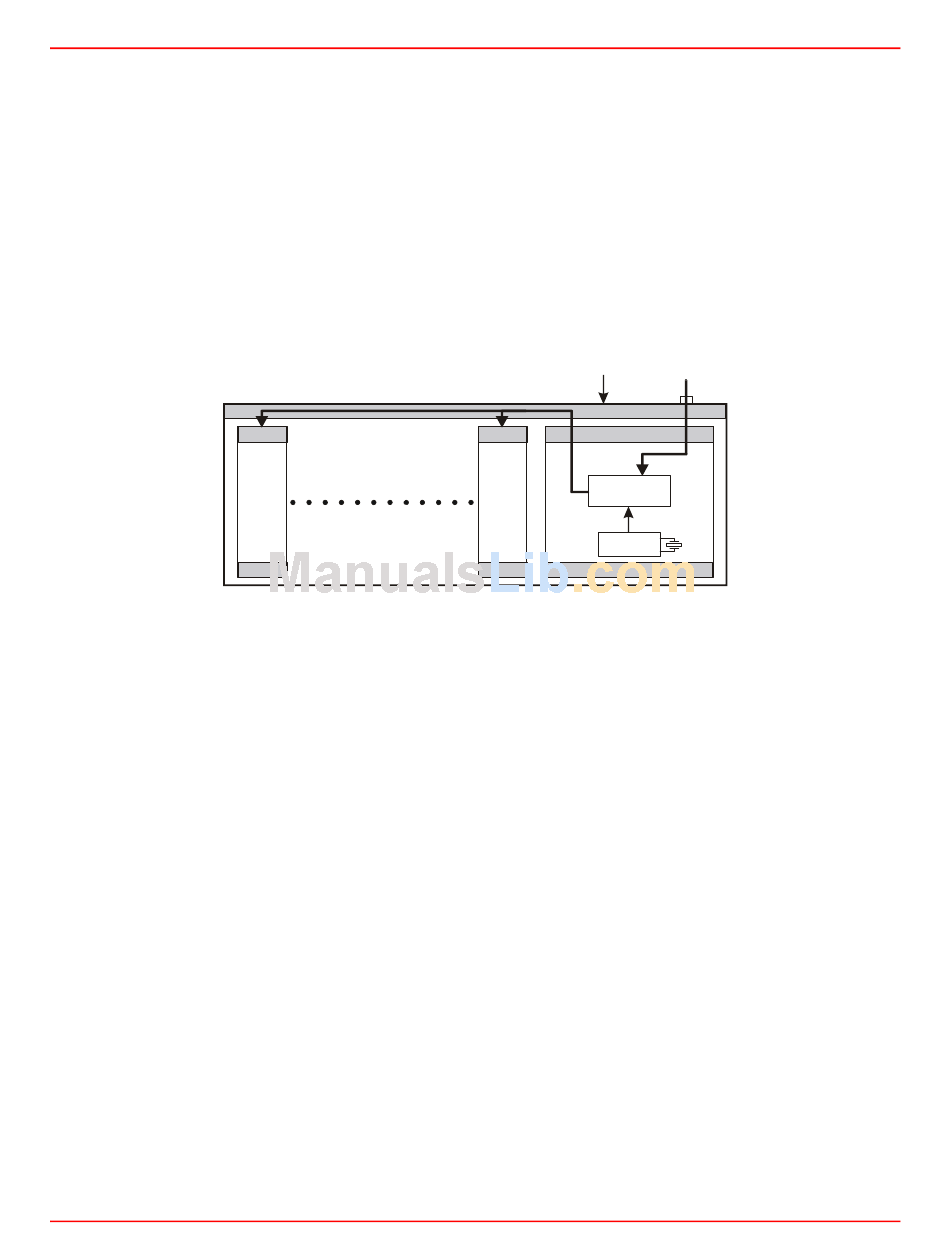

Figure 1-8. External Shelf Clock and EMU-830 List 6A Backup Circuit

LTPE-UM-3159-02
B C
LOCK ACKUP IRCUIT
Slot 1
LTU/STU-C
Figure 1-8 on page 1-11.
Backplane
Slot 16 Slot 17
PLL
Oscillator
EMU-830 List 6
LTU/STU-C
Chapter 1: Overview
External
Clock
input
Reference
2.048 MHz
Source
1-11
