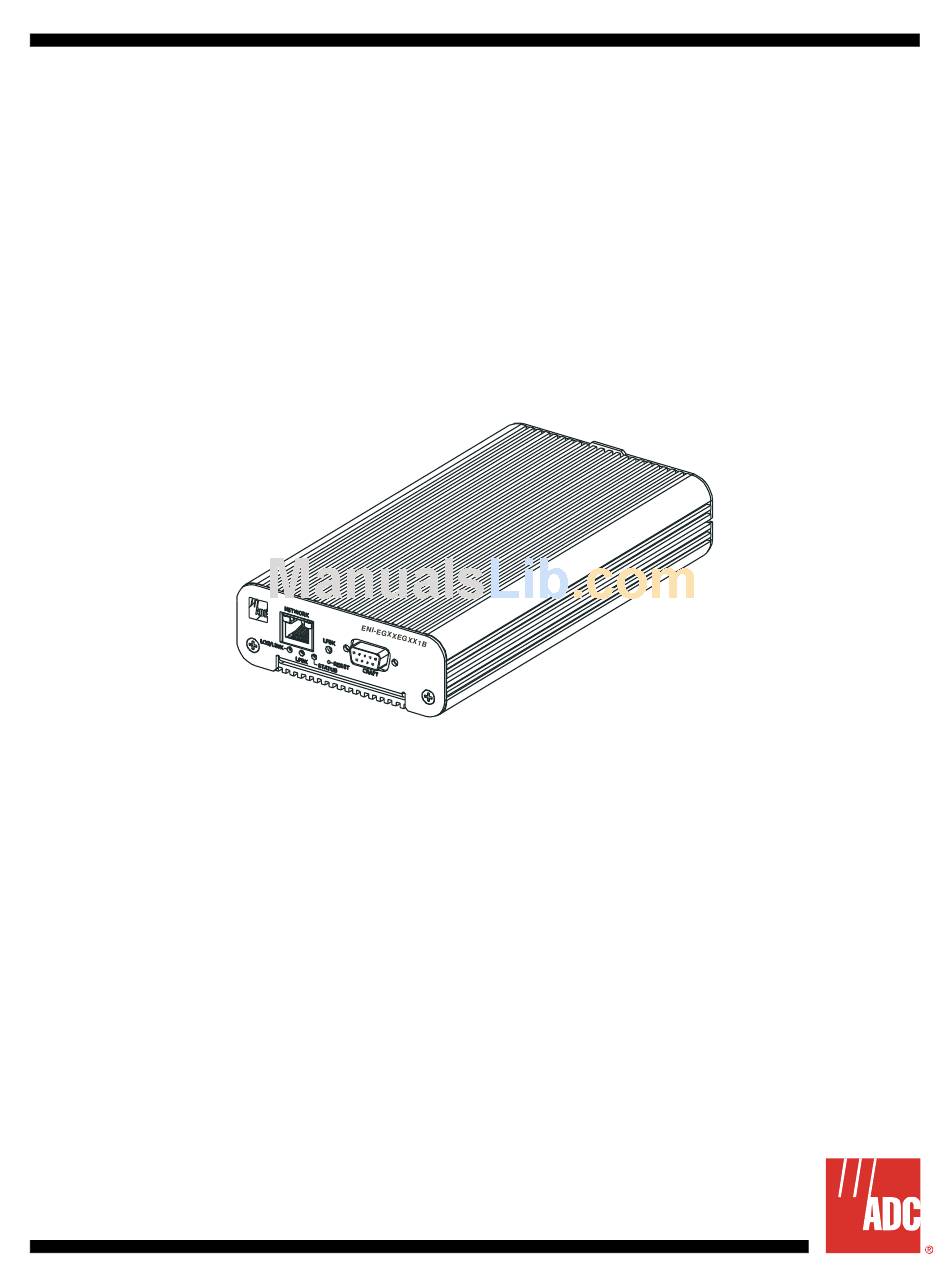

Page 1: User Manual
Ethernet Network Interface Unit (ENIU) User Manual 20383-A1 Product Catalog: ENI-EGXXEGXX1B Document Number: AIWN-UM-7001-01 CLEI: IPUIAY5F~~... - Page 2 Contents herein are current as of the date of publication. ADC reserves the right to change the contents without prior notice. In no event shall ADC be liable for any damages resulting from loss of data, loss of use, or loss of profits, and ADC further disclaims any and all liability for indirect, incidental, special, consequential or other similar damages.
-
Page 3: Table Of Contents
Chapter 1: Overview ... 1-1 Product Description ... 1-1 Front Panel ... 1-2 Chapter 2: Installation ... 2-1 Desktop Installation ... 2-1 Surface Mount Installation ... 2-1 Power and Ground Connections ... 2-2 Ground Connection ... 2-2 Power Connection ... 2-3 Cabling ... - Page 4 Table of Contents August 7, 2006 AIWN-UM-7001-01...
- Page 5 List of Figures Figure 1-1. ENIU with SFPs ... 1-1 Figure 1-2. ENIU Front View ... 1-2 Figure 2-1. Inserting ENIU into Mounting Bracket ... 2-2 Figure 2-2. ENIU Rear View with RJ-45 Connector ... 2-3 Figure 2-3. Four-Pin Power Plug Wiring Diagram ... 2-3 Figure 2-4.
- Page 6 List of Figures August 7, 2006 AIWN-UM-7001-01...
- Page 7 List of Tables Table 1-1. ENIU LED Indicators and Controls ... 1-2 Table 2-1. 10/100 Mbps Ethernet RJ-45 Connector ... 2-5 Table 2-2. 1000BaseT Ethernet RJ-45 Connector ... 2-5 Table 2-3. EIA-232 DCE Control Connector (Female 9-Pin D-Sub) ... 2-6 Table 2-4.
- Page 8 List of Tables August 7, 2006 viii AIWN-UM-7001-01...
- Page 9 BOUT ANUAL NTRODUCTION This manual applies to ADC’s Ethernet Network Interface Unit (ENIU) card (hereafter referred to as the “ENIU”). RGANIZATION This manual includes the following chapters: Chapter Chapter 1: Overview Chapter 2: Installation Chapter 3: Command-Line Interface (CLI) Appendix A: Specifications...
- Page 10 • Unpack each container and visually inspect the contents for signs of damage. If the equipment has been dam- aged in transit, immediately report the extent of damage to the transportation company and to ADC. Order replacement equipment, if necessary.
-
Page 11: Chapter 1: Overview
VERVIEW RODUCT ESCRIPTION Delivering a comprehensive set of Ethernet services requires an intelligent Ethernet network interface unit (ENIU) to serve as the service demarcation point at the edge of the customer's network. A critical component of a carrier-class Ethernet access system, the ENIU defines the edge of the carrier's management domain. Once in place, the ENIU serves an important function by collecting local performance and error data on both the access loop and the customer's network. -
Page 12: Front Panel
Chapter 1: Overview RONT ANEL Each ENIU has three LEDs, a STATUS LED, a LPBK LED, and a LOS/LINK LED. Under normal operation the ENIU STATUS LED is green. Front panel indicators and controls are defined in Figure 1-2. SIGNAL STATUS GREEN LPBK... -
Page 13: Chapter 2: Installation
NSTALLATION When using the mounting bracket, allow six inches (15.3 cm) on both ends of the ENIU for cable access. Install the ENIU using the following procedures. ESKTOP NSTALLATION Step Remove the protective adhesive backing from the four feet. Position a foot on each bottom corner of the ENIU. -
Page 14: Power And Ground Connections
Chapter 2: Installation Step Connect the power supply to the DC IN connector located on the back of the ENIU. – If using AC power, connect power supply to the AC source (110 – 240 VAC, 50 – 60 Hz). –... -
Page 15: Power Connection
August 7, 2006 Step Using AWG 16 (1.25mm) solid copper wire, connect one end of the ground wire to the ground stud at the back of the ENIU (shown in Newton meters) of torque. To assure proper operation, the ground stud must be connected to a good earth ground. Connect the other end of the ground wire to the office ground conductor. -
Page 16: Cabling
Chapter 2: Installation ABLING RJ-45 cable connections are made to both the front and rear of the ENIU. DB-9 (command line interface) connection is made on the front and the power connection is made on the rear. A rear view of the ENIU is shown in on page 2-3. -
Page 17: Optical Cables
August 7, 2006 Table 2-1. 10/100 Mbps Ethernet RJ-45 Connector Pin # Signal Name Table 2-2. 1000BaseT Ethernet RJ-45 Connector Pin # Signal Name BD1+ BD2+ BD3– BD4+ Optical Cables The maximum cable length is the cable length that the signal can travel without suffering from critical attenuation (degradation). -
Page 18: Db-9 Communications Cable
Chapter 2: Installation DB-9 Communications Cable An RS-232 Craft port is provided through a DB-9 connector. Refer to your work order to determine the required communications connections. After determining the required connections, make the necessary connection. Shielded cable is recommended and the maximum cable length is 50 feet. A 1:1 cable is required to connect this port to the male DTE com port of a PC. -
Page 19: Command Prompt
OMMAND NTERFACE This section lists the commands used to operate the ENIU. After the initial installation of an ENIU, most testing and local operations are conducted with the Command Line Interface through a VT-100 compatible terminal. This terminal is connected to the front panel of the ENIU, and provides a standard EIA-232C interface. Note: Command keywords are not case-sensitive. -
Page 20: Commands Overview
There is also a default user that is always present to provide RO access to the system. Note: The default username is adc with a password of eniu. If no users are defined, the system will allow full SECURE access from the Craft port, but once a configured user is defined, you must log in with that user or the default user to access the system. -
Page 21: Configuration
August 7, 2006 Configuration Get Configuration Purpose: Show the current configured parameters. Command:[all privileges] GET CONFIGURATION Interface Speed and Negotiation Purpose: Configure speed and negotiation mechanism for the NETWORK and SUBSCRIBER interfaces. Command:[RW, SECURE privilege] SET [NETWORK|SUBSCRIBER] INTERFACE SPEED 10|100|1000 [AUTO|FORCE] Note: NETWORK or SUBSCRIBER is optional and is specified to identify a specific interface. - Page 22 Chapter 3: Provisioning August 7, 2006 Configure Keep Alive Purpose: Configure “keep alive” mode. When on, the ENIU will not generate an alarm event if the subscriber interface loses link. This allows the network side to remain unencumbered by interfaces changes that may occur on the subscriber port from random changes in the subscribers network.
-
Page 23: Oam Configuration
August 7, 2006 Craft Port Configuration Purpose: Configure user interaction with the command line interpreter. Note: The Craft port interface has fixed communications settings of 115200 baud, 8 bits, 1 stop bit, no parity, and no flow control. Command:[RW, SECURE privilege] SET IDLE TIMEOUT <minutes>... - Page 24 Configure OAM to interoperate with EXFO test equipment in a VLAN environment. Note: In addition to configuring OAM extensions, this command also changes the MAC address from which OAM messages will be accepted from the slow protocols address to an ADC unique multicast address of 01:80:51:00:00:00. Command:[RW, SECURE privilege]...
-
Page 25: Performance And Alarms
August 7, 2006 User and Privilege Settings Purpose: Defines users to the system. Command: [SECURE privilege] SET USER <name> RO|RW|SECURE <password> CLEAR USER <name> User name and passwords are specified as 1 to 15 alphanumeric characters. Status Command: [SECURE privileges] GET USERS Performance and Alarms Configure Alarm Thresholds... -
Page 26: System Commands
Chapter 3: Provisioning August 7, 2006 Configure Optical Thresholds Purpose: On ENIUs that have optical interfaces, these commands configure the alarm thresholds associated with the power levels of the optical connections. Command: [RW, SECURE privilege] SET [NETWORK|SUBSCRIBER] OPTICAL RECEIVE THRESHOLD OMA|AVERAGE threshold SET [NETWORK|SUBSCRIBER] OPTICAL TRANSMIT THRESHOLD OMA|AVERAGE threshold The threshold value is specified in milliwatts. - Page 27 Log off of a command line session. Command: [all privileges] EXIT Inventory Purpose: Shows hardware and firmware versions as well as ADC catalog and part numbers. Command: [all privileges] GET INVENTORY LED test Purpose: Perform an LED test for the front panel LEDs.
- Page 28 Chapter 3: Provisioning August 7, 2006 3-10 AIWN-UM-7001-01...
-
Page 29: Appendix A: Specifications
PECIFICATIONS Specifications for the ENIU are listed in PARAMETER Power Voltage –48VDC, or 110 to 240VAC (50–60 Hz) Operating Voltage +5 VDC Input Current 0.25 A maximum Fuse Size 1.0 Amps Environmental Operating Conditions Storage Conditions Mechanical Dimensions D x W x H 1.55 in. - Page 30 Appendix A: Specifications August 7, 2006 AIWN-UM-7001-01...
-
Page 31: Appendix B: Product Support
UPPORT ADC Customer Service Group provides expert pre-sales support and training for all of its products. Technical support is available 24 hours a day, 7 days a week by contacting the ADC Technical Assistance Center. Sales Assistance: 800.366.3891 Systems Integration: 800.366.3891 ADC Technical Assistance Center: 800.366.3891... - Page 32 Appendix B: Product Support August 7, 2006 AIWN-UM-7001-01...
-
Page 33: Glossary
LOSSARY ALM – Alarm AWG – American Wire Gauge CLI – Command Line Interface CO – Central Office CPE – Customer Premise Equipment ENIU – Ethernet Network Interface Unit FCC – Federal Communications Commission GND – Ground LEC – Local Exchange Carrier LED –... - Page 34 Glossary August 7, 2006 GL-2 AIWN-UM-7001-01...
- Page 35 The FCC requires the user to be notified that any changes or modifications made to this device that are not expressly approved by ADC voids the user’s warranty. All wiring external to the products should follow the provisions of the current edition of the National Electrical Code.
- Page 36 World Headquarters ADC Telecommunications, Inc. PO Box 1101 Minneapolis, MN 55440-1101 USA For Technical Assistance Tel: 800.366.3891 Ethernet Network Interface Unit (ENIU) User Manual Product Catalog: ENI-EGXXEGXX1B Document Number: AIWN-UM-7001-01 ´-R<¶6{¨ 1350286...
