Anderic RRAV498 Operating Manual

Anderic® RRAV498 Operating
Manual

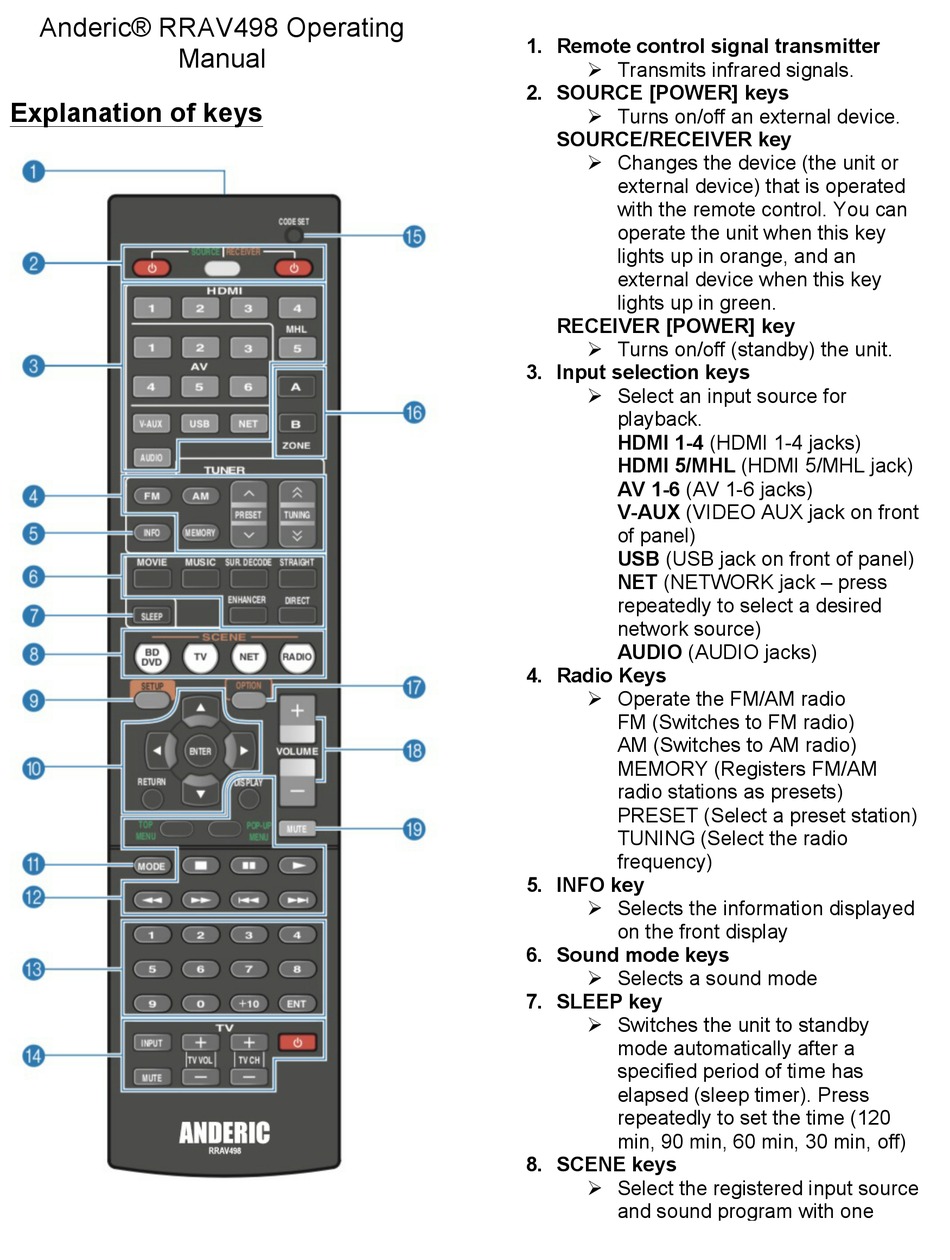

Explanation of keys
1. Remote control signal transmitter
Ø Transmits infrared signals.
2. SOURCE [POWER] keys
Ø Turns on/off an external device.
SOURCE/RECEIVER key
Ø Changes the device (the unit or
external device) that is operated
with the remote control. You can
operate the unit when this key
lights up in orange, and an
external device when this key
lights up in green.
RECEIVER [POWER] key
Ø Turns on/off (standby) the unit.
3. Input selection keys
Ø Select an input source for
playback.
HDMI 1-4 (HDMI 1-4 jacks)
HDMI 5/MHL (HDMI 5/MHL jack)
AV 1-6 (AV 1-6 jacks)
V-AUX (VIDEO AUX jack on front
of panel)
USB (USB jack on front of panel)
NET (NETWORK jack – press
repeatedly to select a desired
network source)
AUDIO (AUDIO jacks)
4. Radio Keys
Ø Operate the FM/AM radio
FM (Switches to FM radio)
AM (Switches to AM radio)
MEMORY (Registers FM/AM
radio stations as presets)
PRESET (Select a preset station)
TUNING (Select the radio
frequency)
5. INFO key
Ø Selects the information displayed
on the front display
6. Sound mode keys
Ø Selects a sound mode
7. SLEEP key
Ø Switches the unit to standby
mode automatically after a
specified period of time has
elapsed (sleep timer). Press
repeatedly to set the time (120
min, 90 min, 60 min, 30 min, off)
8. SCENE keys
Ø Select the registered input source
and sound program with one
