ANDERIC
Master Instruction Manual

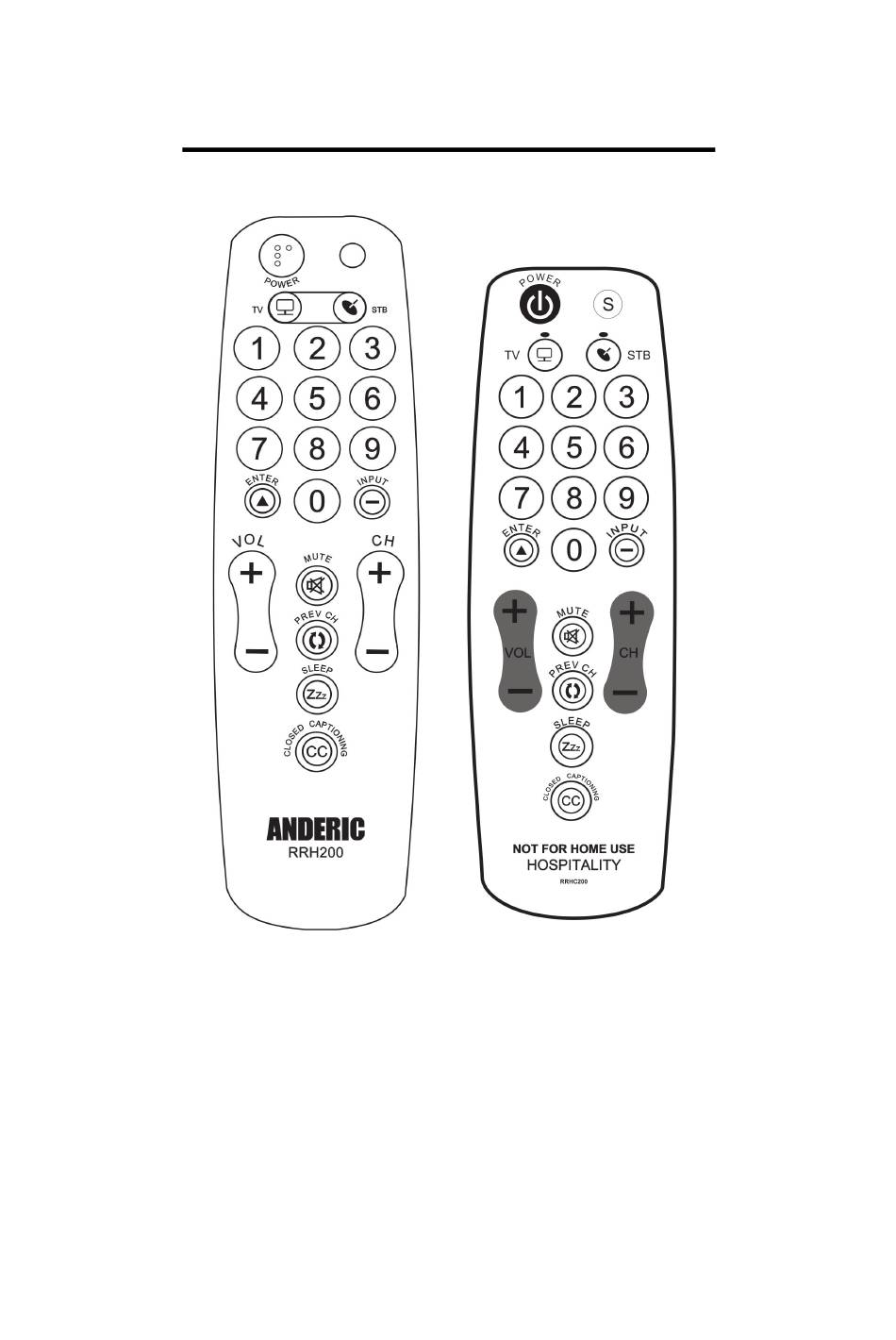

Applicable for models: RRH100, RRH200, RRHC100, RRHC200
Introduction
We want to thank you for purchasing this Universal Hospitality remote by Anderic®. With the
purchase of this remote you should receive a screw for the battery cover. Battery cover screw
is optional; battery cover does not need screw to hold it in place. This remote requires two
AAA size batteries, not included.
Optional Security Cable Attachment
Optional Security Cable available from anderic.com, Part number: CBL01. This cable easily
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Anderic RRH100
Summary of Contents for Anderic RRH100
- Page 1 Applicable for models: RRH100, RRH200, RRHC100, RRHC200 Introduction We want to thank you for purchasing this Universal Hospitality remote by Anderic®. With the purchase of this remote you should receive a screw for the battery cover. Battery cover screw is optional; battery cover does not need screw to hold it in place. This remote requires two AAA size batteries, not included.
- Page 2 adheres under the battery cover for a secure and flush appearance. Pre-programmed Codes This remote is pre-programmed by default to LG and VIZIO TVs under TV mode and DirecTv under STB Mode (Set-Top-Box). If the TV or STB is not one of the brands above, you must program the remote using the directions below: NOTE: If [S] key is not present on your remote, note that it is the unmarked button to the right of the [POWER] key.
- Page 3 3. Press and hold [S] and [ENTER] keys simultaneously for about three seconds until indicator light lights and remains on, release both keys. 4. Repeatedly Press [CH+] to search forwards or [CH-] to search backwards; remote will send the code of POWER one by one. 5.
- Page 4 Single Press Combined POWER Key About: This allows for powering on/off both your TV and STB (Set-top-box) with one press of the [POWER] button. If enabled, pressing [POWER] key will send code for power for both units. If disabled, pressing [POWER] key will only send code for TV.
- Page 5 TV Punch-Through Function About: When enabled, this feature allows assigning all TV related keys to always send codes programmed under TV mode, no matter what mode the remote currently resides. This feature has been enabled by default. Keys affected are Power, VOL+, VOL-, Mute, Input and Sleep. Follow steps below to enable or disable this feature.
- Page 6 Individually Assign Punch-through Unlock 1. Press and hold [S] and [ENTER] keys simultaneously for about three seconds until indicator light lights and remains on, release both keys. 2. Input the three digits [9] [0] [0], 3. Press the button you want to unlock the punch-through, the LED will blink one time & turn off. Device Mode Lock About: This is used to lock the code for the device so they cannot be re-programmed.
- Page 7 2. Input code [9] [7] [6] [2]. Indicator light will blink 3 times, indicating that the remote has successfully been reset to factory default status and converted to a 2-Device remote. LEGAL: Anderic® is a registered trademark of Dan’s Electronics Etc., Inc. All rights reserved. This document is copyrighted.
- Page 8 TV CODES Note: These codes can only be programmed under TV mode. Admiral 1917 1927 Advent 1933 Akai 1930 1939 1999 2025 1964 1985 2029 2032 2073 Apex Digital 1931 1934 1952 2065 Audiovox 1926 1937 2011 2012 2021 2035 Aventura 1922 Broksonic...
- Page 9 Harman/ Kardon 1915 Havermy 1917 Hello Kitty 1926 Hisense 1931 1995 2033 2058 2089 2090 2091 2092 2093 2126 2127 2128 2129 2130 2131 2172 2173 2174 2175 Hitachi 1994 1919 1967 1997 2000 Infnity 1915 Insignia 1970 1983 1927 1922 1995 2002 2024 2026 2030 20942095 2096 2097 2098 20992101 2102 2103 2104 21052106 2107 2108 2109 21102111 2132 2133 2134 2135 2316 2137 2318 2139 2140 2141 2142 2143 2144 2145 2146 2147 2148 2149 2167 2176 Inteq...
- Page 10 Panasonic 1913 1924 1959 1973 1975 2045 PARK 2034 2041 Penney 1910 1921 1913 1916 1923 Petters 1979 Philco 1915 1922 1967 1997 2026 Philips 1915 1972 2020 2006 2018 2062 2063 Pioneer 1973 Polaroid 1934 1958 1977 1979 2001 2011 2012 2035 Portland 1926 1996 Prima...
- Page 11 Telefunken 1930 1923 TNCi 1912 Toshiba 1916 1921 1959 1980 2025 2028 1927 Victor 1914 Vidikron 1915 Vidtech 1923 Viewsonic 1946 1960 1964 1984 1991 1993 2005 2009 2029 2032 2046 Viore 2000 2034 2057 2112 21502151 2152 2153 2154 Vizio 2010 1946 2314 Wards...
- Page 12 CASTi 2048 Channel Master 2061 Coby 2083 Coship 2076 Daewoo 2053 Daytek 2048 Digital Stream 2047 Dish Network 2071 Echostar 2071 2060 2068 Goodmind 2068 Gridlink 2056 Insignia 1968 Lasonic 2056 Magnavox 1982 Memorex 2075 MicroGEM 2078 Philco 1982 2052 2069 Sansonic 2056 Sunkey...
- Page 13 Bright House 1965 2022 Cable One 1965 2022 CABLETENNA 0448 CABLEVIEW 0448 CABLEVISION 0252 1965 2022 1947 CENTURY 0748 Charter 1965 2022 2040 Cisco 2022 2027 CITIZEN 0748 COGECO 0752 COLOR VOICE 0848 0948 COMCAST 0752 1965 2022 2027 2082 2254 2275 0049 0149 COMTRONICS CONTEC...
- Page 14 0350 0249 0550 PACE 0854 1965 2022 2027 2257 2260 2274 PANASONIC 0647 0452 2027 2255 2259 2275 PARAGON 0250 0450 2255 PHILIPS 0748 0549 0150 0650 0750 0850 2264 2272 PHILIPS- 0152 0055 MAGNAVOX PIONEER 0051 0252 0449 0950 2022 2267 2274 Proscan 2286 PULSAR...
- Page 15 Torx 2256 TOSHIBA 0250 2255 TV86 0350 UNIKA 0448 0548 0748 0747 UNITED CABLE UNIVERSAL 0054 0448 0548 0648 0748 0851 VIDEOWAY 0052 VIEWSTAR 0149 0150 0350 0651 VIDEO TECH 0656 VIDEOTRON 0252 2022 WideOpenWest ZENITH 0154 0250 0748 0753 0853 0951 0953 2255 2266 2268 ZENITH NETWORK 0354...
- Page 16 0464 0862 KENWOOD 0461 LUXOR 0561 MAGNAVOX 0259 0862 0565 MACOM 0661 MITSUBISHI 0765 0864 0465 0564 0664 0362 MOTOROLA 0466 0463 NORSTAT 0761 PACE 0063 0163 0266 PANSAT 0060 1406 PANASONIC 0264 0260 0261 PRIMESTAR 0364 0665 PHILIPS 0259 0862 0763 0564 0664 0864 0465 0765 0565 0362 PHILIPS- MAGNAVOX 0259 0862 0565...
- Page 17 98 [TV]/[STB] _ INDIVIDUAL PUNCH-THROUGH INDIVIDUAL KEY UNLOCK 900 _ DEVICE MODE LOCK 9999 RESET TO 1-DEVICE MODE 9761 RESET TO 2-DEVICE MODE 9762 RESET TO FACTORY 9760...
