Backup Camera
Please read thoroughly before starting installation and check that kit contents are complete.
Items Included in the Kit:
9002-2773 module
Camera/power input T-harness
LCD Video cable
IR eye harness (not used)
RGB harness (not used)
Remote
These instructions
Safety Precautions:
• Work in well ventilated area that is clear of obstructions.
• Secure vehicle with tire chucks in both front and rear of tires.
• Turn vehicle accessories OFF and ensure ignition key is in OFF position.
• Wear safety goggles and snug fitting clothes.
• Use tools only for their intended purpose and which are in good repair.
• Only perform this task if confidence, skill, and physical ability permit.

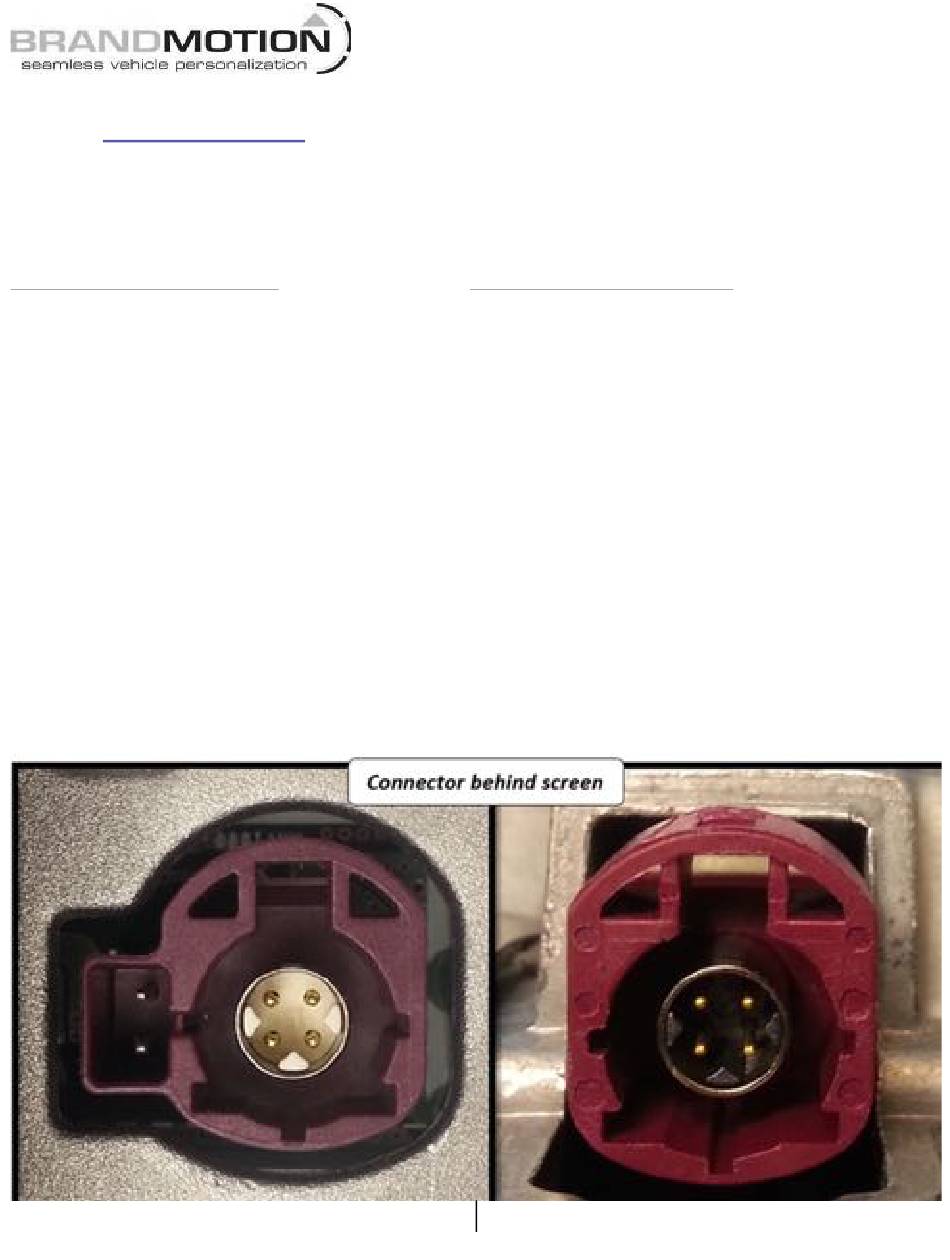

THIS CONNECTOR REQUIRES 9002-2773
Interface for BMW with Dynamic Park Lines
(Kit # 9002-2773)
Tools & Supplies Needed:
INSTALLATION!INSTRUCTIONS!
Wire strippers
Wire cutters
Electrical tape
Zip ties
Plastic panel removal tools
Screwdriver
Socket set
Wrench
Torx driver set
THIS CONNECTOR REQUIRES 9002-2774
