Please read thoroughly before starting installation and check that kit contents are complete.
Items Included in the Kit:

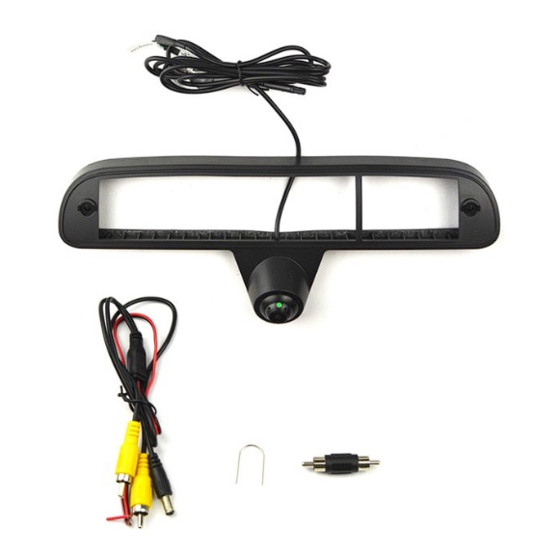

Cargo lamp bracket w/camera
Chassis harness
Power/video harness
These instructions
Safety Precautions:
• Work in well ventilated area that is clear of obstructions.
• Secure vehicle with tire chucks in both front and rear of tires.
• Turn vehicle accessories OFF and ensure ignition key is in OFF position.
• Wear safety goggles and snug fitting clothes.
• Use tools only for their intended purpose and which are in good repair.
• Only perform this task if confidence, skill, and physical ability permit.
NOTE: We strive to provide accurate and up-to-date installation instructions. For the latest full color
instructions, as well as an installation video, please visit www.brandmotion.com
FLTW-7629 Instructions 11-23-16.docx
Third Brake Light Cargo Camera
1999-2016 Ford F-250, 2011-2016 Ford F-350
(Kit # FLTW-7629)
Tools & Supplies Needed:
Wire strippers
Wire cutters
Electrical tape
Zip ties
Plastic panel removal tools
Digital Volt Meter / BCM safe test light
Screwdriver
Socket set/wrench
Torx bits
Page 1 of 3
