Please read thoroughly before starting installation and check that kit contents are complete.
Items Included in the Kit:

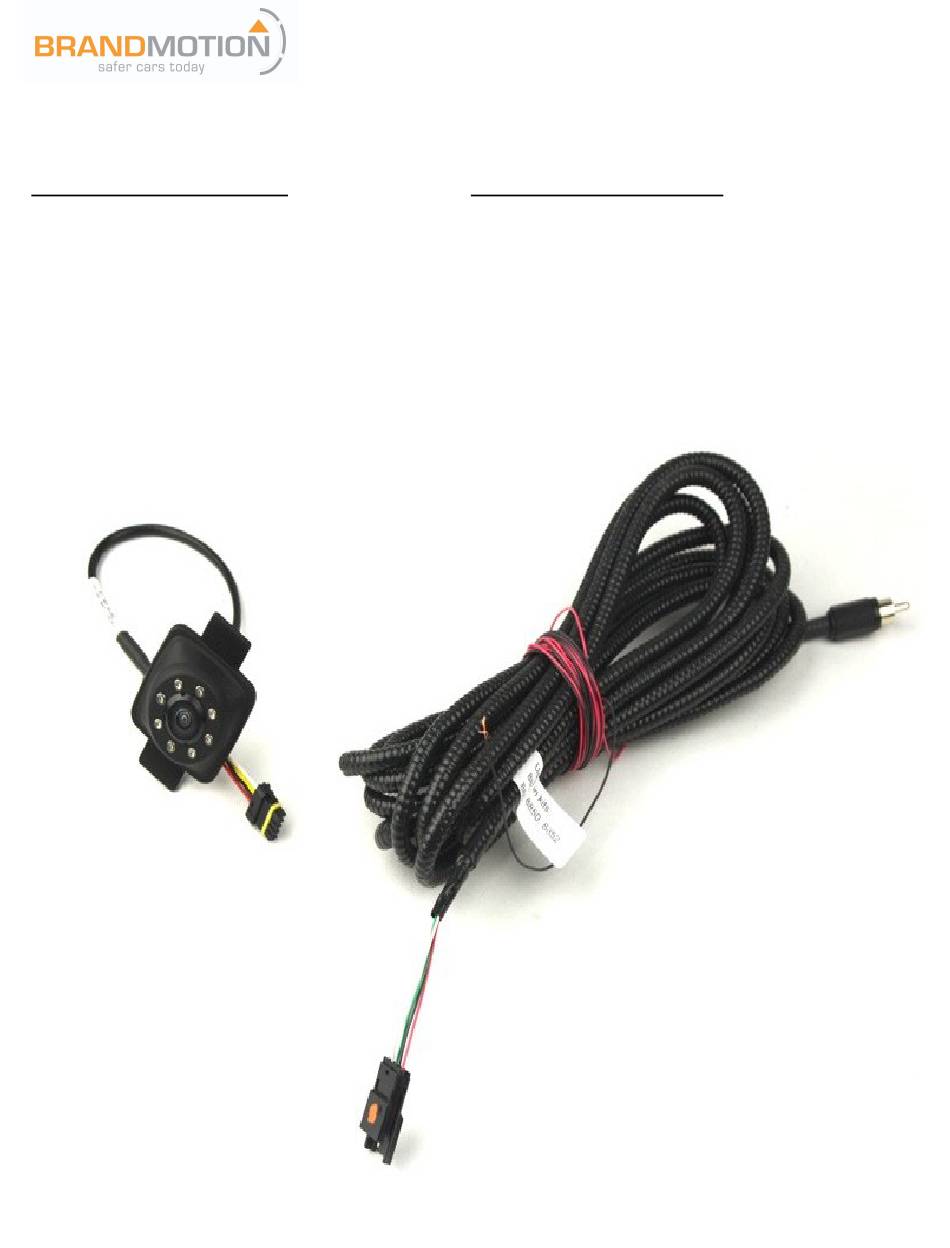

Underhood power/video harness
Front bumper mount with attached camera
Mounting bracket
2 Allen screws for mounting bracket.
1 Bottle of Z-tech
Template of camera
These instructions
9002-8850 instructions 01-25-2017.docx
SummitView Ô Rock Camera
(Kit # 9002-8851)
Tools & Supplies Needed:
1
Page
of
INSTALLATION INSTRUCTIONS
Wire cutters
Wire strippers
Drill
1 ⅜" Bimetal hole saw
Metric Allen wrenches
Zip ties
Digital Multimeter/Computer safe test light
Electrical tape
3
GS
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for BrandMotion SummitView 9002-8851
Summary of Contents for BrandMotion SummitView 9002-8851
- Page 1 INSTALLATION INSTRUCTIONS SummitView Ô Rock Camera (Kit # 9002-8851) Please read thoroughly before starting installation and check that kit contents are complete. Items Included in the Kit: Tools & Supplies Needed: Underhood power/video harness Wire cutters Front bumper mount with attached camera Wire strippers Mounting bracket Drill...
-
Page 2: Safety Precautions
● Only perform this task if confidence, skill, and physical ability permit. NOTE: We strive to provide accurate and up-to-date installation instructions. For the latest full color instructions, as well as an installation video, please visit www.brandmotion.com Determine the best location for the camera to be mounted to the vehicle. - Page 3 INSTALLATION INSTRUCTIONS From the back side of the camera mount attach the mounting bracket with the (2) 2.5mm Allen screws. Do not tighten the screws all the way until the view can be checked. Plug in the water proof camera connector into the power harness. Make sure the connector is going the proper way and that it plugs in all the way.
